NYY-O / NYY-J Cable

What is NYY Cable?

The NYY cable a kind of PVC insulated PVC sheathed cable, includes NYY-J and NYY-O cables along with a voltage rating of 600/1000V. which could be produced as single-core cables up to 1.5-- 10 sq mm and as multi-strands up to 10-- 300 sq mm. NYY cable is widely used European power and control cables designed for fixed wiring installation.

NYY Cable Construction

Conductor: RE: Class 1 solid copper conductor/ RM: Class 2 stranded copper conductor
Insulation: PVC (Polyvinyl Chloride).
Filler: PVC (Polyvinyl Chloride).
Sheath: PVC (Polyvinyl Chloride).
Core Identification:.
3 core: Green/Yellow Blue Brown.
4 core: Green/Yellow Brown Black Grey.
5 core: Green/Yellow Brown Black Grey Blue.
7 core and above: Black with White numbers.
Sheath Colour: Black.

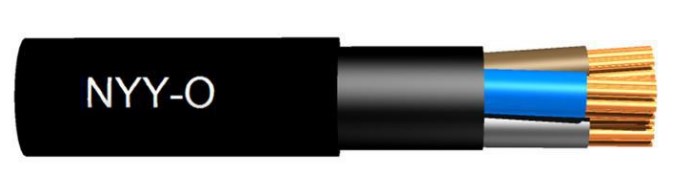

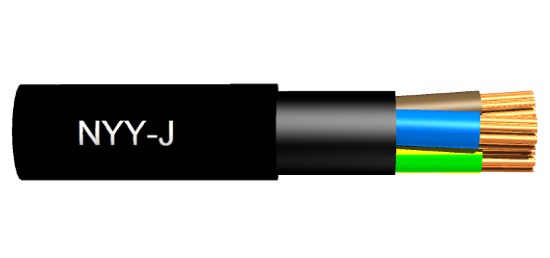

The different between NYY-J and NYY-O cables:

The main difference between NYY-J and NYY-O cable is that NYY-O has no green/yellow earth wire. NYY cables can be safely deployed as power cables in most applications where mechanical stresses are not anticipated-- indoors, outdoors, direct burial underground, in concrete, or submerged in water. When NYY cables are required to abide by the UK wiring regulations BS7671 for burial in the ground, they require installation in a conduit or duct to ensure protection against mechanical damage. They are not suitable for installation in concrete which is shaken, vibrated or compressed. These black NYY cables have a UV-stabilised outersheath making them suitable for direct exposure to sunlight. They have an operating temperature range of -15 oC to +70 oC when fixed and -5 oC to +50 oC when flexed.

NYY Cable specifications

NYY-O 0.6/1kV Cable Datasheet

Codename	No. Of Cores	Size Cross Section mm²	Conductor resistance Ohms/km	Perm. Current rating open air A	Perm. Current rating burried A	Specific inductivity mH/km	Max. outer diameter mm	Nominal overall cable weight kg/km
NYY-O 1x1.5	1	1.5	12.1	19	27	-	7	63
NYY-O 1x2.5		2.5	7.41	28	39	-	7.9	105
NYY-O 1x4		4	4.61	37	50	0.459	9.1	110
NYY-O 1x6		6	3.08	47	62	0.431	9.5	130
NYY-O 1x10		10	1.83	64	83	0.399	10.2	180
NYY-O 1x16		16	1.15	84	107	0.371	11.2	240
NYY-O 1x25		25	0.727	114	138	0.35	12.2	350
NYY-O 1x35		35	0.524	139	164	0.333	13.2	460
NYY-O 1x50		50	0.387	169	195	0.325	15.4	600
NYY-O 1x70		70	0.268	213	238	0.309	16.4	800
NYY-O 1x95		95	0.193	264	280	0.302	18.5	1100
NYY-O 1x120		120	0.153	307	325	0.294	20.5	1350
NYY-O 1x150		150	0.124	352	365	0.29	22.5	1650
NYY-O 1x185		185	0.0991	406	413	0.287	24.6	2000
NYY-O 1x240		240	0.0754	483	479	0.281	27.6	2600
NYY-O 1x300		300	0.0601	557	541	0.279	29.7	3200
NYY-O 1x400		400	0.047	646	614	0.275	33.8	4100
NYY-O 1x500		500	0.0366	747	693	0.272	38	5200
NYY-O 1x630		630	0.0283	858	777	0.271	42.5	6650
NYY-O 2x1.5	2	1.5	12.1	25	27	-	11	170
NYY-O 2x2.5		2.5	7.41	34	36	-	12	210
NYY-O 2x4		4	4.61	43	47	-	14	290
NYY-O 2x6		6	3.08	59	59	-	15.2	360
NYY-O 2x10		10	1.83	79	79	-	16.6	490
NYY-O 2x16		16	1.15	106	103	-	19	660
NYY-O 2x25		25	0.727		133	-	23	940
NYY-O 3x1.5	3	1.5	12.1	25	27	0.343	11.2	190
NYY-O 3x2.5		2.5	7.41	34	36	0.317	12.2	240
NYY-O 3x4		4	4.61	43	47	0.316	14.2	330
NYY-O 3x6		6	3.08	59	59	0.298	15.2	420
NYY-O 3x10		10	1.83	79	79	0.278	17.3	580
NYY-O 3x16		16	1.15	106	103	-	19.3	810
NYY-O 3x25		25	0.727	129	133	0.257	24.5	1300
NYY-O 3x35		35	0.524	157	159	0.248	22.6	1400
NYY-O 3x50		50	0.387	246	188	0.247	25.6	1800
NYY-O 3x95		95	0.193	326	280	0.238	33.8	3300
NYY-O 3x150		150	0.124	374	359	0.233	39.8	4900
NYY-O 3x185		185	0.0991		406	0.233	46	6500
NYY-O 4x1.5	4	1.5	12.1	19	27	0.366	12.2	220
NYY-O 4x2.5		2.5	7.41	25	36	0.34	13.2	290
NYY-O 4x4		4	4.61	34	47	0.339	15.3	400
NYY-O 4x6		6	3.08	43	59	0.321	16.3	510
NYY-O 4x10		10	1.83	59	79	0.301	18.3	720
NYY-O 4x16		16	1.15	79	103	0.285	21.4	1050
NYY-O 4x25		25	0.727	106	133	0.28	25.5	1600
NYY-O 4x35		35	0.524	129	159	0.271	27.7	1750
NYY-O 4x50		50	0.387	157	188	0.27	29.8	2300
NYY-O 4x70		70	0.268	199	232	0.262	33.8	3100
NYY-O 4x95		95	0.193	246	280	0.261	38.9	4200
NYY-O 4x120		120	0.153	285	318	0.256	42	5200
NYY-O 4x150		150	0.124	326	359	0.256	47	6400
NYY-O 4x185		185	0.0991	374	406	0.256	52	8050
NYY-O 4x240		240	0.0754	445	473	0.254	58	11000
NYY-O 5x1.5	5	1.5	12.1	25	27	0.375	13.2	350
NYY-O 5x2.5		2.5	7.41	34	36	0.349	14.2	480
NYY-O 5x4		4	4.61	43	47	0.348	16.3	610
NYY-O 5x6		6	3.08	59	59	0.33	18.3	880
NYY-O 5x10		10	1.83	79	79	0.31	20.4	1250
NYY-O 5x16		16	1.15	106	103	0.294	22.4	1250
NYY-O 5x25		25	0.727	129	133	0.289	27.5	1950
NYY-O 5x35		35	0.524	157	159	0.285	33.6	2400
NYY-O 5x50		50	0.387	199	188	0.28	40	3500
NYY-O 5x70		70	0.268	246	232	0.275	42.4	4450
NYY-O 5x95		95	0.193	285	280	0.273	50	6134
NYY-O 5x120		120	0.153		318	0.27	51.3	7438

NYY-J 0.6/1kV Cable Datasheet

Codename	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	CONDUCTOR TYPE	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NYY-J 1x2.5	1	2.5	RE	0.8	1.4	6.15	62
NYY-J 1x4	1	4	RE	1	1.4	7.5	85
NYY-J 1x6	1	6	RE	1	1.4	7.5	108
NYY-J 1x10	1	10	RM	1	1.4	8.6	155
NYY-J 1x16	1	16	RM	1	1.4	9.6	218
NYY-J 1x25	1	25	RM	1.2	1.4	11.1	318
NYY-J 1x35	1	35	RM	1.2	1.4	12.1	414
NYY-J 1x50	1	50	RM	1.4	1.4	13.7	552
NYY-J 1x70	1	70	RM	1.4	1.4	15.5	750
NYY-J 1x95	1	95	RM	1.6	1.5	17.6	1020
NYY-J 1x120	1	120	RM	1.6	1.6	19.3	1259
NYY-J 1x150	1	150	RM	1.8	1.6	21	1546
NYY-J 1x185	1	185	RM	2	1.7	23.2	1913
NYY-J 1x240	1	240	RM	2.2	1.8	26.2	2471
NYY-J 1x300	1	300	RM	2.4	2	29.2	3097
NYY-J 2x1.5	2	1.5	RE	0.8	1.8	10	147
NYY-J 2x2.5	2	2.5	RE	0.8	1.8	10.7	179
NYY-J 2x4	2	4	RM	1	1.8	13	268
NYY-J 2x6	2	6	RM	1	1.8	14.2	337
NYY-J 2x10	2	10	RM	1	1.8	16.2	472
NYY-J 2x16	2	16	RM	1	1.8	18.2	644
NYY-J 3x1.5	3	1.5	RE	0.8	1.8	10.4	166
NYY-J 3x2.5	3	2.5	RE	0.8	1.8	11.3	212
NYY-J 3x4	3	4	RE	1	1.8	13.1	299
NYY-J 3x6	3	6	RM	1	1.8	15	402
NYY-J 3x10	3	10	RM	1	1.8	17.1	570
NYY-J 3x16	3	16	RM	1	1.8	19.2	789
NYY-J 3x25	3	25	RM	1.2	1.8	22.1	1141
NYY-J 3x35	3	35	RM	1.2	1.8	24.1	1462
NYY-J 3x50	3	50	RM	1.4	1.8	27.6	1964
NYY-J 3x70	3	70	RM	1.6	2.1	36.3	3635
NYY-J 3x95	3	95	RM	1.6	2.2	40	4488
NYY-J 4x1.5	4	1.5	RE	0.8	1.8	11.6	198
NYY-J 4x2.5	4	2.5	RE	0.8	1.8	12.1	252
NYY-J 4x4	4	4	RM	1	1.8	15.1	391
NYY-J 4x6	4	6	RM	1	1.8	16.5	465
NYY-J 4x10	4	10	RM	1	1.8	18.6	702
NYY-J 4x16	4	16	RM	1	1.8	21.1	992
NYY-J 4x25	4	25	RM	1.2	1.8	24.2	1431
NYY-J 4x35	4	35	RM	1.2	1.8	26.6	1861
NYY-J 4x50	4	50	RM	1.4	1.9	30.9	2535
NYY-J 4x70	4	70	RM	1.4	2.1	35.1	3441
NYY-J 4x95	4	95	RM	1.6	2.2	40.4	4691
NYY-J 4x120	4	120	RM	1.6	2.4	44.2	5757
NYY-J 4x150	4	150	RM	1.8	2.5	48.5	7095
NYY-J 4x185	4	185	RM	2	2.7	53.9	8810
NYY-J 4x240	4	240	RM	2.2	2.9	61.1	11400
NYY-J 5x1.5	5	1.5	RE	10.8	1.8		232
NYY-J 5x2.5	5	2.5	RE	0.8	1.8		302
NYY-J 5x4	5	4	RM	1	1.8		477
NYY-J 5x6	5	6	RM	1	1.8		618
NYY-J 5x10	5	10	RM	1	1.8		853
NYY-J 5x16	5	16	RM	1	1.8		1212
NYY-J 5x25	5	25	RM	0.8	1.8		280
NYY-J 7x1.5	7	1.5	RE	1	1.8		477
NYY-J 7x2.5	7	2.5	RE	0.8	1.8		368
NYY-J 12x1.5	12	1.5	RE	0.8	1.8		475
NYY-J 12x2.5	12	2.5	RE	0.8	1.8		628
NYY-J 14x1.5	14	1.5	RE	0.8	1.8		515
NYY-J 19x1.5	19	1.5	RE	0.8	1.8		648
NYY-J 19x2.5	19	2.5	RE	0.8	1.8		843
NYY-J 27x1.5	27	1.5	RE	0.8	1.8		895

NYY Cable why choose HuaDong?

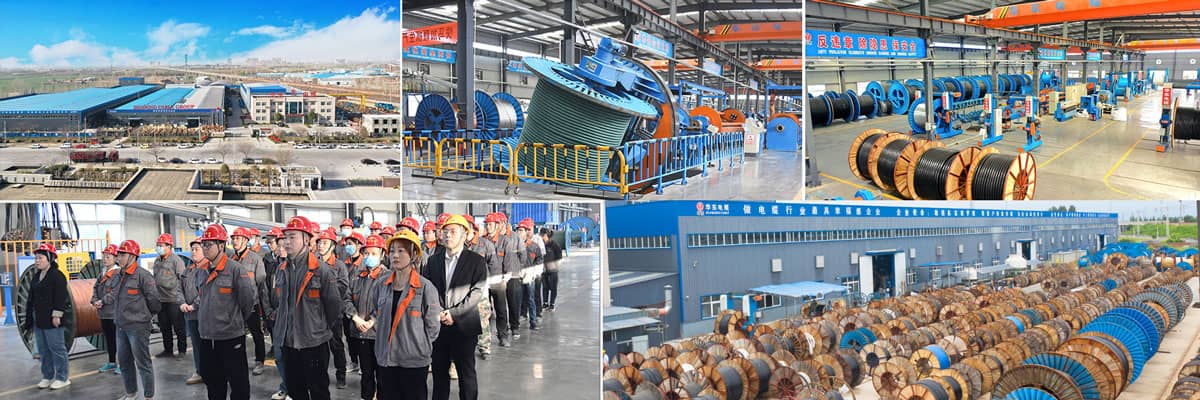

Huadong Cable Group as a special NYY Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in NYY Cable, but also we have 15 senior engineers, we can free design the NYY Cable size according to client’s requirement.
Our NYY Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
