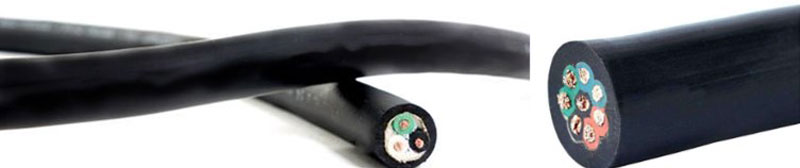

PNCT Cable


PNCT Cable Specifications


Voltage:0.6/1kv
Conductor:Copper/tinned copper
Insulation:Rubber/EPR
Cores:1,2, 3, 4, 5, 6 7 core
Standard:IEC/VDE etc
Packaging:Iron or Wooden Drum
Application: It’s suitable for use in both outdoor and wet condition. The cables are ideal for lightweight hand and workshop tools while the other groups are suitable for increasing higher levels of stress and heavy duty equipment.


600V 2PNCT Cable Details


No. of Cores Conductor
Size (mm2)
Construction (No./mm) Outer Diameter (mm) Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance
(20 degrees C) (Ω/km)
Min. Insulation Resistance (20 degrees C)
(MΩ・km)
Min. Permissible Bending Radius (mm)
1 8 50/0.45 3.7 1 1.7 9.2 150 2.45 400 60
14 88/0.45 4.9 1 1.8 11 220 1.39 300 70
22 7/20/0.45 7 1.2 1.9 13.5 340 0.892 300 90
30 7/27/0.45 8.1 1.2 2 14.5 425 0.661 300 90
38 7/34/0.45 9.1 1.2 2.1 15.5 515 0.525 200 100
50 19/16/0.45 10.4 1.5 2.2 18 660 0.411 200 110
60 19/20/0.45 11.6 1.5 2.3 19 790 0.329 200 120
80 19/27/0.45 13.5 2 2.5 22 1080 0.243 300 140
100 19/34/0.45 15.2 2 2.6 24 1310 0.193 200 150
125 19/42/0.45 16.8 2 2.6 26 1550 0.156 200 160
150 27/34/0.45 18.7 2 2.7 27 1760 0.136 200 170
200 37/34/0.45 21.2 2.5 3 32 2410 0.0993 200 200
250 37/42/0.45 23.6 2.5 3.2 35 2920 0.0803 200 210
2 0.75 30/0.18 1.1 0.8 1.7 8.9 105 26.6 500 60
1.25 50/0.18 1.5 0.8 1.7 9.7 125 16 500 60
2 37/0.26 1.8 0.8 1.8 10.5 155 10.2 500 70
3.5 45/0.32 2.5 0.8 1.9 12.5 220 5.54 400 80
5.5 70/0.32 3.1 1 2 14.5 315 3.56 400 90
8 50/0.45 3.7 1 2.1 16 395 2.52 400 100
14 88/0.45 4.9 1 2.2 18.5 590 1.43 300 120
22 7/20/0.45 7 1.2 2.6 24 950 0.919 300 150
30 7/27/0.45 8.1 1.2 2.7 26 1190 0.681 300 160
38 7/34/0.45 9.1 1.2 2.9 29 1440 0.541 200 180
50 19/16/0.45 10.4 1.5 3.1 33 1810 0.423 200 200
60 19/20/0.45 11.6 1.5 3.3 36 2160 0.339 200 220
80 19/27/0.45 13.5 2 3.7 42 2980 0.25 300 260
100 19/34/0.45 15.2 2 3.9 45 3600 0.199 200 270
3 0.75 30/0.18 1.1 0.8 1.7 9.3 115 26.6 500 60
1.25 50/0.18 1.5 0.8 1.8 10.5 145 16 500 70
2 37/0.26 1.8 0.8 1.8 11 180 10.2 500 70
3.5 45/0.32 2.5 0.8 1.9 13 260 5.54 400 80
5.5 70/0.32 3.1 1 2 15.5 380 3.56 400 100
8 50/0.45 3.7 1 2.1 17 480 2.52 400 110
14 88/0.45 4.9 1 2.3 20 735 1.43 300 120
22 7/20/0.45 7 1.2 2.7 26 1,180 0.919 300 160
30 7/27/0.45 8.1 1.2 2.8 28 1,480 0.681 300 170
38 7/34/0.45 9.1 1.2 3 31 1810 0.541 200 190
50 19/16/0.45 10.4 1.5 3.3 36 2310 0.423 200 220
60 19/20/0.45 11.6 1.5 3.4 38 2750 0.339 200 230
80 19/27/0.45 13.5 2 3.8 45 3790 0.25 300 270
100 19/34/0.45 15.2 2 4.1 49 4620 0.199 200 300
125 19/42/0.45 16.8 2 4.2 52 5500 0.161 200 320
150 27/34/0.45 18.7 2 4.4 55 6230 0.14 200 330
4 0.75 30/0.18 1.1 0.8 1.8 10.5 140 26.6 500 70
1.25 50/0.18 1.5 0.8 1.8 11.5 175 16 500 70
2 37/0.26 1.8 0.8 1.9 12.5 220 10.2 500 80
3.5 45/0.32 2.5 0.8 2 14 320 5.54 400 90
5.5 70/0.32 3.1 1 2.1 17 465 3.56 400 110
8 50/0.45 3.7 1 2.2 18.5 590 2.52 400 120
14 88/0.45 4.9 1 2.4 22 910 1.43 300 140
22 7/20/0.45 7 1.2 2.8 28 1,490 0.919 300 170
30 7/27/0.45 8.1 1.2 3 31 1,880 0.681 300 190
38 7/34/0.45 9.1 1.2 3.2 34 2,290 0.541 200 210
50 19/16/0.45 10.4 1.5 3.5 39 2,940 0.423 200 240
60 19/20/0.45 11.6 1.5 3.7 42 3,530 0.339 200 260
80 19/27/0.45 13.5 2 4.1 50 4,860 0.25 300 300
100 19/34/0.45 15.2 2 4.4 54 5,920 0.199 200 330
125 19/42/0.45 16.8 2 4.5 58 7,080 0.161 200 350
150 27/34/0.45 18.7 2 4.7 61 8,020 0.14 200 370
5 0.75 30/0.18 1.1 0.8 1.8 11 160 26.6 500 70
1.25 50/0.18 1.5 0.8 1.9 12.5 210 16 500 80
2 37/0.26 1.8 0.8 1.9 13 255 10.2 500 80
3.5 45/0.32 2.5 0.8 2.1 15.5 385 5.54 400 100
5.5 70/0.32 3.1 1 2.2 18.5 560 3.56 400 120
8 50/0.45 3.7 1 2.3 21 720 2.52 400 130
14 88/0.45 4.9 1 2.6 25 1,130 1.43 300 150
22 7/20/0.45 7 1.2 3 31 1,810 0.919 300 190
30 7/27/0.45 8.1 1.2 3.2 35 2,290 0.681 300 210
38 7/34/0.45 9.1 1.2 3.4 38 2,800 0.541 200 230
6 0.75 30/0.18 1.1 0.8 1.8 12 185 26.6 500 80
1.25 50/0.18 1.5 0.8 1.9 13.5 245 16 500 90
2 37/0.26 1.8 0.8 2 14.5 305 10.2 500 90
3.5 45/0.32 2.5 0.8 2.1 17 455 5.54 400 110
5.5 70/0.32 3.1 1 2.3 20 675 3.56 400 120
8 50/0.45 3.7 1 2.4 22 865 2.52 400 140
14 88/0.45 4.9 1 2.7 27 1,350 1.43 300 170
22 7/20/0.45 7 1.2 3.1 34 2,160 0.919 300 210
7 0.75 30/0.18 1.1 0.8 1.9 13 215 26.6 500 80
1.25 50/0.18 1.5 0.8 2 14.5 285 16 500 90
2 37/0.26 1.8 0.8 2.1 15.5 360 10.2 500 100
3.5 45/0.32 2.5 0.8 2.2 18 530 5.54 400 110
8 0.75 30/0.18 1.1 0.8 2 14 250 26.6 500 90
1.25 50/0.18 1.5 0.8 2 15.5 325 16 500 100
2 37/0.26 1.8 0.8 2.1 17 410 10.2 500 110
3.5 45/0.32 2.5 0.8 2.3 19.5 615 5.54 400 120
10 0.75 30/0.18 1.1 0.8 2.1 16.5 305 26.6 500 100
1.25 50/0.18 1.5 0.8 2.2 18 395 16 500 110
2 37/0.26 1.8 0.8 2.3 19.5 500 10.2 500 120
3.5 45/0.32 2.5 0.8 2.5 23 745 5.54 400 140
12 0.75 30/0.18 1.1 0.8 2.1 17 335 26.6 500 110
1.25 50/0.18 1.5 0.8 2.2 18.5 440 16 500 120
2 37/0.26 1.8 0.8 2.3 20 560 10.2 500 120
3.5 45/0.32 2.5 0.8 2.5 24 845 5.54 400 150
16 0.75 30/0.18 1.1 0.8 2.2 18.5 415 26.6 500 120
1.25 50/0.18 1.5 0.8 2.3 21 550 16 500 130
2 37/0.26 1.8 0.8 2.4 22 705 10.2 500 140
3.5 45/0.32 2.5 0.8 2.7 26 1,080 5.54 400 160
20 0.75 30/0.18 1.1 0.8 2.3 21 505 26.6 500 130
1.25 50/0.18 1.5 0.8 2.5 23 680 16 500 140
2 37/0.26 1.8 0.8 2.6 25 870 10.2 500 150
3.5 45/0.32 2.5 0.8 2.8 29 1,340 5.54 400 180
24 0.75 30/0.18 1.1 0.8 2.4 22 600 26.6 500 140
1.25 50/0.18 1.5 0.8 2.6 25 810 16 500 150
2 37/0.26 1.8 0.8 2.7 27 1,050 10.2 500 170
3.5 45/0.32 2.5 0.8 3 32 1,610 5.54 400 200
30 0.75 30/0.18 1.1 0.8 2.5 24 715 26.6 500 150
1.25 50/0.18 1.5 0.8 2.7 27 965 16 500 170
2 37/0.26 1.8 0.8 2.8 29 1,250 10.2 500 180
3.5 45/0.32 2.5 0.8 3.1 34 1,930 5.54 400 210

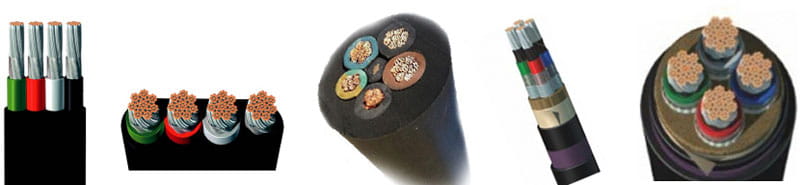

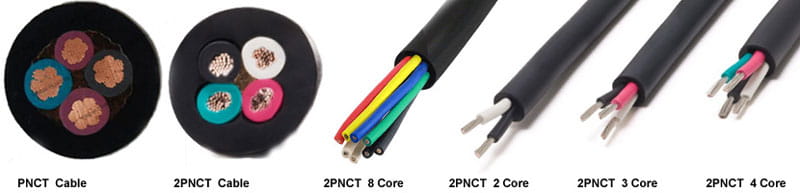

PNCT Cable structure?


Generally speaking, the conductor of 2pnct cable is bare or tinned stranded copper. However, you can choose the suitable conductor materials for your projects according to the actual requirements. In order to meet the different needs of our customers, Huadong Cable Group supplies many 2pnct cable


PNCT Cable Sheath


The insulation material of pnct cable is Ethylene-propylene rubber (EPR). And we choose the Chlorinated polyethylene rubber (CPE) as its outer jacket. Form the materials of pnct cable insulation and jacket, we can know the cable is very flexible and has good abrasion resistant property. That means you can even choose pnctf cable for complex industry environment.




For the best PNCT Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
