U1000 RVFV Cable

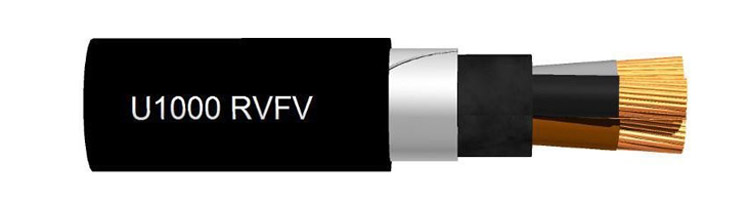

What is U1000 RVFV Cable?

The U1000 RVFV (also known as XAV cable) with XLPE insulation and PVC external sheath can be utilized with all low voltage power installations. The U-1000 RVFV cables are offered with conductors across a wide cross-sectional area size - from 1.5 to 630 sq mm, from 1 to 5 conductors. The U-1000 RVFV cables are constructed with additional two layers of steel tape armouring and suitable for direct burial without additionnal protection or for installation on cables trays or in ducts where mechanical protection is necessary.

U1000 RVFV Cable Construction:

Conductor:	Bare copper
Conductor screen:	Semi conductive extruded layer
Insulation:	XPLE, cross linked polyethylene
Armour:	Double Aluminium Tape for single core cables
Outer sheath:	PVC, (Polyvinyl Chloride)
Rated voltage(Uo/U):	600/1000V

U1000 RVFV Cable Specification:

Two Cores U1000 RVFV Cable Spec:

Code Name	Size Cross-Section in mm²	Voltage drop, single phase V/A.km	Max. outer diameter mm	Perm. Current rating open air A	Perm. Current rating burried A	Nominal overall cable weight kg/km
U1000 RVFV 2X1.5	1.5	24.8	13	26	37	215
U1000 RVFV 2X2.5	2.5	14.8	14	36	48	249
U1000 RVFV 2X4	4	9.2	15.5	49	63	309
U1000 RVFV 2X6	6	6.2	16.5	63	80	386
U1000 RVFV 2X10	10	3.7	18.5	86	104	515
U1000 RVFV 2X16	16	2.4	20.5	115	136	709
U1000 RVFV 2X25	25	1.6	24.5	149	173	1045

Three Cores U1000 RVFV Cable Spec:

Code Name	Size Cross-Section in mm²	Voltage drop, single phase V/A.km	Max. outer diameter mm	Perm. Current rating open air A	Perm. Current rating burried A	Nominal overall cable weight kg/km
U1000 RVFV 3X6	6	5.4	17.5	54	66	447
U1000 RVFV 3X10	10	3.2	19	75	87	624
U1000 RVFV 3X16	16	2.11	22	100	113	849
U1000 RVFV 3X25	25	1.37	26	127	144	1260
U1000 RVFV 3X35	35	1	29	158	174	1633
U1000 RVFV 3X50	50	0.76	32.5	192	206	2110
U1000 RVFV 3X70	70	0.55	37.5	246	254	2817
U1000 RVFV 3X95	95	0.42	43.5	298	301	4190
U1000 RVFV 3X120	120	0.35	47.5	346	343	5176
U1000 RVFV 3X150	150	0.3	53	395	387	6264
U1000 RVFV 3X185	185	0.25	58	450	434	7642
U1000 RVFV 3X185	185	0.25	59	450	434	8366
U1000 RVFV 3X240	240	0.21	66	538	501	10756
U1000 RVFV 3X240	240	0.21	72.5	538	501	9687

Three Cores U1000 RVFV Cable with Green/Yellow Spec:

Code Name	Size Cross-Section in mm²	Voltage drop, single phase V/A.km	Max. outer diameter mm	Perm. Current rating open air A	Perm. Current rating burried A	Nominal overall cable weight kg/km
U1000 RVFV 3G1.5	1.5	24.8	13.5	23	31	233
	1.5	24.8	13.5	23	31	244
U1000 RVFV 3G2.5	2.5	14.8	14.5	31	41	274
	2.5	15.2	14.5	31	41	299
U1000 RVFV 3G4	4	9.2	16	42	53	352
U1000 RVFV 3G6	6	6.2	17.5	54	66	447
U1000 RVFV 3G10	10	3.7	19	75	87	633
U1000 RVFV 3G16	16	2.4	22	100	113	850
U1000 RVFV 3G25	25	1.6	26	127	144	1260

Fore Cores U1000 RVFV Cable Spec:

Code Name	Size Cross-Section in mm²	Voltage drop, single phase V/A.km	Max. outer diameter mm	Perm. Current rating open air A	Perm. Current rating burried A	Approx. weight [kg/km]
U1000 RVFV 4X1.5	1.5	21.5	14.5	23	31	258
U1000 RVFV 4X2.5	2.5	12.8	15.5	31	41	321
U1000 RVFV 4X4	4	8	17	42	53	411
U1000 RVFV 4X6	6	5.4	18.5	54	66	543
U1000 RVFV 4X10	10	3.2	20.5	75	77	746
U1000 RVFV 4X16	16	2.11	23.5	100	113	1052
U1000 RVFV 4X25	25	1.37	28	127	144	1588
U1000 RVFV 4X35	50	0.76	35.5	192	206	2620
U1000 RVFV 4X50	70	0.55	42.5	246	254	3908
U1000 RVFV 4X70	95	0.42	47.5	298	301	5250
U1000 RVFV 4X95	120	0.35	53	346	343	6502

Five Cores U1000 RVFV Cable Spec:

Code Name	Size Cross-Section in mm²	Voltage drop, single phase V/A.km	Max. outer diameter mm	Perm. Current rating open air A	Perm. Current rating burried A	Nominal overall cable weight kg/km
U1000 RVFV 5X1.5	1.5	21.5	15.5	23	31	301
U1000 RVFV 5X2.5	2.5	12.8	17	31	41	373
	2.5	12.8	17	31	41	379
U1000 RVFV 5X4	4	8	18.5	42	53	480
U1000 RVFV 5X6	6	5.4	20.5	54	66	638
U1000 RVFV 5X10	10	3.2	22.5	75	87	900
U1000 RVFV 5X16	16	2.11	26	100	113	1250
U1000 RVFV 5X25	25	1.37	31	127	144	1881
U1000 RVFV 5X35	35	1	35	157	170	2437

U1000 RVFV Cable meaning:

U-1000 RVFV NF-USE N° Usine S.Y+ n (x ou G) s mm²
n = number of cores
s = section in mm²
G = with Green-Yellow
x = without Green-Yellow

U1000 RVFV Cable Application

U1000 RVFV Cable distribution power cable for static application, mostly in ground, but also in water, inside facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Used in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

U1000 RVFV Cable why choose HuaDong?

As a professional U1000 RVFV Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our U1000 RVFV Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
