XHHW-2 Cable

XHHW-2 Cable Description:

XHHW-2 cable is a thermoset product. Rather than PVC or other plastics, XHHW-2 cable is XLPE (crosslinked polyethylene) insulation. XLPE is more resistant to chemicals, ozone, and abrasions. Because of the chemistries involved, modern XLPE is far less toxic than PVC in the event of fire. In most applications, thermosets are more flexible than thermoplastics and are more advantageous for projects where complex, close-spaced bends are required. Thermoset compounds utilize a curing process which causes a chemical reaction, allowing the polymers to cross-link. Once cured, the thermoset insulation retain their shape and will not remelt when heat is applied.

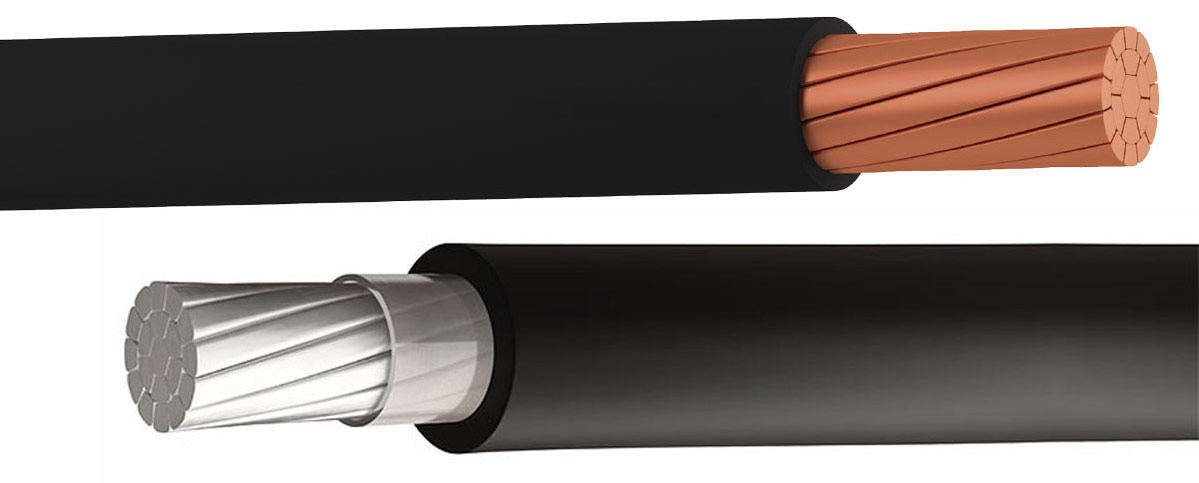

XHHW-2 Cable Construction:

Conductors: Bare copper or aluminum alloy
Insulation: Abrasion, heat, moisture, and flame resistant cross-linkedpolyethylene (XLPE) insulation in various color

XHHW-2 Cable Specifications:

Our XHHW-2 cable below ranges in size from 14 AWG (American Wiring Gauge) to 750 MCM (Thousand Circular Mils)


Conductor Size	No. of Strands	Conductor Diameter	Insulation Thickness	Overall Diameter	Net Weight	Ampacity @ 90°C
AWG/kcmil		inches	inches	inches	lbs/kft	amps
14	7	0.071	0.03	0.13	17	25
12	7	0.089	0.03	0.15	26	30
10	7	0.113	0.03	0.18	38	40
8	7	0.142	0.045	0.24	65	55
6	7	0.178	0.045	0.28	98	75
4	7	0.225	0.045	0.33	152	95
2	7	0.283	0.045	0.39	233	130
1	19	0.322	0.055	0.44	293	145
1/0	19	0.362	0.055	0.48	364	170
2/0	19	0.405	0.055	0.53	453	195
3/0	19	0.456	0.055	0.58	565	225
4/0	19	0.512	0.055	0.63	706	260
250	37	0.558	0.065	0.7	837	290
300	37	0.611	0.065	0.75	1004	320
350	37	0.661	0.065	0.8	1157	350
400	37	0.706	0.065	0.85	1322	380
400	61	0.706	0.065	0.85	1322	380
500	37	0.789	0.065	0.93	1634	430
600	61	0.866	0.08	1.04	1972	475
600	91	0.866	0.08	1.04	1972	475
750	61	0.968	0.08	1.15	2448	535

The Different Between XHHW-2 Cable And THHN Cable

THHN/THWN-2 is a thermoplastic product. It uses a thinner PVC insulation, which can lead to current leakage and dielectric breakdown in demanding circuits or from chemical or environmental exposure. The PVC insulation in THHN/THWN-2 emits a toxic smoke when burned and is less flexible at cold temperatures. However, it is lighter in weight and less expensive to manufacture.

THHN/THWN-2 CABLE:	XHHW-2 CABLE:
T = Thermoplastic	X = Cross-Linked Polyethylene (XLPE)
HH = High Heat Resistant	HH = High Heat Resistant
W = Water Resistant	W = Water Resistant
N = Nylon Jacket	(Not Required)
-2 = Temperature Rated 90°C Wet/Dry	-2 = Temperature Rated 90°C Wet/Dry

XHHW-2 Cable Application:

XHHW-2 cables are primarily used for power distribution in conduit or other recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code. The cable is suitable for use in wet or dry locations at temperatures not exceeding 90°C and is dual-rated for 600V or 1000V. 1/0AWG and larger are approved for cable tray use.
