Battery Cables

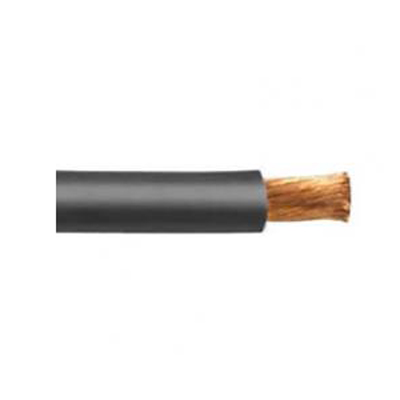

3/0 Gauge Battery Cables

3/0 Gauge Battery Cables

  • Brand Name: HuaDong Cable
  • Name: 3/0 gauge battery cables
  • Insulation: Polyvinyl Chloride (PVC)
  • Temperature: Rated –40°C (–58°F) to 80°C (176°F)
  • Conductor: Stranded Bare Copper
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 3/0 Gauge Battery Cables ?


3/0 gauge battery cables made from 3/0 AWG  copper battery cable with flexible fine stranding designed to outlast and outperform other battery cables on the market. 3/0 Gauge Battery Cables Made from 99.9% pure copper. Rated for low voltage and battery use up to 60 volts DC and 25 Volts AC.  The internal copper stranded core is highly conductive maximizing current flow while still being highly flexible.

3/0 Gauge Battery Cables is rated up to 600 Volts and is suitable for use in automotive applications, solar battery bank wiring, power inverter battery cables, marine battery cables and many other applications calling for a durable yet flexible battery cable.



3/0 Gauge Battery Cables Specifications


Size: 3/0
Conductor Strand: 1,596
Outside Diameter: 0.641 inches
Voltage: 60V DC (25 V AC) or less
Weight: 0.581 lbs per ft

Amperage Rating for 3/0 AWG Gauge Battery Cable with a 2% Voltage Drop at 12 Volts DC

Total System Amps @ 12 VDC 100 Amps 200 Amps 300 Amps 400 Amps 800 Amps
Length (ft) 38 19 14.8 9.5 4.75



3/0 Gauge Battery Cables Suitable Uses:


Automotive Battery Cables
Marine / Boat Battery Cables
Solar Battery Bank Array
Forklift Charging Cables
Power Inverter Cables
Welding Cable Leads
Golf Cart Battery Cables
Amplifier Wiring



3/0 Gauge Battery Cables why choose HuaDong?


Huadong Cable Group as a special Battery Cables factory in China, We not only have over 30 years of production experience and 15 years of export experience in Battery Cables, but also we have 15 senior engineers, they can free design the 3/0 Gauge Battery Cables size according to client’s requirement.

Our 3/0 Gauge Battery Cables export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.





For the best 3/0 Gauge Battery Cables price, Please feel free to leave your requirement, We will reply you in 12 hours.
