Type P Cable
What is Type P Cable?
Type P cable include type p marine cable, oil and gas power cable, type p power cable, type p shielded instrumentation cable, is a cable type addressed in IEEE 1580 Recommended Practice for Marine Cable for Use on Shipboard and Fixed or Floating Facilities. This Type P cable has been used for more than 40 years in harsh environments for offshore drilling operations where oil and mud are common.
As we all know, the oil, gas, and petrochemical industry is of vital importance around the globe. However, the oil, natural gas, and petrochemical industries face a series of challenges in obtaining and processing the installation environment and equipment required for their final products, including chemicals, oils, acids, and hydrocarbon containing slurries, as well as UV, salt water immersion, and mechanical and thermal stress. Especially all cables used in drilling applications must be able to withstand permanent vibration and mechanical stress, but some sites require greater resistance to oil, mud, or salt corrosion. This is where the type P cable is useful as a durable oil drilling rig cable that can handle challenges.
The IEEE 1580 Type P Cable specification covers all single and multi-conductor Type P cables intended for use on marine vessels, as well as fixed and floating offshore facilities. Cables under this standard are rated 300 V to 35 kV. Many of these cables also meet other industry standards, such as CSA, UL, and IEC.

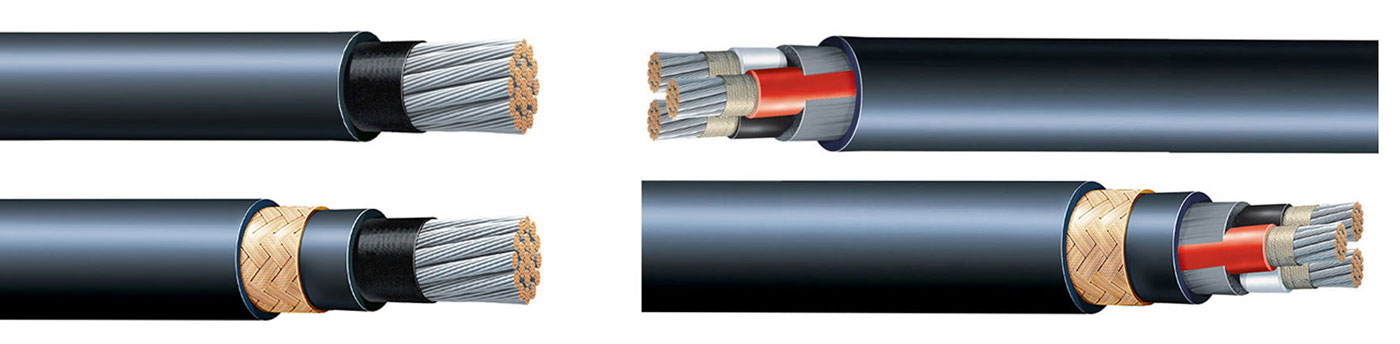

Type P Cable is typically constructed with Irradiated Cross-Linked Polyolefin insulation and is also often jacketed with CPE, increasing its resistance to sun, flame, chemicals, and oil. High strand counts can make the cable more flexible and resistant to vibration. Type P cable is available in armored and unarmored versions. Armored cable with a bronze braid construction offers 88 percent minimum coverage. Popular Type P brands are HuaDong Cable, inclede Type P Marine Cable, Oil And Gas Power Cable ect.
Our main Type P Cable:
Type P Cable Features
High strand count conductors make this product much more flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
Lower dielectric constant and higher insulation resistance reduces electrical losses.
Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
In a fire condition, nonchlorinated flame retardant system produces less toxic and less corrosive gases.
Flame retardant: IEC 332-3 Category A
Optional braid armor of bronze or tinned copper
Severe cold durability: exceeds CSA cold bend/cold impact (-40˚C/-35˚C).
Flame retardant: IEC 332-3 Category A
Suitable for use in Class I, Division 1 and Zone 1 environments (armored and sheathed).
Optional braid armor of bronze or tinned copper.
Type P Cable Standards
IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
Type P Insulation: IEEE 1580, UL 1309 TYPE X110
Type N Sheath: IEEE 1580, UL 1309
Flame Retardant: IEEE 1202 VW-1, IEC 60332-3 CAT. A
Fire Resistant: IEC 60331-1/2/21 (OPTIONAL)
Cold Bend/Impact: CSA 22.2 NO. 03 (-40°C/-35°C)
Type P Cable Application

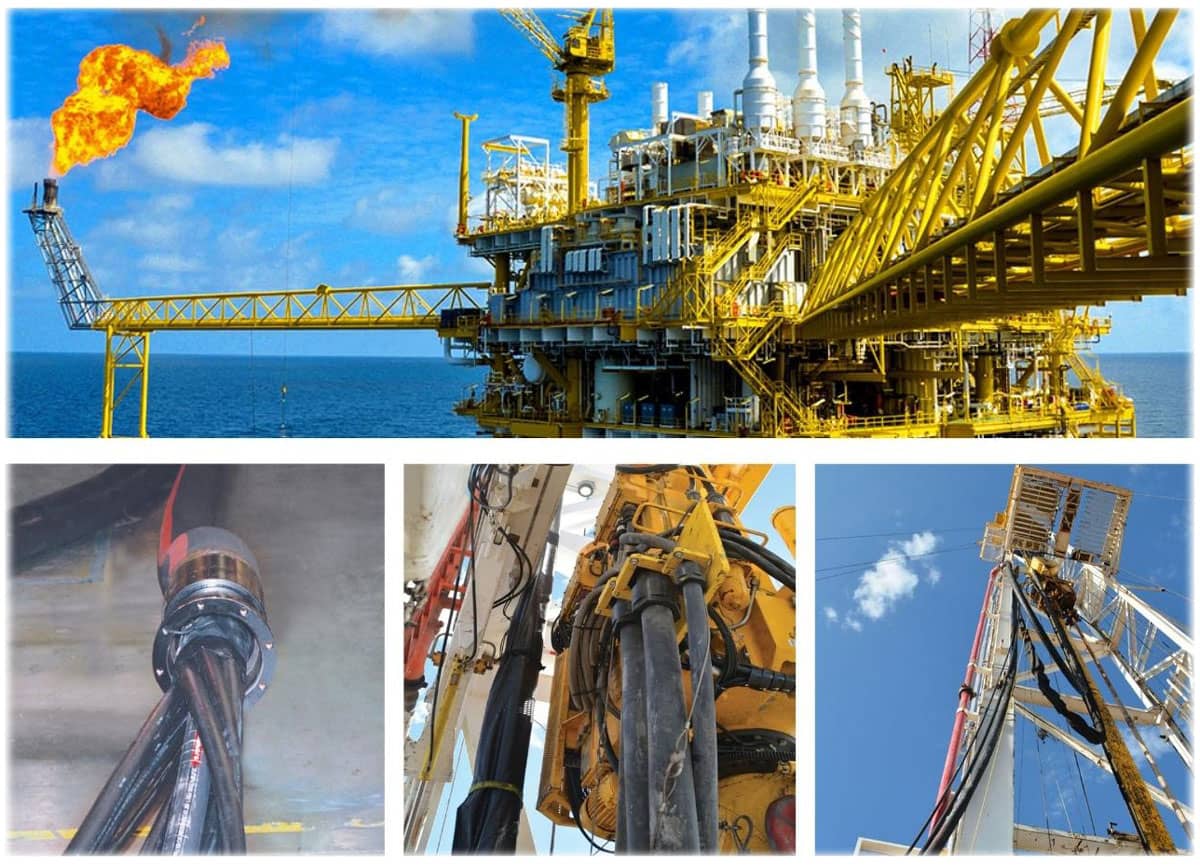

Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.
Type P Cable Why Choose Huadong
As a professional Type P Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our Type P Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
