C-PUR-HF D12YC11Y Cable

D12YC11Y cable is a low-voltage, screened, halogen-free round cable with a polyurethane (PUR) outer sheath. It is engineered primarily for dynamic industrial machinery, especially crane festoon systems and drag chains, where frequent bending and heavy mechanical stress occur.

C-PUR-HF D12YC11Y Cable Design features

Conductor:Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation:Halogen free compound, based on polyester
Core identification:Up to 5 cores: colored in accordance with DIN VDE 0293-308 From 6 cores: natural color with black numbers
Core arrangement:Cores/Pairs twisted with short length of lay around central element
Inner sheath:Due to technical reasons some of the cross section are produced with an additional polyurethane inner sheath
Screen over inner sheath:Braid of tinned copper wires
Outer sheath:Polyurethane, halogen free, flame retardant; Colour: black (opaque).
Marking White imprint: C-PUR-HF -J/-O (number of cores) x (cross-section) (year/week)

C-PUR-HF D12YC11Y Cable Electrical parameters

Rated voltage:0.6/1 kV (600/1000V) Max. permissible operating voltage AC:0.7/1.2 kV
Max. permissible operating voltage DC:0.9/1.8 kV AC Test Voltage:4 kV (5 Min.)
Current Carrying Capacity description:Acc. to DIN VDE 0298-4

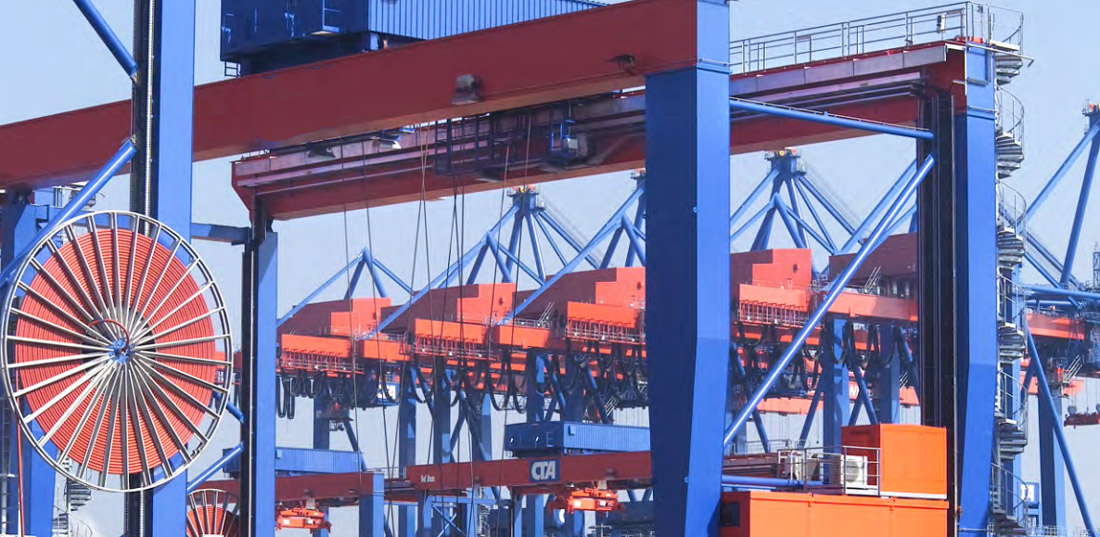

C-PUR-HF D12YC11Y Cable Application

D12YC11Y cable is a highly flexible, screened power and control cable specifically engineered for heavy-duty mobile industrial applications. It is widely used in crane festoon systems, drag chains, and conveyor installations across demanding environments like container ports, steel mills, and automated automotive assembly lines. Thanks to its robust polyurethane (PUR) outer sheath and high-density copper wire braid shielding, the cable can withstand continuous, high-speed bending and tensile stress (with travel speeds up to 210 m/min) while ensuring excellent electromagnetic interference (EMI) protection. Furthermore, its halogen-free, flame-retardant chemistry provides outstanding resistance to abrasion, oils, UV radiation, and extreme low temperatures down to -40°C, making it an ideal choice for ensuring reliable power transmission in the harshest industrial climates.

C-PUR-HF D12YC11Y Cable Spec

Number of cores x cross section	Conductor diameter max. mm	Outer diameter min. mm	Outer diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity for install. free in air (2) A	Short Circuit Current (conduc- tor)
D12YC11Y-O screened power cables, single core
1×25	6.2	10.3	11.5	69	330	370	0.78	138	3.58
1×35	7.8	12.3	13.5	81	430	520	0.55	170	5.01
1×50	8.9	15.4	16.6	100	610	750	0.39	212	7.15
1×70	11.1	17	18.3	110	810	1050	0.27	263	10.01
1×95	12.6	18.9	20.1	121	1030	1420	0.21	316	13.59
1×120	14.8	21.4	22.8	137	1320	1800	0.16	370	17.16
1×150	16	23.1	24.5	147	1650	2250	0.13	424	21.45
1×185	17.7	25.5	27.2	163	2000	2770	0.11	484	26.46
1×240	20.2	28.5	30.1	181	2490	3600	0.08	567	34.32
D12YC11Y-J screened power cables, four core
4×1,5	1.5	10.8	12	72	240	90	13.3	24	0.21
4×2,5	2	12.1	13.2	80	250	150	7.98	32	0.36
4×4	2.6	13.6	14.7	89	330	240	4.95	43	0.57
4×6	3.2	15.1	16.3	98	420	360	3.3	56	0.86
4×10	4	18.4	19.6	118	640	600	1.91	78	1.43
4×16	5	21.2	22.5	136	940	960	1.21	104	2.29
4×25	6.2	24.5	26.2	157	1360	1500	0.78	138	3.58
4×35	7.8	29.6	31.6	190	1870	2100	0.55	170	5.01
4×50	9.6	35.1	37.6	226	2560	3000	0.39	212	7.15
D12YC11Y-J screened power cables, five core
5×1,5	1.5	10.9	12.1	73	250	110	13.3	24	0.21
5×2,5	2	12.8	14	84	280	180	7.98	32	0.36
5×4	2.6	13.8	15	90	345	300	4.95	43	0.57
D12YC11Y-J screened control cables
7×1,5	1.5	10.9	12.1	73	220	150	13.3	24	0.21
12×1,5	1.5	15	16.2	97	360	270	13.3	24	0.21
18×1,5	1.5	15	16.2	97	420	400	13.3	24	0.21
12×2,5	2	17.4	18.6	112	530	450	7.98	32	0.36
18×2,5	2	17.5	18.8	113	650	670	7.98	32	0.36
D12YC11Y-O overall screened control pairs
3x(2×1,5)	1.5	16.5	17.8	107	350	130	13.3	24	0.21
4x(2×1)	1.3	15.3	16.5	99	310	120	19.5	19	0.14
4x(2×1,5)	1.5	17.2	18.5	111	385	180	13.3	24	0.21
D12Y11Y-O individually screened control pairs
4x(2×1)C	1.3	15.9	17.1	103	350	120	19.5	19	0.14
6x(2×1)C	1.3	19	20.3	122	480	180	19.5	19	0.14
9x(2×1)C	1.3	23.6	25	150	721	270	19.5	19	0.14
2x(2×1,5)C	1.5	15.2	16.4	98	280	90	13.3	24	0.21
2x(2×2,5)C	2	17.2	18.5	111	340	150	7.98	32	0.36
3x(2×1,5)C	1.5	17.2	18.5	111	350	130	13.3	24	0.21
3x(2×2,5)C	2	17.5	18.8	113	390	220	7.98	32	0.36
