(N)TSCGECECWÖU Cable

(N)TSCGECECWÖU Cable Description:

(N)TSCGECECWÖU Cable is a specialist range of mining cables, with Voltage Ratings of 3.6/6kv and 6/10kV or as 8.7/15kV and 12/20kV (classified as Medium voltage cables). They are in sizes from 25mm2 up to 150mm2. suitable for reeling drums of tunnel boring machines and for general tunnel applications. The (N)TSCGECECWÖU cables also have a Control conductor and a monitoring conductor to support working operations.

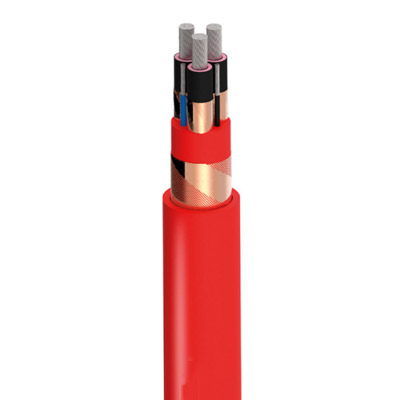

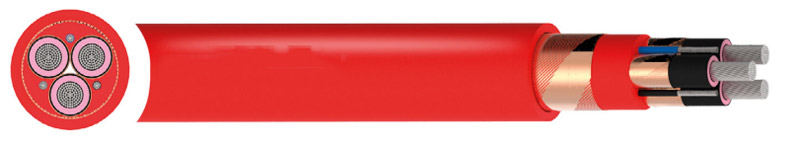

(N)TSCGECECWÖU Cable Construction

	(N)TSCGECECWÖU - 3.6/6kV and 6/10kV Cable	(N)TSCGECECWÖU - 3.6/6kV and 6/10kV ZH Cable	(N)TSCGECECWÖU - 8.7/15kV and 12/20kV Cable	(N)TSCGECECWÖU - 8.7/15kV and 12/20kV ZH Cable
PHASE CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
PROTECTIVE EARTH CONDUCTOR	Individual Copper Wire Screen
CONTROL CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
CENTRAL FILLER	Semi-Conductive Compound on a Textile Polyester Support
INNER SHEATH	Rubber Compound	Halogen-Free Compound	Rubber Compound	Halogen-Free Compound
MONITORING CONDUCTOR	Copper Wire Screen over the Inner Sheath
OUTER SHEATH	Rubber	Halogen-Free PUR (Polyurethane)	Rubber	Halogen-Free PUR (Polyurethane)

(N)TSCGECECWÖU Cable Characteristics

	NTSCGECECWÖU 3.6/6kV and 6/10kV Cable	NTSCGECECWÖU 8.7/15kV and 12/20kV Cable
Voltage Rating Uo/U	3.6/6kV; 6/10kV	8.7/15kV 12/20kV
Test Voltage	3.6/6kV: 11kV; 6/10kV: 17kV	8.7/15kV: 24kV 12/20kV: 29kV
Ambient Temperature	Fixed: -40°C to +80°C Flexed: -25°C to +80°C
Maximum Short Circuit Temperature	+250°C
Minimum Bending Radius	Fixed: 6 x overall diameter Flexed: 10 x overall diameter
Maximum Torsional Stress	±25°/m

(N)TSCGECECWÖU Cable Specifications

VOLTAGE(kV)	NO. OF CORES (PHASE + EARTH+CONTROL+ÜL)	NOMINAL CROSS SECTIONAL AREA(mm2)			CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL WEIGHT
		Phase Conductor	Earth Conductor	Control Conductor	mm	mm	mm	kg/km
3.6/6	3+3+3+ÜL	25	25/3E	2.5ST	6.8	45.4	48.8	3010
3.6/6	3+3+3+ÜL	35	25/3E	2.5ST	7.8	46.9	50.4	3390
3.6/6	3+3+3+ÜL	50	25/3E	2.5ST	9.4	50	53.6	4050
3.6/6	3+3+3+ÜL	70	35/3E	2.5ST	11.2	55.6	59.4	5260
3.6/6	3+3+3+ÜL	95	50/3E	2.5ST	12.7	59.9	63.9	6460
3.6/6	3+3+3+ÜL	120	70/3E	2.5ST	14.4	64	68.4	7820
3.6/6	3+3+3+ÜL	150	70/3E	2.5ST	16.3	70.4	75	9430
6/10	3+3+3+ÜL	25	25/3E	2.5ST	6.8	45.4	49.4	3050
6/10	3+3+3+ÜL	35	25/3E	2.5ST	7.8	46.9	51	3430
6/10	3+3+3+ÜL	50	25/3E	2.5ST	9.4	50	54.2	4090
6/10	3+3+3+ÜL	70	35/3E	2.5ST	11.2	55.6	60	5300
6/10	3+3+3+ÜL	95	50/3E	2.5ST	12.7	59.9	64.5	6500
6/10	3+3+3+ÜL	120	70/3E	2.5ST	14.4	64	69.1	7860
6/10	3+3+3+ÜL	150	70/3E	2.5ST	16.3	70.4	75.7	9470
8.7/15	3+3+3+ÜL	25	25/3E	2.5ST	6.8	48	51.5	3590
8.7/15	3+3+3+ÜL	35	25/3E	2.5ST	7.8	49.5	53.1	3990
8.7/15	3+3+3+ÜL	50	25/3E	2.5ST	9.4	54.4	58.2	4880
8.7/15	3+3+3+ÜL	70	35/3E	2.5ST	11.2	58.2	62.2	5950
8.7/15	3+3+3+ÜL	95	50/3E	2.5ST	12.7	61.4	65.7	7030
8.7/15	3+3+3+ÜL	120	70/3E	2.5ST	14.4	67.4	71.9	8690
12/20	3+3+3+ÜL	25	25/3E	2.5ST	6.8	50.5	54.1	3860
12/20	3+3+3+ÜL	35	25/3E	2.5ST	7.8	52.3	56	4260
12/20	3+3+3+ÜL	50	25/3E	2.5ST	9.4	57.5	61.4	5190
12/20	3+3+3+ÜL	70	35/3E	2.5ST	11.2	61	65.3	6280
12/20	3+3+3+ÜL	95	50/3E	2.5ST	12.7	66.4	70.9	7640
12/20	3+3+3+ÜL	120	70/3E	2.5ST	14.4	70.5	75.2	9050

(N)TSCGECECWÖU Cable Why Choose Haudong Cable

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium (N)TSCGECECWÖU Cable that meet the highest industry standards.
✔ Ultra-Rugged Design – Multi-layer armored construction for maximum mechanical protection
✔ Enhanced Electrical Performance – Precision-engineered for stable power transmission in harsh conditions
✔ Chemical & Temperature Resistant – Withstands oils, acids, and extreme temperatures (-40°C to +90°C)
✔ Full Safety Compliance – Meets IEC, EN, and other stringent international standards
