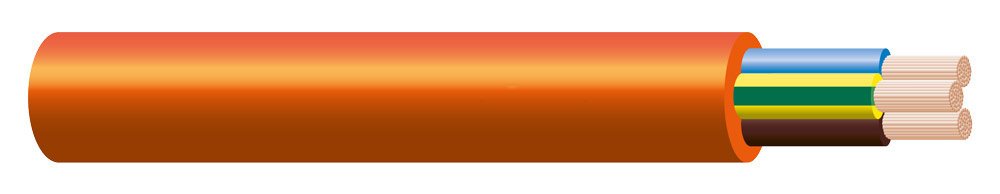

H07BQ-F Cable

H07BQ-F Cable Description:


H07BQ-F cable voltage rating is 450/750V and supplied cross-sectional size up to 16mm², wide operating temperature range of -40°C to +90°C. Supplied with colour cores, including Green/Yellow. H07BQ-F cables are robust polyurethane (PUR) sheathed cables, Polyurethane sheathing offers protection from oils, fats and chemicals, are commonly used in agro-chemical plants, construction sites, connecting equipment, agricultural machines and for sea vessels power connection in marinas and shipyards. Polyurethane outer sheath is robust and flexbile that is resistant to medium mechanical stress, tear, abrasion and as well to oil, wet environments and UV too.

H07BQ-F Cable Characteristics:

Voltage Rating Uo/U	450/750V
Test Voltage	2.5kV
Temperature Rating	Operating: -40ºC to +90ºC
Maximum Short Circuit Temperature	250ºC (Max. 5 seconds)
Minimum Bending Radius	5 x overall diameter

H07BQ-F Cable Construction:

Conductor	Class 5 Flexible Copper
Insulation	Cross-linked EPR (Ethylene Propylene Rubber)
Outer Sheath	PUR (Polyurethane)
Core Identi ication	2core: Blue Brown 3core: Green/Yellow Blue Brown 4core: Green/Yellow Brown Black Grey 5core: Green/Yellow Brown Black Grey Blue

H07BQ-F Cable Specifications:

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF OUTER SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	mm	kg/km
2	1	0.8	0.9	7.6	64
2	1.5	0.8	1	8.4	82
2	2.5	0.9	1.1	9.8	134
2	4	1	1.2	11.4	168
3	1	0.8	1	8.3	79
3	1.5	0.8	1	8.9	97
3	2.5	0.9	1.1	10.4	166
3	4	1	1.3	12.3	210
3	6	1	1.4	13.7	281
3	10	1.2	2.1	18.1	490
4	1	0.8	1	9	94
4	1.5	0.8	1.1	9.9	121
4	2.5	0.9	1.2	11.6	210
4	4	1	1.4	13.7	262
4	6	1	1.5	15.2	351
4	10	1.2	2.2	19.9	607
5	1	0.8	1.1	10	113
5	1.5	0.8	1.2	11	146
5	2.5	0.9	1.3	12.9	256
5	4	1	1.5	15.2	318
5	6	1	1.6	16.8	424
5	10	1.2	2.3	23.9	855
5	16	1.2	2.6	27.5	1208

H07BQ-F Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium H07BQ-F Cable that meet the highest industry standards.
✔ Ultra-Flexible Rubber Jacket – Withstands constant movement and bending
✔ High-Temperature Resistance – Rated for extreme heat (up to 90°C)
✔ Oil & Chemical Resistant – Ideal for harsh workshop environments
✔ Superior Conductivity – Fine-stranded tinned copper for maximum current flow
