PUR-HF Festoon Chain Cable

PUR-HF Festoon Chain Cable Description:

PUR-HF Festoon Chain Cable Sheathed in a halogen free flame retardant Polyurethane (PUR-HF) to provide a robust barrier protecting against oils, acids, hydrolysis and alkalines. PUR-HF Festoon Chain Cable have a voltage rating of 0.6/1kV, and its outer sheathing also allows for a wide operating temperature range, as low as -50oC in fixed installations and -40oC in mobile operations.

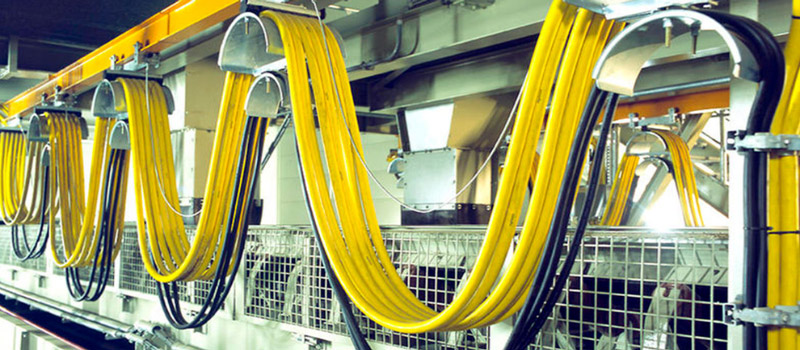

For operations where nearby cables or machinery may interfere with signals, our PUR-C-HF EMC Festoon cable is a electromagnetic protected version of the PUR-HF cable. Both cables are suitable for travel speeds in festoon systems, horizontal reeling, and in chain systems, with travel speeds of up to 180m/min vertically (and 240m/min horizontally).

PUR-HF Festoon Cable Characteristics

Voltage Rating (Uo/U)	0.6/1kV
Temperature Rating	Fixed installation: -50°C to +80°C Mobile operation: -40°C to +80°C
Minimum Bending Radius	Fixed Application: 6 x Overall Diameter Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load	15 N/mm2
Maximum Torsion	+/- 25°/m
Travel Speed	Festoon systems: up to 200m/min Reeling applications: up to 60m/min horizontal Chain systems: up to 200 N/mm

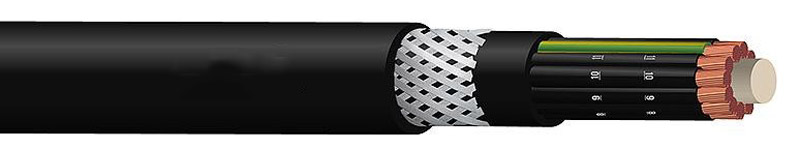

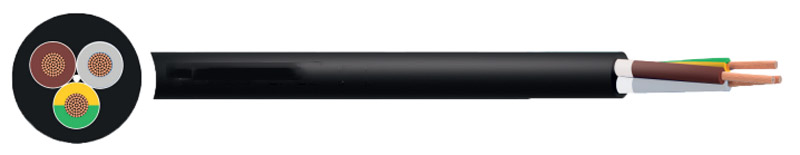

PUR-HF Festoon Cable Construction

	PUR-HF Trommel Cable	PUR-HF Festoon Chain Cable	PUR-HF Spreader Reel Cable	PUR-C-HF EMC Festoon Cable
CONDUCTOR	Class 5 flexible stranded Copper
INSULATION	Halogen Free compound
LAY UP	Central strength member, cores in concentric layers
INNER SHEATH	PUR-HF (Polyurethane Halogen Free Flame Retardant)	-	PUR-HF (Polyurethane Halogen Free Flame Retardant)
SCREEN				TCWB (Tinned Copper Wire Braid) - minimum 80% coverage
BRAID	Anti-twist textile braid		Anti-twist aramid yarns
OUTER SHEATH	PUR-HF (Polyurethane Halogen Free Flame Retardant)
Core Identification	3 Core: Green/Yellow Blue Brown 4 Core: Green/Yellow Brown Black Grey 5 Core: Green/Yellow Blue Brown Black Grey From 6 cores: white cores with black numbers

PUR-HF Festoon Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL OVERALL DIAMETER（mm）		NOMINAL WEIGHT
		Minimum	Maximum	kg/km
3	1.5	6.5	7.5	118
	2.5	8.1	9.1	130
4	1.5	8.1	9.1	124
	2.5	9.2	10.2	160
	4	10.3	11.5	234
	6	12.1	13.2	320
	10	15	16.2	520
	16	17.7	18.9	750
	25	21.1	22.5	1160
	35	25.8	27.4	1660
	50	31	33	2400
5	2.5	9.8	11	180
	4	11.6	12.7	280
	6	14	15.2	420
	10	16.2	17.5	630
	16	19.4	20.6	930
	25	23.2	24.5	1380
7	1.5	9	10	220
	2.5	11.5	12.7	250
12	1.5	14.3	15.5	320
	2.5	16.5	17.7	470
18	1.5	14.5	15.7	380
	2.5	16.7	17.9	580
24	1.5	16.5	17.8	500
	2.5	19.2	20.4	770
30	1.5	19.6	21	680
	2.5	24.9	26.5	1040

PUR-HF Festoon Cable  Why Choose Haudong Cable

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium PUR-HF Festoon Cable that meet the highest industry standards.
✔ Superior Flexibility – Specially designed for repeated bending in festoon/crane applications
✔ Abrasion-Resistant PUR Jacket – Withstands mechanical stress and harsh environments
✔ Oil & Chemical Resistant – Perfect for industrial and manufacturing use
✔ High-Frequency Compatible – Low interference for stable signal/power transmission
