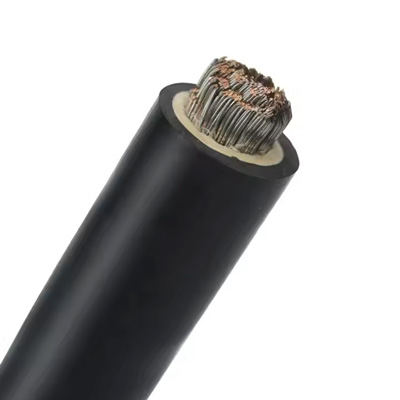

H07RN8-F Flexible Rubber Cable Description:
H07RN8-F flexible rubber cable is highly flexible weather- and oil-resistant cable, that can be used as power and control cables in submersible pumps, agricultural and industrial workshops. they are suitable for permanently submersion in water, 200 mt depth with maximum water temperature up to +40ºC.
H07RN8 -F cable is suitable for connections liable to moderate mechanical stresses, i.e. industrial or agricultural workshop apparatus, large boilers, heater plates, electric tools such as drills and disk saws, electric appliances, portable motors and generators on building sites; also for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc. Suitable for applications up to 1kV for adequately protected fixed installations (i.e. inside pipes or equipment) as well as for rotor connections to lifting equipment motors.
H07RN8-F Cable Construction & Technical Characteristics
|
Conductor: |
Class 5 flexible copper conductor |
|
Insulation: |
Rubber |
|
Sheath: |
Rubber |
|
Working voltage: |
450/750 volts |
|
Test voltage: |
2500 volts |
|
Flexing bending radius: |
6.0 x Ø |
|
Fixed bending radius: |
4.0 x Ø |
|
Flexing Temperature: |
-25º C to +60º C |
|
Fixed Temperature: |
-40º C to +60º C |
|
Max Water Temperature: |
+40º C |
|
Short circuit temperature: |
+250 º C |
H07RN8-F Cable Specifications
|
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA |
CONDUCTOR
DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
NOMINAL
WEIGHT |
|
mm |
mm |
mm |
mm |
kg/km |
|
1 |
1.5 |
1.5 |
5.7 |
7.1 |
50 |
|
1 |
2.5 |
1.9 |
6.3 |
7.9 |
70 |
|
1 |
4 |
2.4 |
7.2 |
9 |
100 |
|
1 |
6 |
3 |
7.9 |
9.8 |
130 |
|
1 |
10 |
3.9 |
9.5 |
11.9 |
200 |
|
1 |
16 |
4.9 |
10.8 |
13.4 |
280 |
|
1 |
25 |
6.1 |
12.7 |
15.8， |
400 |
|
1 |
35 |
7.3 |
14.3 |
17.9 |
510 |
|
1 |
50 |
8.9 |
16.5 |
20.6 |
710 |
|
3 |
1.5 |
1.5 |
9.2 |
11.9 |
150 |
|
3 |
2.5 |
1.9 |
10.9 |
14 |
210 |
|
3 |
4 |
2.4 |
12.7 |
16.2 |
280 |
|
3 |
6 |
3 |
14.1 |
18 |
370 |
|
3 |
10 |
3.9 |
19.1 |
24.2 |
660 |
|
3 |
16 |
4.9 |
21.8 |
27.6 |
920 |
|
3 |
25 |
6.1 |
26.1 |
33 |
1360 |
|
3 |
35 |
7.3 |
29.3 |
37.1 |
1820 |
|
3 |
50 |
8.9 |
34.1 |
42.9 |
2500 |
|
4 |
|
1.2 |
9.2 |
11.9 |
150 |
|
4 |
1.5 |
1.5 |
10.2 |
13.1 |
190 |
|
4 |
2.5 |
1.9 |
12.1 |
15.5 |
260 |
|
4 |
4 |
2.4 |
14 |
17.9 |
350 |
|
4 |
6 |
3 |
15.7 |
20 |
460 |
|
4 |
10 |
3.9 |
20.9 |
26.5 |
830 |
|
4 |
16 |
4.9 |
23.8 |
30.1 |
1190 |
|
4 |
25 |
6.1 |
28.9 |
36.6 |
1720 |
|
4 |
35 |
7.3 |
32.5 |
41.1 |
2260 |
|
7 |
1.5 |
1.5 |
15 |
19 |
340 |
|
7 |
2.5^ |
1.9 |
17.5 |
21.5 |
500 |
|
12 |
1.5 |
1.5 |
17.6 |
22.4 |
530 |
|
12 |
2.5 |
1.9 |
20.6 |
26.2 |
720 |
|
18 |
1.5 |
1.5 |
20.7 |
26.3 |
700 |
|
24 |
1.5 |
1.5 |
24.3 |
30.7 |
960 |
|
36 |
1.5 |
1.5 |
27.8 |
35.2 |
1360 |
H07RN8-F Cable Core Identification
1 core: Black
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Blue Brown Grey
5 core: Green/Yellow Blue Brown Black Grey
6 core and above: Black with White numbers Green/Yellow
