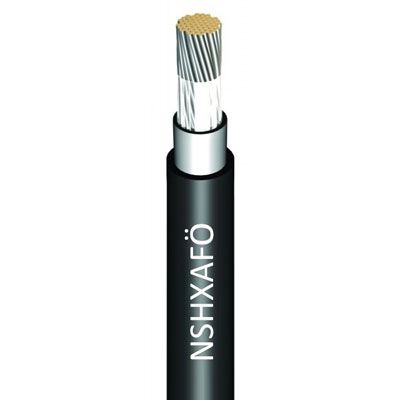

NSHXAFÖ Cable

Brand Name: HuaDong Cable
Name: NSHXAFÖ Cable
Conductor: Class 5 flexible copper conductor
Temperature: -40°C to +80°C
Insulation: Rubber
Sheath: Rubber
Email: huadong@hdcablegroup.com
Discount Price

NSHXAFÖ Cable Application:

NSHXAFÖ cable is a highly-flexible rubber cable recommended for use in board of trains, underground coaches and trams. The cables insulation and sheathing materials are low smoke zero halogen and are suitable for installations where fire, smoke emission and toxic fumes create a potential hazard. This cable is also flame retardant and oil resistant.

NSHXAFO Cable

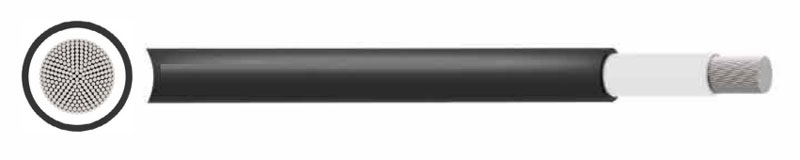

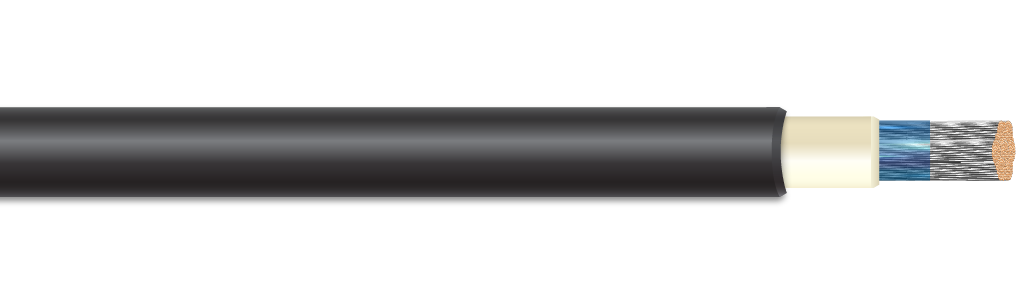

NSHXAFÖ Cable Construction

	NSHXAFO 0.6/1kV Rubber Cable	NSHXAFQ 1.8/3kV Rubber Cable	NSHXAFQ 3.6/6kV Rubber Cable
Conductor	Class 5 flexible stranded tinned copper conductor	Class 5 flexible tinned copper conductor LSZH Rubber (Low Smoke Zero Halogen)	Class 5 flexible stranded tinned copper conductor
Insulation	EPR (Ethylene Propylene Rubber) Type 3GI3	LSZH Rubber (Low Smoke Zero Halogen)	EPR (Ethylene Propylene Rubber) Type 3Gl3
Sheath	LSZH (Low Smoke Zero Halogen)
Sheath Colour	Black

NSHXAFO Cable Characteristics

	NSHXAFO 0.6/1kV Rubber Cable	NSHXAFQ 1.8/3kV Rubber Cable	NSHXAFQ 3.6/6kV Rubber Cable
Voltage Rating	Uo/U 0.6/1kV	Uo/U 1.8/3kV	Uo/U 3.6/6kV
Temperature Rating	Operating temperature: -25°C to +90 °C Fixed Installation: -40°C to +90°C	Fixed: -35°C to +90°C Flexed: -15°C to +90°C	Operating temperature: -25°C to +90 °C Fixed Installation: -40°C to +90°C
Minimum Bending Radius	Fixed: 4 x overall diameter Flexed: 5 x overall diameter

0.6/1kV NSHXAFÖ Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	mm	kg/km
1	1.5	0.8	0.8	4.7	34
1	2.5	0.9	0.8	5.4	48
1	4	1	0.8	6.2	66
1	6	1	0.8	6.7	87
1	10	1.2	0.8	8.1	135
1	16	1.2	0.8	9.2	195
1	25	1.4	0.8	10.8	286
1	35	1.4	1	11.8	379
1	50	1.6	1	14.3	545
1	70	1.6	1	16.1	738
1	95	1.8	1	18.6	964
1	120	1.8	1	19.7	1194
1	150	2	1	22	1480
1	185	2.2	1.2	25	1819
1	240	2.4	1.2	26.9	2339
1	300	2.6	1.2	30.9	2914
1	400	2.8	1.2	33.3	3761
1	500	3	1.4	38.3	4737

1.8/3kV NSHXAFÖ Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	mm	kg/km
1	1.5	5.6	6.5	6.5	50
1	2.5	6	7	7	70
1	4	6.5	7.5	7.5	80
1	6	7.1	8	8	100
1	10	8.3	9	9	160
1	16	9.3	11.5	11.5	220
1	25	11.4	14	14	330
1	35	12.6	15.5	15.5	440
1	50	14.2	17.5	17.5	580
1	70	15.9	19.5	19.5	780
1	95	18.5	22.5	22.5	1100
1	120	20.3	25	25	1300
1	150	22.3	27.5	27.5	1600
1	185	24.2	30.5	30.5	1900
1	240	27.1	33.5	33.5	2500
1	300	30.2	37.5	37.5	3200

3.6/6kV NSHXAFÖ Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	mm	kg/km
1	1.5	2.6	0.8	9.5	88
1	2.5	2.6	0.8	10.2	103
1	4	2.6	0.8	11	130
1	6	2.6	0.8	11.7	215
1	10	2.6	0.8	13.1	283
1	16	2.6	0.8	14.2	393
1	25	2.9	0.8	16	489
1	35	2.9	1.0	17.1	651
1	50	2.9	1.0	19.1	856
1	70	2.9	1.0	21	856
1	95	3.2	1.0	24.1	1109
1	120	3.2	1.0	25.9	1369
1	150	3.2	1.0	27.5	1652
1	185	3.2	1.2	30.1	1965
1	240	3.2	1.2	31.8	2526

NSHXAFO Cable Features

Halogen-free: to protect human life and valuable assets in the event of a fire, through low smoke density and low amount of corrosive gases
Flame-retardant according IEC 60332-1-2
Normative rated voltage class 3.6/6 kVac available on request
The outer diameters stated in the part number table are maximum values

NSHXAFO Cable Factory

NSHXAFÖ Cable Why Choose Huadong?

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium NSHXAFÖ cables that meet the highest industry standards.
✅ Premium Quality - High-temp, flame-retardant LSZH cables
✅ Full Compliance - Meets IEC, RoHS & industry standards
✅ Custom Solutions - Tailored specs & fast prototyping
✅ Global Supply - Competitive pricing & reliable delivery
Choose Huadong Cable Group for NSHXAFO Cables – Engineered for Performance, Built for Safety!

For the NSHXAFÖ Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
