DLO Cable | Diesel Locomotive Cable

DLO Cable Description:

DLO cable, also called diesel locomotive cable, designed for use in diesel-electric locomotive engines, is a flexible cable with a dual-extruded product consisting of ethylene propylene rubber (EPR) insulation and a thermoset chlorinated polyethylene rubber (TS-CPE) jacket. The voltage rating for DLO cable is 2000 volts. DLO cable is suitable for use in conduit, ducts, troughs and electrical tray. It can be used in wet or dry areas. The maximum continuous conductor temperature for normal operations is 90°C in dry locations and 75°C for wet locations and is resistant to oils, acids, alkalies, heat, and flame. Designed for diesel-electric locomotives, mining equipment, motor leads, shipyards, and generator systems.

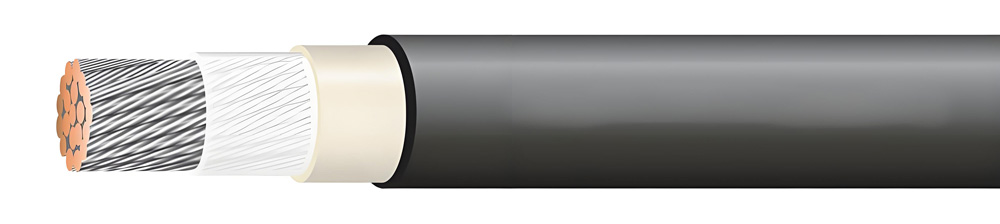

DLO Cable Construction:

Conductors	Fully annealed flexible strand Class I tinned copper
Separator	All sizes except for 14AWG have tape separator between conductor and insulation
Insulation	Ethylene-Propylene Rubber (EPR)
Jacket	Black heavy duty thermoset CPE. Ozone, sunlight, oil, grease, weather, chemical, and abrasion resistant

DLO Cable Specification:

Conductor Size	Conductor Stranding	Nominal Conductor Diameter		Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter		Nominal Net Weight	Ampacity 30°C in Air
AWG/MCM	No./AWG	inches	mm	inches	mm	inches	mm	inches	mm	lbs/kft
14	19/27	0.072	1.83	0.045	1.14	0.015	0.38	0.192	4.88	28	35
12	19/25	0.091	2.31	0.045	1.14	0.015	0.38	0.215	5.46	38	40
10	27/24	0.123	3.12	0.045	1.14	0.03	0.76	0.277	7.04	63	55
8	41/24	0.148	3.76	0.055	1.4	0.03	0.76	0.302	7.67	92	80
6	65/24	0.186	4.72	0.06	1.52	0.03	0.76	0.37	9.4	128	105
4	105/24	0.24	6.1	0.06	1.52	0.03	0.76	0.424	10.77	188	140
2	168/24	0.315	8	0.06	1.52	0.045	1.14	0.528	13.41	292	190
1	225/24	0.363	9.22	0.08	2.03	0.045	1.14	0.613	15.57	394	220
1/0	273/24	0.417	10.59	0.08	2.03	0.045	1.14	0.671	17.04	468	260
2/0	329/24	0.457	11.61	0.08	2.03	0.045	1.14	0.711	18.06	545	300
3/0	450/24	0.533	13.54	0.08	2.03	0.045	1.14	0.787	19.99	720	350
4/0	551/24	0.59	14.99	0.08	2.03	0.065	1.65	0.884	22.45	886	405
262.6	644/24	0.636	16.15	0.09	2.29	0.065	1.65	0.95	24.13	1032	471
313.1	772/24	0.7	17.78	0.09	2.29	0.065	1.65	1.015	25.78	1209	511
373.1	925/24	0.772	19.61	0.09	2.29	0.065	1.65	1.086	27.58	1422	590
444.4	1091/24	0.854	21.69	0.09	2.29	0.065	1.65	1.169	29.69	1652	656
535.3	1325/24	0.906	23.01	0.09	2.29	0.065	1.65	1.22	30.99	1965	731
646.4	1584/24	0.996	25.3	0.09	2.29	0.065	1.65	1.311	33.3	2312	815
777.7	1925/24	1.102	27.99	0.09	2.29	0.065	1.65	1.397	35.48	2778	905
929.2	2281/24	1.197	30.4	0.09	2.29	0.065	1.65	1.511	38.38	3246	1005
1111	2727/24	1.325	33.66	0.14	3.56	0.095	2.41	1.799	45.69	4077	1115

DLO Cable Why Choose Haudong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium DLO Cable that meet the highest industry standards. ✔ Ultra-Flexible Design – Fine-stranded tinned copper conductors
✔ Extreme Durability – Rugged EPDM/rubber jacket resists oils, fuels, and abrasion
✔ High-Temperature Rating – -40°C to +90°C operation (105°C short-circuit rating)
✔ Vibration Resistant – Engineered for dynamic movement in mobile equipment
