PUR Spreader Reeling Cable

PUR Spreader Reeling Cable Description:

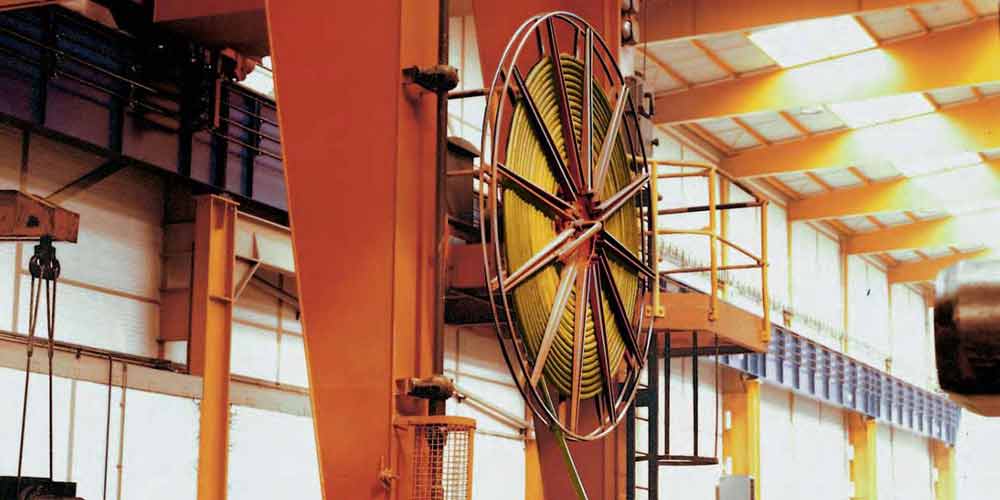

PUR Spreader Reeling Cable mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed. PUR sheath offers a very good protection against hydrolysis, solvents, alkalines and oils.

PUR Spreader Reeling Cable Characteristics

Voltage Rating (Uo/U)	0.6/1kV
Temperature Rating	Fixed installation: -50°C to +90°C Mobile operation: -40°C to +90°C
Minimum Bending Radius	Fixed Application: 6 x Overall Diameter Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load	30 N/mm²
Maximum Torsion	±25º/m
Travel Speed	Festoon Systems Up to 240m/min Reeling Application: Up to 240m/min horiz. Up to 180m/min vertica

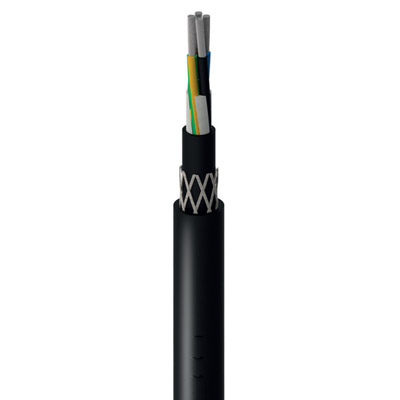

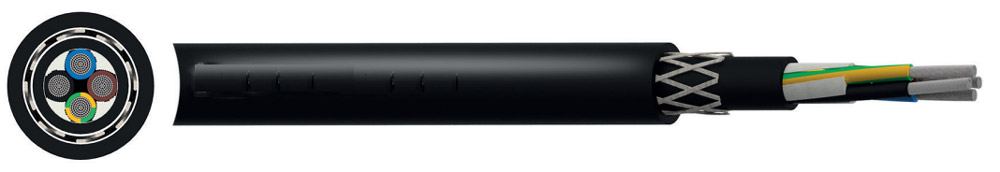

PUR Spreader Reeling Cable Construction

Conductor	Class 5 flexible stranded copper
Insulation	Halogen free compound based on polyester
Lay Up	Central Aramid strength member, cores in concentric layers
Inner Sheath	PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding	Anti-twisting element - Aramid yarns braiding
Outer Sheath	PUR-HF (Halogen Free, flame retardant Polyurethane)
Core Identification	From 6 cores: white cores with black numbers
Sheath Colour	Black or Yellow or Orange

PUR Spreader Reeling Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER mm2		NOMINAL WEIGHT
	mm2	Minimum	Maximum	kg/km
18	2.5	22	26	1100
24	2.5	26.4	29.4	1400
30 x 5 x 6	2.5 + 2.5	30.2	34.2	1600
36 x 6 x 6	2.5 + 2.5	34.7	38.5	2080
36	2.5	30.2	33	1850
42 x 7 x 6	2.5 + 2.5	37.8	41.8	2280
44	2.5	32.5	35.5	1950
8 x 6	2.5	42.7	45.1	2620
54 x 9 x 6	2.5 + 2.5	43.8	48.8	2800

PUR Spreader Reeling Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium PUR Spreader Reeling Cable that meet the highest industry standards.
✔ Ultra-Flexible PUR Jacket – Withstands 1+ million bending cycles
✔ Heavy-Duty Construction – Reinforced for high tensile loads (up to 10kN)
✔ All-Weather Performance – Resistant to saltwater, UV, oils, and -40°C to +90°C temperatures
✔ Optimized Conductivity – Tinned copper cores prevent corrosion in marine environments
