(N)TSCGECEWÖU Cable

(N)TSCGECEWÖU Cable Description:

The (N)TSCGECEWÖU Cable range  is designed for monospiral drum reeling and trailing operations and will withstand the rigours of the environmental and mechanical operations associated with the Mining industry. (N)TSCGECEWÖU Cable voltages ranging from 3.6/6kV through to 18/30kV, in cable sizes from 25mm2 to 150mm2, and with additional variants with fibre optic, anti-torsion braids and suitable for permanent submersion, depending on the specific application.

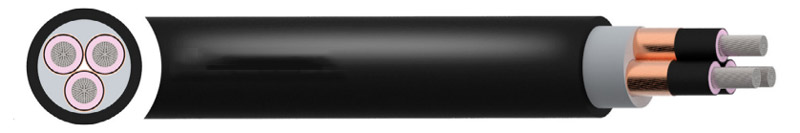

(N)TSCGECEWÖU Cable Construction：

	(N)TSCGECEWÖU Cable	(N)TSCGECEWÖU - ATB Cable	(N)TSCGECEWÖU ATB Cable (Ground Check Conductor)	(N)TSCGECEWÖU - Submersible Cable
PHASE CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
PROTECTIVE EARTH CONDUCTOR	Individual Copper Wire Screen	Individual Copper Wire Braid	Individual Copper Braid 2 x Copper Earth Conductors 1 x Copper Checking Earth Wiring Conductor	Individual Copper Wire Braid
CENTRAL FILLER	Rubber Compound on a Textile Polyester Support
INNER SHEATH	Rubber Compound	Abrasion Resistant Rubber Compound		EPR Rubber Compound with Water Proofing
ANTI-TORSION BRAID	-	Polyester Braid between the Inner and Outer Sheath		-
OUTER SHEATH	Rubber	Abrasion Resistant Rubber Compound		CM Rubber Compound Water Proofing

(N)TSCGECEWÖU Cable Characteristics：

	(N)TSCGECEWÖU - 3.6/6kV and 6/10kV Submersible Cable	(N)TSCGECEWÖU - 8.7/15kV and 12/20kV Submersible Cable	(N)TSCGECEWÖU 1.8/3kV, 3.6/6kV and 6/10kV ATB Cable	(N)TSCGECEWÖU 8.7/15kV and 12/20kV ATB Cable
Voltage Rating Uo/U	3.6/6kV 6/10kV	8.7/15kV 12/20kV	1.8/3kV | 3.6/6kV | 6/10kV	8.7/15kV 12/20kV
Test Voltage	3.6/6kV: 11kV 6/10kV: 17kV	8.7/15kV: 24kV 12/20kV: 29kV	1.8/3kV: 6kV | 3.6/6kV: 11kV | 6/10kV: 17kV	8.7/15kV: 24kV 12/20kV: 29kV
Ambient Temperature	Fixed: -40ºC to +80°C; Flexed: -25°C to +60°C		Fixed: -40ºC to +80°C; Flexed: -25°C to +80°C
Minimum Bending Radius	Fixed: 6 x overall diameter Flexed: 10 x overall diameter
Submersible	300mtr		-

(N)TSCGECEWÖU Cable Specifications：

VOLTAGE(kV)	NO. OF CORES (PHASE + EARTH)	NOMINAL CROSS SECTIONAL AREA(mm2)		CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	MAXIMUM TENSILE LOAD N	NOMINAL WEIGHT
		Phase Conductor	Earth Conductor	mm	mm	mm		kg/km
3.6/6	3+3	25	25/3E	6.8	43.4	45.1	1125	2830
3.6/6	3+3	35	25/3E	7.8	45	46.7	1575	3180
3.6/6	3+3	50	25/3E	9.4	48.1	49.8	2250	3830
3.6/6	3+3	70	35/3E	11.2	53.7	55.5	3150	4960
3.6/6	3+3	95	50/3E	12.7	58.4	60.2	4257	6170
3.6/6	3+3	120	70/3E	14.4	62.9	65.2	5400	7540
3.6/6	3+3	150	70/3E	16.3	69.3	71.7	6750	9050
3.6/6	3+3	185	95/3E	17.6	72.1	74.5	8325	10350
6/10	3+3	25	25/3E	6.8	43.4	45.7	1125	2870
6/10	3+3	35	25/3E	7.8	45	47.3	1575	3220
6/10	3+3	50	25/3E	9.4	48.1	50.4	2250	3870
6/10	3+3	70	35/3E	11.2	53.7	56.1	3150	5000
6/10	3+3	95	50/3E	12.7	58.4	60.8	4257	6210
6/10	3+3	120	70/3E	14.4	62.9	65.9	5400	7580
6/10	3+3	150	70/3E	16.3	69.3	72.4	6750	9090
6/10	3+3	185	95/3E	17.6	72.1	75.2	8325	10390
8.7/15	3+3	25	25/3E	6.8	49.4	51.2	1125	3430
8.7/15	3+3	35	25/3E	7.8	50.9	52.7	1575	3800
8.7/15	3+3	50	25/3E	9.4	55.8	57.6	2250	4700
8.7/15	3+3	70	35/3E	11.2	59.6	61.4	3150	5670
8.7/15	3+3	95	50/3E	12.7	63.3	65.6	4257	6830
8.7/15	3+3	120	70/3E	14.4	69.8	72.2	5400	8520
12/20	3+3	25	25/3E	6.8	55.9	57.7	1125	4160
12/20	3+3	35	25/3E	7.8	57.3	59.1	1575	4560
12/20	3+3	50	25/3E	9.4	60.5	62.3	2250	5300
12/20	3+3	70	35/3E	11.2	66.1	67.9	3150	6580
12/20	3+3	95	50/3E	12.7	69.8	72.2	4257	7740

(N)TSCGECEWÖU Cable Applications：

(N)TSCGECEWÖU	Flexible cable for fixed energy distribution in mines and alongside material handling equipment.
(N)TSCGECEWÖU - ATB	Flexible cable for providing energy supply to heavy mobile equipment during trailing operations in opencast mines. Applications include drag lines, shovels, dredges and drills performing under extreme mechanical stresses and abrasion.
(N)TSCGECEWÖU - ATB (Ground conductor)	The ATB cable with Ground Check Conductor has additional Earth Protective Conductors over and above the Protective Earth Conductor of individual copper braid. The cable benefits from 2x copper earth conductors and 1x copper checking earth wiring conductor.
(N)TSCGECEWÖU - Submersible	Suitable for depths up to 300m and for permanent use in salty or brackish water, these flexible supply cables are used for applications such as pumps, dredges and floating docks, as well as trailing operations of opencast mining equipment.

(N)TSCGECEWÖU Cable Why Choose Huadong Cable?

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium (N)TSCGECEWÖU cable that meet the highest industry standards.
✔ Extreme Durability – Armored, crush & torsion-resistant
✔ Wide Temp Range – -50°C to +105°C performance
✔ Highest Safety – LSZH, flame-retardant, EMI shielded
✔ Full Compliance – IEC, ISO, ROHS certified
