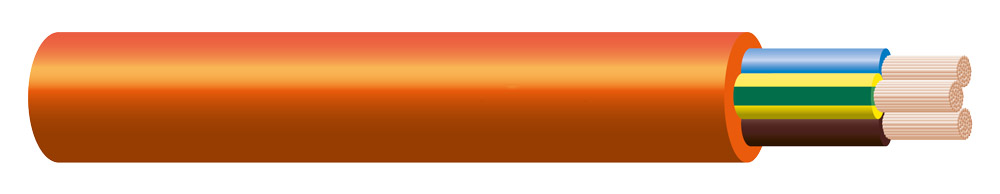

H05BQ-F Cable Description:
H05BQ-F cable is robust polyurethane (PUR) sheathed cable, the voltage is 300/500V, temperature range is -40°C to +90°C, and they are offered in multicore cross-sectional conductor sizes up to 1mm2. H05BQ-F cable used in domestic premises, kitchen and offices. for ordinary duty applications and supplying appliances where cables are subject to low mechanical stresses (e.g. vacuum cleaners, cooking appliances, soldering irons, toasters, domestic portable tools and hand held inspection lamps).
H05BQ-F Cable Characteristics
|
Voltage Rating Uo/U |
300/500V |
|
Test Voltage |
2.5kV |
|
Temperature Rating |
Operating: -40ºC to +90ºC |
|
Maximum Short Circuit Temperature |
250ºC (Max. 5 seconds) |
|
Minimum Bending Radius |
5 x overall diameter |
H05BQ-F Cable Construction
|
Conductor |
Class 5 Flexible Copper Conductor |
|
Insulation |
Cross linked EPR (Ethylene Propylene Rubber) |
|
Outer Sheath |
PUR (Polyurethane) |
|
Core Identiication |
2core: Blue Brown
3core: Green/Yellow Blue Brown
4core: Green/Yellow Brown Black Grey
5core: Green/Yellow Brown Black Grey Blue |
H05BQ-F Cable Specifications
|
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA |
NOMINAL OVERALL DIAMETER |
|
mm2 |
mm |
|
2 |
0.5 |
6 |
|
2 |
0.75 |
6.4 |
|
2 |
1 |
7.2 |
|
3 |
0.5 |
6.4 |
|
3 |
0.75 |
7 |
|
3 |
1 |
7.6 |
|
4 |
0.5 |
7 |
|
4 |
0.75 |
7.6 |
|
5 |
0.5 |
7.7 |
|
5 |
0.75 |
8.5 |
|
5 |
1 |
9 |
H05BQ-F Cable Applications:
Medium Mechanical Loads: Suitable for use in environments with medium mechanical stress, like construction sites, agriculture, and food production.
Harsh Environments: Can be used in oily and wet conditions, as well as outdoors.
Various Equipment: Used to connect various equipment, including heat lamps, circular saws, and mobile motors.
Flexible Use: It's designed for flexible use and fixed installations.
H05BQ-F Cable Why Choose Huadong:
As a professional cable manufacturer with decades of experience, Huadong Cable produces premium H05BQ-F Cable that meet the highest industry standards.
✔ Ultra-Soft Rubber Jacket – Withstands constant bending and movement
✔ Fine-Stranded Copper Conductors – Maximum flexibility and current capacity
✔ Oil & Chemical Resistant – Ideal for harsh workshop environments
✔ Flame Retardant – Meets strict safety standards
