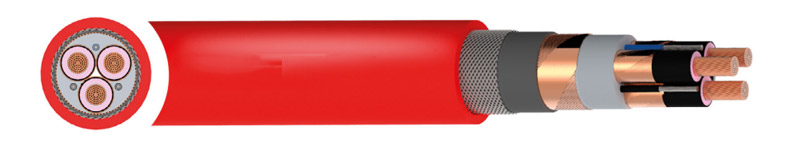

(N)3GHSSYCY Cable

(N)3GHSSYCY Cable Description:

Our (N)3GHSSYCY cable is available with a Voltage Rating of 3.6/6kv, 6/10kV or 8.7/15kV, 12/20kV. They operate in ambient temperatures of -40oC to +80oC when fixed and +5oC to +80oC when flexed. Our (N)3GHSSYCY is a flexible energy supply cable designed to supply power to medium voltage (MV) equipment. These cables are used for the connection of mobile operating equipments, in mines and underground excavations with hazardous environments, in stationary operation, e.g.high-voltage transformers in mining and tunneling.

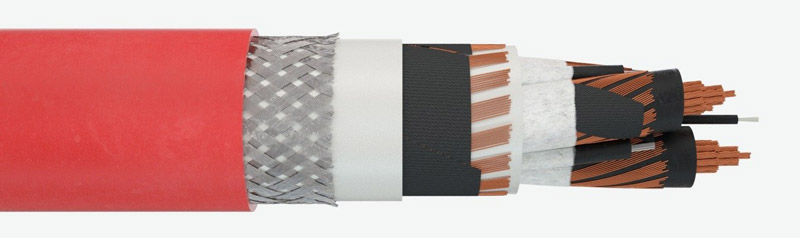

(N)3GHSSYCY Cable Construction

INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
PROTECTIVE EARTH CONDUCTOR	Individual Copper Wire Screen
CONTROL CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
CENTRAL FILLER	Rubber Compound on a Textile Polyester Support
INNER SHEATH	PVC (Polyvinyl Chloride)
MONITORING CONDUCTOR	Copper Wire
INNER SHEATH 2	PVC (Polyvinyl Chloride)
ARMOUR	Steel Wire Braid over the Second Inner Sheath
OUTER SHEATH	PVC (Polyvinyl Chloride)

(N)3GHSSYCY Cable Characteristics

	(N)3GHSSYCY 3.6/6kV and 6/10kV Cable	(N)3GHSSYCY 8.7/15kV and 12/20kV Cable
Voltage Rating（Uo/U）	3.6/6kV | 6/10kV	8.7/15kV; 12/20kV
Test Voltage	3.6/6kV: 11kV | 6/10kV: 17kV	8.7/15kV: 24kV; 12/20kV: 29kV
Temperature Range	Fixed: -40°C to +80°C Flexed: +5°C to +80°C	Maximum Short Circuit Temperature: +250°C Maximum Working Temperature on the Conductor: +90°C
Ambient Temperature	-	Fixed: -40°C to +80°C Flexed: +5°C to +80°C
Minimum Bending Radius	Fixed: 6 x overall diameter Flexed: 10 x overall diameter

(N)3GHSSYCY Cable Specifications

VOLTAGE	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA			CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	MAXIMUM TENSILE LOAD	NOMINAL WEIGHT
kV	(PHASE + EARTH+ CONTROL+ÜL)	Phase Conductor	Earth Conductor	Control Conductor	mm	mm	mm	N	kg/km
3.6/6	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.1	1125	4160
3.6/6	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54	1575	4610
3.6/6	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	57.8	2250	5340
3.6/6	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	61.6	3150	6410
3.6/6	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.2	4275	7650
3.6/6	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70	5400	9040
3.6/6	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	73.7	6750	10190
6/10	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.7	1125	4200
6/10	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54.6	1575	4650
6/10	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	58.4	2250	5380
6/10	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	62.2	3150	6450
6/10	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.8	4275	7690
6/10	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70.7	5400	9080
6/10	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	74.4	6750	10230

VOLTAGE	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA			CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL WEIGHT
kV	(PHASE + EARTH+ CONTROL+ÜL)	Phase Conductor	Earth Conductor	Control Conductor	mm	mm	mm	kg/km
8.7/15	3+3+3+ÜL	25	25/3E	2.5ST	6.1	50.5	55.6	4530
8.7/15	3+3+3+ÜL	35	25/3E	2.5ST	7.2	52.3	57.6	5000
8.7/15	3+3+3+ÜL	50	25/3E	2.5ST	8.9	55.8	61.3	5740
8.7/15	3+3+3+ÜL	70	35/3E	2.5ST	10.6	59.3	65.2	6840
8.7/15	3+3+3+ÜL	95	50/3E	2.5ST	12.3	62.8	68.9	8020
8.7/15	3+3+3+ÜL	120	70/3E	2.5ST	13.8	66.2	72.6	9270
12/20	3+3+3+ÜL	25	25/3E	2.5ST	6.1	52.9	58.2	4820
12/20	3+3+3+ÜL	35	25/3E	2.5ST	7.2	54.7	60.2	5290
12/20	3+3+3+ÜL	50	25/3E	2.5ST	8.9	58.3	64	6120
12/20	3+3+3+ÜL	70	35/3E	2.5ST	10.6	61.7	67.8	7210
12/20	3+3+3+ÜL	95	50/3E	2.5ST	12.3	65.2	71.5	8410
12/20	3+3+3+ÜL	120	70/3E	2.5ST	13.8	68.7	75.3	9700
