(N)3GHSSHCH cable

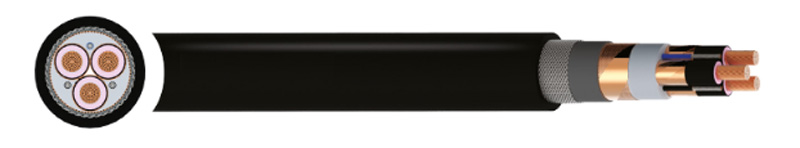

(N)3GHSSHCH Cable Description

Our (N)3GHSSHCH cable is manufactured to VDE0250 Standard for Voltage Ratings (Uo/U) of 3.6/6kv, 6/10kV or 8.7/15kV, 12/20kV, and they are designed to operate in ambient temperatures of -40oC to +80oC when fixed and +5oC to +80oC when flexed. (N)3GHSSHCH cable offers a flexible power supply to Medium Voltage (MV) equipment with a black Low Smoke Zero Halogen (LSZH) inner (x2) and outer sheathing. (N)3GHSSHCH cables is used for the connection of mobile operating equipments in mines and underground excavations with hazardous environments. In stationary operation, e.g.highvoltage transformers in mining and tunnelling.

(N)3GHSSHCH Cable Characteristics:

Voltage Rating	Uo/U 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV
Test Voltage	3.6/6kV: 11kV | 6/10kV: 17kV | 8.7/15kV: 24kV | 12/20kV: 29kV
Ambient Temperature	Fixed: -40°C to +80°C Flexed: +5°C to +80°C
Minimum Bending Radius	Fixed: 6 x overall diameter Flexed: 10 x overall diameter

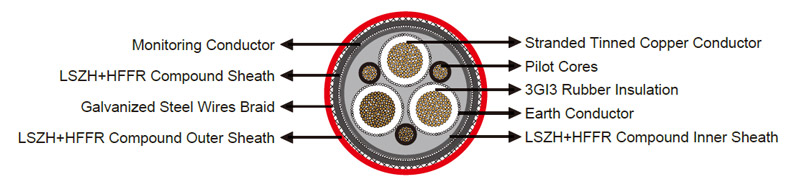

(N)3GHSSHCH Cable Construction:

	(N)3GHSSHCH 3.6/6kV and 6/10kV Cable	(N)3GHSSHCH 8.7/15kV and 12/20kV Cable
Phase Conductor	Class 5 copper	Class 5 flexible stranded copper
Insulation	Rubber compound
Semi-Conductive Layers	Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor	Individual copper screen	Individual copper wire screen
Control Conductor	Class 5 tinned copper	Class 5 flexible stranded tinned copper
Central Filler	Rubber compound on a textile polyester support
First Inner Sheath	LSZH (Low Smoke Zero Halogen)
Monitoring Conductor	Copper wire screen over the first inner sheath
Second Inner Sheath	LSZH (Low Smoke Zero Halogen)
Armour	Steel wire braid over the second inner sheath
Outer Sheath	LSZH (Low Smoke Zero Halogen)
Sheath Colour	Black

(N)3GHSSHCH Cable Specifications:

VOLTAGE kV	NO. OF CORES (PHASE + EARTH+ CONTROL+ÜL)	NOMINAL CROSS SECTIONAL AREA mm2			CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	MAXIMUM TENSILE LOAD	NOMINAL WEIGHT
		Phase N Conductor	Earth Conductor	Control Conductor	mm	mm	mm	N	kg/km
3.6/6	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.1	1125	4120
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54	1575	4570
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	57.8	2250	5300
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	61.6	3150	6370
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.2	4275	7600
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70	5400	8990
	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	73.7	6750	10130
6/10	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.7	1125	4160
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54.6	1575	4610
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	58.4	2250	5340
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	62.2	3150	6410
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.8	4275	7640
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70.7	5400	9030
	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	74.4	6750	10170
8.7/15	3+3+3+ÜL	25	25/3E	2.5ST	6.1	50.5	55.6	1125	4030
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	52.3	57.6	1575	4480
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	55.8	61.3	2250	5210
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	59.3	65.2	3150	6230
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	62.8	68.9	4275	7350
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	66.2	72.6	5400	8540
12/20	3+3+3+ÜL	25	25/3E	2.5ST	6.1	52.9	58.2	1125	4330
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	54.7	60.2	1575	4780
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	58.3	64	2250	5540
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	61.7	67.8	3150	6570
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	65.2	71.5	4275	7690
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	68.7	75.3	5400	8920

(N)3GHSSHCH Cable Why Choose Huadong Cable?

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium (N)3GHSSHCH cable that meet the highest industry standards.
✅ Expert Manufacturing - Specialized in high-performance (N)3GHSSHCH cables
✅ Rigorous Standards - Compliant with IEC & international certifications
✅ Custom Solutions - Tailored specifications for your project needs
✅ Reliable Supply - Competitive pricing with guaranteed on-time delivery
