(N)TMCGEWOU Cable

(N)TMCGEWOU Cable Description:

Single core Medium Voltage (N)TMCGEWOU cables are manufactured to operate within an ambient temperature range of -40℃ to +80℃ and have a maximum short circuit temperature of +250℃. These cables are available in sizes ranging from 25mm2 to 240mm2. (N)TMCGEWOU cable normally used for short-length connections of transformers and switchgears, as well as suitabled for indoor and outdoor applications, and are frequently found in opencast mining operations.S uitable for indoor and outdoor applications.

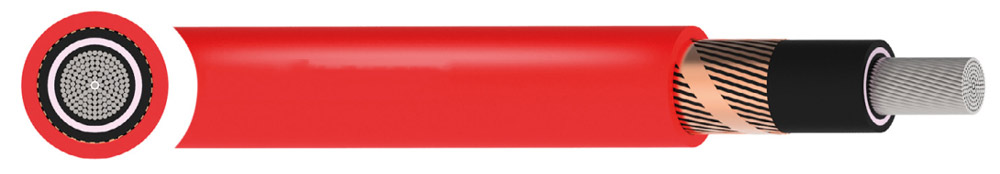

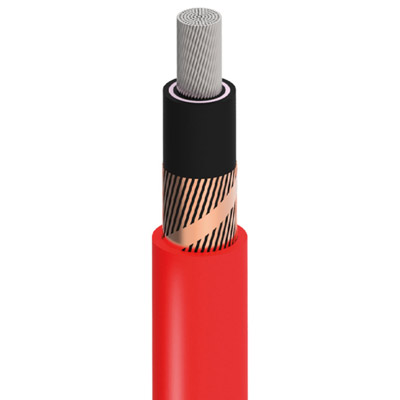

(N)TMCGEWOU Cable Construction

PHASE CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
EARTH CONDUCTOR	Overall Plain Copper Wire Screen
OUTER SHEATH	Rubber

(N)TMCGEWOU Cable Characteristics

	(N)TMCGEWÖU 3.6/6kV, 6/10kV and 8.7/15kV Cable	(N)TMCGEWÖU - 12/20kV, 14/25kV and 18/30kV Cable
Voltage Rating(Uo/U)	3.6/6kV 6/10kV 8.7/15kV	12/20V 14/25kV 18/30kV
Test Voltage	3.6/6kV: 11kV, 8.7/15kV 6/10kV: 17kV 8.7/15kV: 24kV	12/20kV: 29kV 14/25kV: 36kV 18/30kV: 43kV
Ambient Temperature	Fixed: -40°C to +80°C
Maximum Short Circuit  Temperature	+250°C
Minimum Bending Radius	Fixed: 6 x overall diameter

(N)TMCGEWOU Cable Specifications

VOLTAGE（kV）	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA（mm2）		CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	NOMINAL WEIGHT
		Phase Conductor	Earth Conductor	mm	mm	mm	kg/km
3.6/6	1	25	16E	6.8	19.3	20.3	730
3.6/6	1	35	16E	7.8	20.5	22.4	860
3.6/6	1	50	16E	9.4	22	23.9	1030
3.6/6	1	70	16E	11.2	23.8	25.7	1260
3.6/6	1	95	16E	12.7	26.4	28.3	1550
3.6/6	1	120	16E	14.4	28.2	30.2	1840
3.6/6	1	150	25E	16.3	30.6	32.6	2280
3.6/6	1	185	25E	17.6	32.5	34.5	2630
3.6/6	1	240	25E	20.6	35.6	37.6	3270
6/10	1	25	16E	6.8	19.3	20.9	770
6/10	1	35	16E	7.8	20.5	23	900
6/10	1	50	16E	9.4	22	24.5	1070
6/10	1	70	16E	11.2	23.8	26.3	1300
6/10	1	95	16E	12.7	26.4	28.9	1590
6/10	1	120	16E	14.4	28.2	30.9	1880
6/10	1	150	25E	16.3	30.6	33.3	2320
6/10	1	185	25E	17.6	32.5	35.2	2670
6/10	1	240	25E	20.6	35.6	38.3	3310
8.7/15	1	25	16E	6.8	21.2	23.1	820
8.7/15	1	35	16E	7.8	22.1	24	930
8.7/15	1	50	16E	9.4	23.6	25.5	1110
8.7/15	1	70	16E	11.2	26	27.9	1370
8.7/15	1	95	16E	12.7	27.6	29.5	1620
8.7/15	1	120	16E	14.4	29.4	31.4	1910
8.7/15	1	150	25E	16.3	32.8	34.8	2430
8.7/15	1	185	25E	17.6	33.8	35.8	2720
8.7/15	1	240	25E	20.6	37.8	39.8	3450
12/20	1	25	16E	6.8	22.4	24.3	870
12/20	1	35	16E	7.8	23.1	25	970
12/20	1	50	16E	9.4	25.4	27.3	1200
12/20	1	70	16E	11.2	27.2	29.1	1440
12/20	1	95	16E	12.7	28.8	30.8	1690
12/20	1	120	16E	14.4	31.6	33.6	2060
12/20	1	150	25E	16.3	34	36	2510
12/20	1	185	25E	17.6	35	37	2810
12/20	1	240	25E	20.6	39	41	3540
14/25	1	25	16E	6.8	24.6	26.5	980
14/25	1	35	16E	7.8	26.1	28	1130
14/25	1	50	16E	9.4	27.6	29.5	1320
14/25	1	70	16E	11.2	29.4	31.4	1570
14/25	1	95	16E	12.7	32	34	1900
14/25	1	120	16E	14.4	33.8	35.8	2210
14/25	1	150	25E	16.3	36.3	38.3	2680
14/25	1	185	25E	17.6	38.2	40.2	3060
14/25	1	240	25E	20.6	41.1	44	3730
18/30	1	25	16E	6.8	27.2	29.1	1120
18/30	1	35	16E	7.8	28.1	30	1240
18/30	1	50	16E	9.4	29.6	31.6	1440
18/30	1	70	16E	11.2	32.4	34.4	1770
18/30	1	95	16E	12.7	34.1	36.1	2040
18/30	1	120	16E	14.4	35.9	37.9	2360
18/30	1	150	25E	16.3	39.3	41.3	2920
18/30	1	185	25E	17.6	40.1	43	3230
18/30	1	240	25E	20.6	43.1	46	3910

(N)TMCGEWOU Cable Why Choose Huadong Cable?

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium (N)TMCGEWOU Cable that meet the highest industry standards.
✔ Robust Construction – Heavy-duty insulation and shielding for maximum durability
✔ Exceptional Flexibility – Engineered for easy handling in complex installations
✔ Extreme Environment Ready – Resistant to oils, chemicals, and temperature extremes
✔ Safety Certified – Complies with IEC, CE, and other international standards
