(N)TSCGEWÖEU (N)TSCGEWÖU Cable

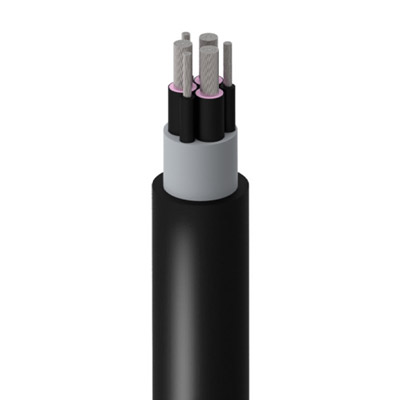

(N)TSCGEWÖEU Cable Description:

The medium voltage (N)TSCGEWÖEU(also calles (N)TSCGEWÖU) flexible mining, drilling and tunnelling cables is for monospiral drum and trailing operations for use in surface or underground installations. (N)TSCGEWÖEU cable is suited to installations under both environmental and mechanical stresses such as drag lines, shovels, dredges and drills under extreme mechanical stresses and abrasion during trailing operations in opencast mines. Halogen-free polyurethane sheathed version.
(N)TSCGEWÖU cables are used for power distribution to heavy-duty equipment and so are available in voltages of 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV. Maximum torsional stress and working speeds will differ according to cable type but not voltage. Cables are configurated as 3+3 - 3 power cores and 3 earth cores.

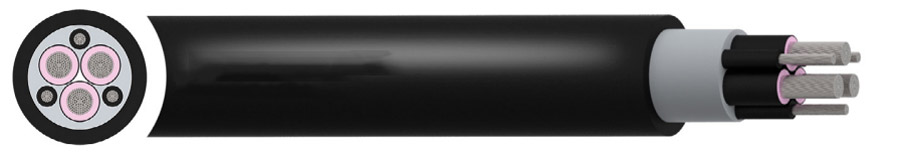

(N)TSCGEWÖEU Cable Construction:

	(N)TSCGEWÖU - 3.6/6kV Cable	(N)TSCGEWÖU - FO Cable	R-(N)TSCGEWÖU + FO Cable 3.6/6kV to 12/20	(N)TSCGEWÖU - ATB Cable	(N)TSCGEWÖU - ZH Cable	(N)TSCGEWÖU - Submersible cable

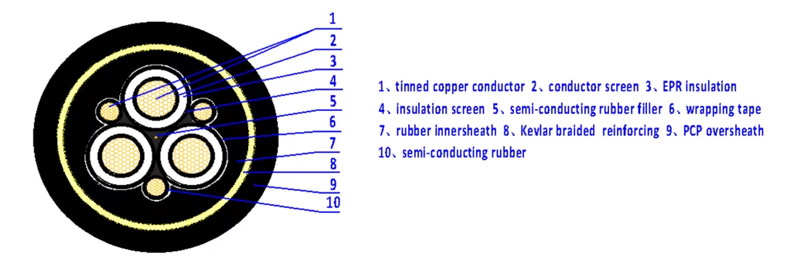

PHASE CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
EARTH CONDUCTOR	Class 5 Flexible Tinned Copper
FIBRE OPTICS	-	Transmission Data Kind 50/125 Multimode, 62.5/125 Multimode, 9/125 Singlemode Rubber Compound over the Twisted Cores	A-D(ZN)13Y 6, 12, 18 or 24 fibres G50/125, G62,5/125 or E9/125	-
CENTRAL FILLER	Semi-Conductive Compound on a Textile Polyester Support			Semi-Conductive Compound on a Textile Polyester Support
INNER SHEATH	Rubber Compound				Halogen-Free Polyurethane	EPR Rubber Compound Water Proofing
ANTI-TORSION BRAID	Polyester Braid between the Inner and Outer Sheath					-
OUTER SHEATH	Rubber			Abrasion Resistant Rubber Compound	Halogen-Free PUR (Polyurethane)	CM Rubber Compound Water Proofing

(N)TSCGEWÖU Cable Characteristics:

Voltage Rating (Uo/U)	3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV
Test Voltage	3.6/6kV: 11kV; 6/10kV: 17kV, 8.7/15kV: 24kV, 12/20kV: 29kV
Maximum Torsional Stress	±25°/m
Maximum Short Circuit Temperature	250°C
Mobile Condition	-25°C to+ 80°C
Static Condition	40°C to+ 80°C
Minimum Bending Radius	Fixed: 6 x overall diameter

(N)TSCGEWÖU Cable Specifications:

VOLTAGE(kV)	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (PHASE + EARTH) mm2		CONDUCTOR DIAMETER	NOMINAL OVERALL DIAMETER	MAXIMUM TENSILELOAD	NOMINAL WEIGHT
		Phase Conductor	Earth Conductor	mm	mm	N	kg/km
3.6/6	3+3	25	25/3	6.9	39.7	1500	2380
3.6/6	3+3	35	25/3	7.8	43.7	2100	2920
3.6/6	3+3	50	25/3	9.3	46.8	3000	3520
3.6/6	3+3	70	35/3	11.1	50.7	4200	4430
3.6/6	3+3	95	50/3	12.7	56.7	5700	5580
3.6/6	3+3	120	70/3	14.5	60.5	7200	6770
3.6/6	3+3	150	70/3	16.7	67.15	9000	8260
3.6/6	3+3	185	95/3	17.6	69	11100	9400
6/10	3+3	25	25/3	6.9	39.7	1500	2380
6/10	3+3	35	25/3	7.8	43.7	2100	2920
6/10	3+3	50	25/3	9.3	46.8	3000	3520
6/10	3+3	70	35/3	11.1	50.7	4200	4430
6/10	3+3	95	50/3	12.7	56.7	5700	5640
6/10	3+3	120	70/3	14.5	60.5	7200	6830
6/10	3+3	150	70/3	16.7	70.3	9000	8320
6/10	3+3	185	95/3	17.6	69	11100	9500
8.7/15	3+3	25	25/3	6.9	45.5	1500	2860
8.7/15	3+3	35	25/3	7.8		2100	3210
8.7/15	3+3	50	25/3	9.3	50.3	3000	3830
8.7/15	3+3	70	35/3	11.1	55.9	4200	5000
8.7/15	3+3	95	50/3	12.7	59.3	5700	5870
8.7/15	3+3	120	70/3	14.5	65	7200	7370
8.7/15	3+3	150	70/3	16.7	69.7	9000	8590
8.7/15	3+3	185	96/3	17.6	71.8	11100	9750
12/20	3+3	25	25/3	6.9	47.2	1500	3080
12/20	3+3	35	25/3	7.8	52.6	2100	3460
12/20	3+3	50	25/3	9.3	54.6	3000	4310
12/20	3+3	70	35/3	11.1	58.4	4200	5310
12/20	3+3	95	50/3	12.7	61.9	5700	6180
12/20	3+3	120	70/3	14.5	67.5	7200	7730
12/20	3+3	150	70/3	16.7	72.2	9000	8970

(N)TSCGEWÖU Cable Applications:

(N)TSCGEWÖU	Flexible cable for fixed energy distribution in mines and alongside material handling equipment
(N)TSCGEWÖU FO fibre optics	Flexible reeling cable with integrated fibre optic wires for high and extreme mechanical stresses, including torsional stress, deflection into different planes, and high reeling speed. Suitable for indoor and outdoor applications
(N)TSCGEWÖU ATB higher flexibility	Flexible cable for energy supply to heavy mobile equipment such as drag lines, shovels, dredges, drills, under extreme mechanical stresses and abrasions during trailing operations in opencast mines
(N)TSCGEWÖU ZH zero halogen	Flexible cable for energy supply to heavy mobile equipment such as drag lines, shovels, dredges, drills, under extreme mechanical stresses and abrasions during trailing operations in opencast mines. Halogen-free polyurethane sheathed version
(N)TSCGEWÖU submersible	Flexible supply cable for permanent use in salty and brackish water immersion up to 300 metres under high mechanical stress. For applications such as pumps, dredges and floating docks. It is suitable for trailing operations of opencast mining equipment
R-(N)TSCGEWÖU FO	Reduced dimension festoon reeling cable with integrated fibre optics.
