NGFLCGÖU NGFLGÖU Flat Festoon Cable

NGFLCGÖU & NGFLGÖU Flat Festoon Cable Description:

NGFLCGÖU & NGFLGÖU flat festoon fable especially used for lifts, cranes, floor conveyor systems, elevators and festoon systems. Flat structure means suitable for installations where space is at premium and requires smaller bending radius.

NGFLCGÖU & NGFLGÖU Flat Festoon Cable Characteristics

	(N)GFLGÖU Flat Festoon Cable	(N)GFLCGÖU Flat Festoon Cable
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed: -40ºC to +90ºC Flexed: -35ºC to +90ºC	Flexed: -50°C to +90°C Mobile: -30°C to +90°C
Minimum Bending Radius	Fixed: 5 x overall diameter Moving: 10 x overall diameter
Maximum Tensile Load	-	15N/mm for static
Travel	-	Festoon Systems: up to 180m/min Gantry (reeling): No application

NGFLCGÖU & NGFLGÖU Flat Festoon Cable Construction

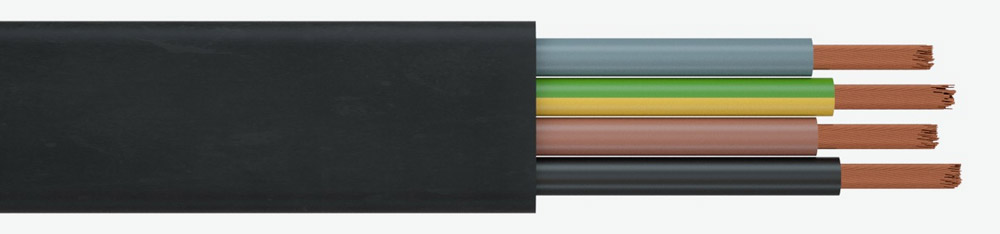

	(N)GFLGÖU Flat Festoon Cable	(N)GFLCGÖU Flat Festoon Cable
Conductor	Class 6 Extra Finely Stranded Bare Copper
Insulation	EPR (Ethylene Propylene Rubber)
Sheath	CR (Chloroprene Rubber)

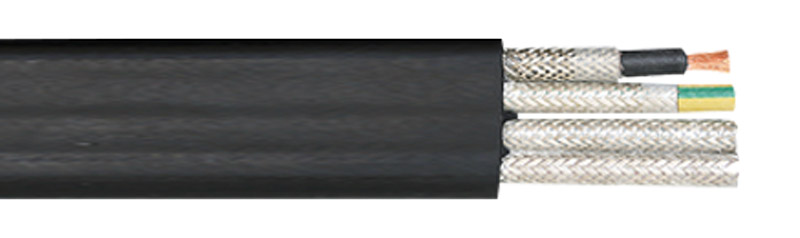

Screen	-	TCWB (Tinned copper wires braiding)
Core Identification	4cores: Green/Yellow Brown Black Grey 5cores: Green/Yellow Blue Brown Black Grey 7 cores and over: Black with white numbers Green/Yellow

NGFLGÖU Flat Festoon Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WIDTH OF CABLE	NOMINAL HEIGHT OF CABLE	NOMINAL WEIGHT	TENSILE STRENGTH
	mm2	mm	mm	kg/km	N
4	1.5	17.5	6.2	200	90
4	2.5	21.1	7.5	280	150
4	4	26.1	9.1	410	240
4	6	29.1	9.5	600	360
4	10	33.1	11.1	800	600
4	16	37.8	12.9	1150	960
4	25	49.5	15.1	1700	1500
4	35	54.9	17.1	2200	2100
4	50	62.8	18.9	3000	1500
4	70	71.2	22.1	3910	4200
4	95	79.8	24.8	5300	5700
4	120	85.8	27.2	6400	7200
5	1.5	21.5	6.2	240	112
5	2.5	27.1	7.5	332	187
5	4	32.1	9.1	560	300
5	6	35.1	9.5	650	450
5	10	44.1	11.1	1135	750
5	16	49.8	12.9	1450	1200
5	25	59.8	16.1	2200	1875
7	1.5	29.1	6.2	360	157
7	2.5	34.9	7.5	520	262
7	4	41.9	9.1	700	420
7	6	42.1	9.5	850	630
7	25	79.7	16.1	2930	2625
7	35	88.2	17.1	3820	3675
8	1.5	31.5	6.2	370	180
8	2.5	39.1	7.5	550	300
10	1.5	39.9	6.5	460	225
10	2.5	47.9	8.1	680	375
12	1.5	47.1	6.5	620	270
12	2.5	56.1	8.1	800	450
16	1.5	4.2	6.5	900	360
24	1.5	55.1	12.5	1300	540
24	2.5	68.2	16.2	1480	900

NGFLCGÖU Flat Festoon Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER MM		NOMINAL WEIGHT
	mm2	Minimum	Maximum	kg/km
4	1.5	6.2 x 17.8	7.2 x 20.4	220
4	2.5	7.2 x 21.6	8.3 x 24.8	320
4	4	10.1 x 27.8	11.6 x 31.9	505
4	6	10.1 x 29.8	11.6 x 34.1	605
4	10	11.0 x 34.6	12.7 x 39.6	840
4	16	13.0 x 39.8	14.9 x 45.7	1180
4	25	14.4 x 45.1	16.5 x 51.7	1605
4	35	16.3 x 52.8	18.7 x 60.5	2520
4	50	19.1 x 61.8	21.7 x 66.0	2860
4	70	20.8 x 71.8	24.75 x 75.8	4790
4	95	23.25 x 80.2	27.25 x 84.0	5950
4	120	28.05 x 91.8	31.05 x 96.8	7750
5	1.5	5.95 x 26.55	7.95 x 28.55	440
5	2.5	7.25 x 30.65	9.25 x 32.65	590
5	4	8.55 x 34.75	10.55 x 36.75	770
5	6	9.15 x 37.75	11.15 x 39.75	920
5	10	10.65 x 45.25	12.65 x 47.25	1290
5	25	14.85 x 61.45	16.85 x 63.45	2490
7	1.5	5.95 x 34.85	7.95 x 36.85	570
7	2.5	7.25 x 40.35	9.25 x 42.35	790
7	4	8.55 x 45.85	10.55 x 47.85	1010
7	6	9.15 x 50.05	11.15 x 52.05	1220
7	10	10.0 x 57.6	12.0 x 59.6	1550
7	25	15.0 x 82.8	17.0 x 84.8	3350
7	35	16.3 x 94.8	18.7 x 99.8	4500
8	1.5	7.2 x 34.6	8.3 x 39.6	470
8	2.5	7.25 x 43.2	9.25 x 45.2	830
10	1.5	7.55 x 47.9	8.55 x 49.9	810
12	1.5	8.1 x 52.0	8.0 x 54.0	796
12	2.5	7.75 x 65.1	9.6 x 69.0	1020
24	1.5	8.15 x 112.6	9.15 x 114.6	1930
24	2.5	9.05 x 130.6	11.05 x 132.6	2760

NGFLCGÖU & NGFLGÖU Flat Festoon Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium NGFLCGÖU NGFLGÖU Flat Festoon Cable that meet the highest industry standards.

✔ Optimized Flexibility – Low-bend radius design for smooth operation in continuous movement
✔ Space-Saving Flat Profile – Reduces system wear and improves cable management
✔ Ultra-Durable Construction – Abrasion-resistant PUR jacket with high tensile strength
✔ All-Weather Reliability – Resistant to oils, chemicals, UV, and extreme temperatures (-40°C to +90°C)
