(N)SHOU O/J 0.6/1kV Cable

(N)SHÖU Cable Application:

(N)SHÖU O/J 0.6/1kV Cable is flame-retardant, UV resistant, and resistant to abrasions, cuts and tears, as well has having good resistance to greases and oils. This range is suitable for installation in dry, damp, wet and in hazardous environments, they can be permanently submersed in fresh water, salt water, storm water, oily water and sewage-contaminated water, to a depth of 100 metres.

This range has a temperature rating of -25°C to +80°C when flexed and -40°C to +80°C when used in a fixed installation. Like many other mining power cables, including the (N)SSHÖU and (N)SSCHÖU cables, the (N)SHÖU cable is generally manufactured to German standard VDE0250 part 812.

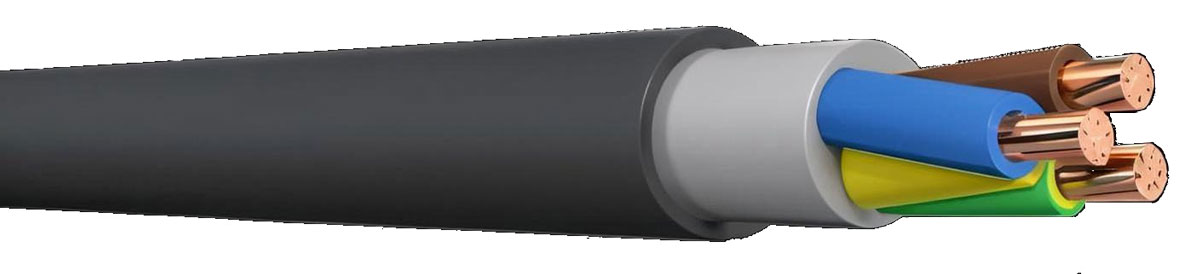

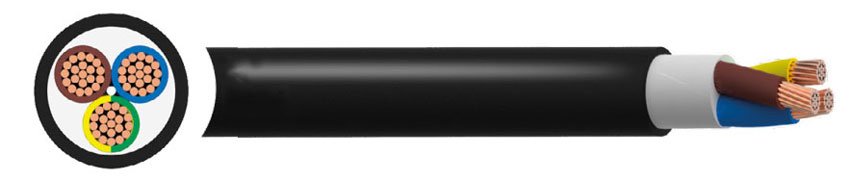

(N)SHOU O/J 0.6/1kV Cable Construction:

Phase Conductor	Class 5 flexible copper
Insulation	Rubber compound
Inner Sheath	Rubber compound
Outer Sheath	Heavy duty rubber compound
Sheath Colour	Black

(N)SHOU Cable Characteristics:

Voltage Rating Uo/U	0.6/1kV
Test Voltage	3kV
Ambient Temperature	Fixed: -40°C to +80°C Flexed: -25°C to +80°C
Maximum Short Circuit Temperature	+250°C
Minimum Bending Radius	Fixed: 4 x overall diameter Flexed: 5 x overall diameter

(N)SHOU Cable Specifications：

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	MAXIMUM TENSILE LOAD	NOMINAL WEIGHT
	mm2	mm	mm	mm	N	kg/km
3	1.5	1.5	9.7	10.3	68	141
3	2.5	1.9	11.1	11.7	113	200
3	4	2.4	13.2	13.8	180	297
3	6	2.9	14.4	15	270	381
3	10	3.8	17.4	18.5	450	590
3	16	4.8	19.5	20.6	720	797
3	25	6.1	23.7	24.8	1125	1206
3	35	7.2	26.6	27.7	1575	1649
3	50	8.9	31.8	33	2250	2195
3	70	10.6	35.3	36.5	3150	3124
3	95	12.3	40.9	42.6	4275	4100
3	120	13.8	43.4	45.1	5400	4723
3	150	15.5	47.8	49.5	6750	5916
3	185	17	53.1	55.4	8325	7271
4	1.5	1.5	10.5	11.1	90	173
4	2.5	1.9	12.9	13.5	150	274
4	4	2.4	14.3	14.9	240	356
4	6	2.9	15.7	16.3	360	459
4	10	3.8	19.1	20.2	600	729
4	16	4.8	22	23.1	960	1038
4	25	6.1	27	28.1	1500	1576
4	35	7.2	29.2	30.4	2100	2078
4	50	8.9	35	36.2	3000	2967
4	70	10.6	38.8	40.5	4200	3931
4	95	12.3	45.1	46.8	5700	5165
4	120	13.8	50	51.8	7200	6152
4	150	15.5	55	57.3	9000	7537
4	185	17	61	63.3	11100	9420
5	1.5	1.5	11.4	12	113	214
5	2.5	1.9	14	14.6	188	328
5	4	2.4	15.6	16.2	300	434
5	6	2.9	17.5	18.6	450	594
5	10	3.8	20.9	22	750	898
5	16	4.8	24.1	25.2	1200	1283
5	25	6.1	29.6	30.8	1875	1965
7	1.5	1.5	14.5	15.1	158	313
7	2.5	1.9	16.8	17.4	263	461
12	1.5	1.5	16.8	17.4	270	422
12	2.5	1.9	19.5	20.6	450	653
18	1.5	1.5	19.4	20.5	405	613
18	2.5	1.9	23.3	24.4	675	922
24	1.5	1.5	20.9	22	540	752
24	2.5	1.9	25.2	26.3	900	1147

(N)SHÖU O/J 0.6/1kV Cable Why Choose Huadong?

As a professional cable manufacturer, Huadong Cable delivers top-quality (N)SHÖU O/J 0.6/1kV cables designed for reliability and performance.
✔ Robust Construction – Our cables feature heavy-duty insulation and shielding, ensuring excellent mechanical protection and long-term durability in demanding environments.
✔ High Voltage Stability – Rated for 0.6/1kV, these cables provide safe and efficient power distribution in industrial, utility, and infrastructure projects.
✔ Weather & Chemical Resistance – Engineered to withstand moisture, oils, and extreme temperatures, making them ideal for outdoor and harsh applications.
✔ Compliance & Safety – Manufactured to meet IEC, VDE, and other international standards, guaranteeing reliable performance and electrical safety.
✔ Custom Solutions – Need specific conductor sizes, shielding, or length requirements? We offer tailor-made cables to fit your exact needs.
✔ Competitive Pricing & Fast Delivery – High-quality cables at cost-effective rates, backed by efficient global logistics for timely project execution.
Choose Huadong Cable for dependable (N)SHÖU O/J - 0.6/1kV cables—where quality meets innovation!
