(N)TSKCGEWÖU Cable

(N)TSKCGEWÖU Cable Description:

(N)TSKCGEWÖU Cable is a medium voltage cable with fibre optic for data and monitoring， voltage rating is 3.6/6kV, 6/10kV, 8.7/15kV, or 12/20kV. These cables are laid up as 3+3 configurations - 3x power cores with flexible Earth Conductor and fibre optic cores. (N)TSKCGEWÖU cable is often used in cranes, hoists, and conveyors. These power and fibre cables are designed for opencast and sub-surface mining applications and in heavy industry marine applications under torsional stress of up to 25o/m and tensile stresses of 30N/mm2 across different planes.

(N)TSKCGEWÖU Cable Characteristics:

Voltage Rating Uo/U	3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV
Test Voltage	3.6/6kV: 11kV | 6/10kV: 17kV | 8.7/15kV: 24kV | 12/20kV: 29kV
Maximum Torsional Stress	± 25°/m
Maximum Tensile Load	30N/mm2
Maximum Working Speed	240m/min
Temperature Rating	Maximum Short-Circuit temperature:250°C Flexing: -30°C to + 90°C Fixed: -50°C to + 90°C
Minimum Bending Radius	Fixed: 6x overall diameter Flexed: 10 x overall diameter

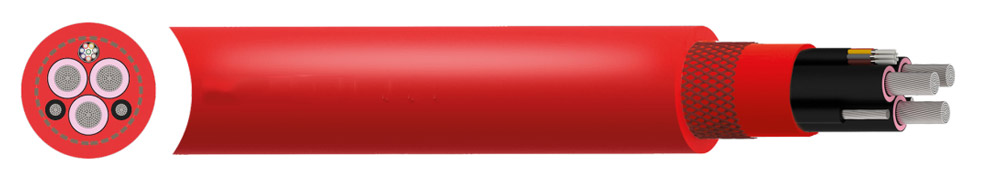

(N)TSKCGEWÖU Cable Construction:

PHASE CONDUCTOR	Class 5 Flexible Stranded Tinned Conductor
INSULATION	Rubber Compound (Phase Conductor only)
EARTH CONDUCTOR	Class 5 Flexible Tinned Copper Conductor
CENTRAL FILLER	Semi-conductive Compound
FIBRE OPTICS	50/125 Multimode, 62.5/125 Multimode, 9/125 Singlemode
INNER SHEATH	Rubber Compound
ANTI-TWISTING ELEMENT	Polyester Braid
OUTER SHEATH	Rubber

(N)TSKCGEWÖU Cable Specifications:

VOLTAGE kV	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA OF PHASE CONDUCTOR	NOMINAL CROSS SECTIONAL AREA OF EARTH CONDUCTOR	NOMINAL OVERALL DIAMETER	MAXIMUM TENSILE LOAD	NOMINAL WEIGHT
		mm2	mm2	mm	N	kg/km
3.6/6	3+ 3	25	25	21.8	1500	2380
3.6/6	3+ 3	35	25	43.8	2100	2920
3.6/6	3+ 3	50	25	46.9	3000	3520
3.6/6	3+ 3	70	35	50.7	4200	4430
3.6/6	3+ 3	95	50	56.7	5700	5580
3.6/6	3+ 3	120	70	60.5	7200	6770
3.6/6	3+ 3	150	70	67.2	9000	8260
6/10	3+ 3	25	25	39.8	1500	2380
6/10	3+ 3	35	25	43.8	2100	2920
6/10	3+ 3	50	25	46.9	3000	3520
6/10	3+ 3	70	35	50.7	4200	4430
6/10	3+ 3	95	50	56.7	5700	5640
6/10	3+ 3	120	70	60.5	7200	6830
6/10	3+ 3	150	70	67.2	9000	8320
8.7/15	3+ 3	25	25	45.6	1500	2860
8.7/15	3+ 3	35	25	47	2100	3210
8.7/15	3+ 3	50	25	50.3	3000	3830
8.7/15	3+ 3	70	35	55.9	4200	5000
8.7/15	3+ 3	95	50	59.3	5700	5870
8.7/15	3+ 3	120	70	65	7200	7370
8.7/15	3+ 3	150	70	69.7	9000	8590
12/20	3+ 3	25	25	47.3	1500	3080
12/20	3+ 3	35	25	49.7	2100	3460
12/20	3+ 3	50	20	54.6	3000	4310
12/20	3+ 3	70	35	58.4	4200	5310
12/20	3+ 3	95	50	62	5700	6180
12/20	3+ 3	120	70	67.6	7200	7730
12/20	3+ 3	150	70	72.2	9000	8970
