NSHTOU Drum Reeling Cable

NSHTOU Drum Reeling Cable Description:

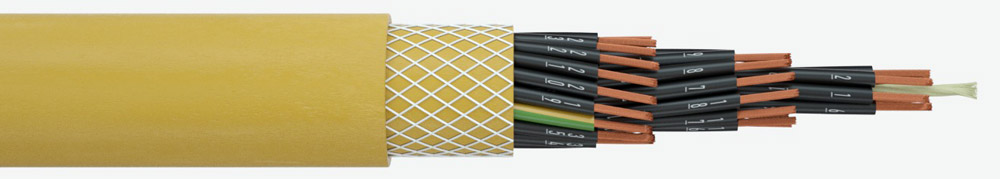

Our (N)SHTOU cable range (alternative spelling NSHTOEU), can be used wherever cables are frequently reeled, unreeled, or guided by roller trains. (N)SHTOU cable designed for power and signalling mobile connections, under severe mechanical stresses (tensile strength and torsion), for heavy duty conditions, abrasion and crushing. The cable is typically used in cable winding reels for harbour cranes, container cranes, conveyors, handling machines and mining and tunnelling equipment, and have common use within the mining industry for mobile equipment and dynamic static processing equipment

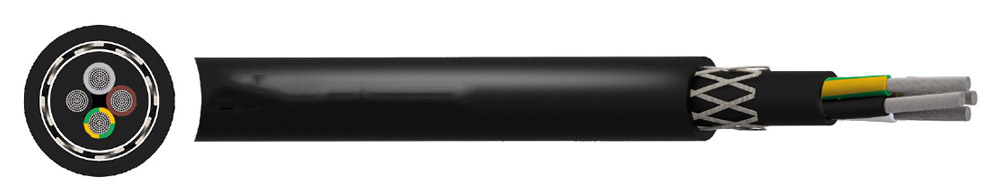

Our NSHTÖU-O and (N)SHTÖU-O cables (without earth conductor) and the NSHTÖU-J and (N)SHTÖU-J cables (without green/yellow earth conductor) offer resistance against oils and UV light. Additional resistance to the operational stresses is provided by an anti-torsion polyester braid. NSHTÖU and (N)SHTÖU cables are suitable for outdoor installations and in dry, moist or wet rooms. They have an operating temperature range of -25oC to +60oC when flexed and -40oC to +60oC when fixed.


NSHTOU Cable Construction



	NSHTÖU- O/J 0.6/1kV cable	(N)SHTÖU-J + FO 0.6/1kV cable	(N)SHTOU-O/J PUR 0.6/1kV Cable	(N)SHTOU-V Vertical reeling cable	(N)SHTÖU-K 0.6/1kV cable	(N)SHTOU-FO L~WL Reeling Cable
CONDUCTOR	Class 5 Flexible Stranded Tinned Copper	Class 5 Flexible Stranded Tinned or Bare Copper	Class 5 Flexible Stranded Tinned Copper	Class 5 tinned Copper	Class 5 flexible stranded tinned Copper
INSULATION	Rubber Compound			HEPR (Hard Ethylene Propylene Rubber)
OPTICAL FIBRES		-				6, 12, 18 or 24 fibres laid up around a central support element
INNER SHEATH	Rubber Compound		Halogen Free PUR (Polyurethane)	Rubber compound
BRAID	Anti-Twist Polyester			Anti-torsion textile braid embedded in sheath
OUTER SHEATH	Rubber		Halogen-Free PUR (Polyurethane)	Rubber compound
SEPARATOR	-		-
CONDUCTOR SCREEN	-		-
INSULATION SCREEN	-		-
INDIVIDUAL SCREEN	-		-
EARTH CONDUCTOR	-	Tinned Copper Conductor, Rubber Insulated	-
FIBRE OPTIC MODULE	-	A-D(ZN)13Y 6, 12, 18 or 24 fibres G50/125, G62,5/125 or E9/125	-
OUTER SHEATH COLOUR	-	Yellow	-



NSHTOU Cable Characteristics

Voltage Rating Uo/U	0.6/1kV
Test Voltage	4kV
Maximum Torsional Stress	± 25°/m
Maximum Tensile Load	30N/mm2
Maximum Working Speed	180m/min
Temperature Rating	Flexing: -40°C to 90°C Flexed: -50°C to 90°C
Minimum Bending Radius	Fixed: 4 x overall diameter Flexing: 5 x overall diameter



NSHTÖU Cable Reeling Speeds:

The NSHTÖU cable portfolio is defined by the cable reeling speeds, determining which specification is most appropriate for your high-speed crane reeling operations.

NSHTÖU	Maximum working speed 120m/min
(N)SHTÖU PUR	Maximum working speed 180m/min
(N)SHTÖU-K	Festoon: up to 240m/min / Reeling: up to 120m/min horizontal
(N)SHTÖU-V	Up to 180m/min horizontal / 120m/min main gantry
(N)SHTÖU-FO	Up to 180m/min horizontal / 120m/min vertical



NSHTOU Cable Specifications



NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	NOMINAL OVERALL DIAMETER	MAXIMUM TENSILE LOAD	NOMINAL WEIGHT
	mm2	mm	mm	N	kg/km
3	25+16	6.9	27.3	2250	1390
3	35+16	7.8	29.8	3150	1740
3	50+25	9.3	35	4500	2470
3	70+35	11.1	38.9	6300	3290
3	95+50	12.7	43.2	8550	4090
3	120+70	14.5	47.1	10800	5220
3	150+70	16.7	53.7	13500	6460
3	185+95	17.6	57.3	16650	7720
4G	1.5	1.5	11.7	2180	170
4G	2.5	1.9	19.9	2300	220
4G	4	2.4	16.7	480	380
4G	6	2.9	18.2	720	490
4G	10	3.8	21.5	1200	720
4G	16	4.8	24	1920	990
4G	25	6.9	30.7	3000	1610
4G	35	7.8	33.7	4200	2090
4G	50	9.3	38.2	6000	2830
4G	70	11.1	43.6	8400	3720
4G	95	12.7	47.5	11400	4770
4G	120	14.5	52.7	14400	6040
4G	150	16.7	59	18000	7520
5G	1.5	1.5	12.3	225	190
5G	2.5	1.9	13.7	2375	260
5G	4	2.4	18	600	460
5G	6	2.9	19.6	900	590
5G	10	3.8	23.4	1500	870
5G	16	4,8	36	2400	1200
5G	25	6.9	33.4	3750	1970
5G	35	7.8	36.5	5250	2560
7G	1.5	1.5	14.1	2315	260
7G	2.5	1.9	15.8	2525	360
12G	1.5	1.5	17.9	2540	450
12G	2.5	1.9	20.4	2900	590
18G	1.5	1.5	18.3	2810	480
18G	2.5	1.9	20.8	3350	660
24G	1.5	1.5	20.9	3080	630
24G	2.5	1.9	24	3800	910
30G	1.5	1.5	22.9	3350	770
30G	2.5	1.9	26,4	4250	1120
36G	1.5	1.5	23.3	3620	800
36G	2.5	1.9	26.8	4700	1170
42G	1.5	1.5	24.8	3890	910
42G	2.5	1.9	29.3	5150	1390

(N)SHTOU Cable Why Choose Huadong Cable

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium NSHTOU drum reeling cable that meet the highest industry standards.
✔ Heavy-Duty Construction – Reinforced design withstands repeated winding/unwinding
✔ Superior Flexibility – Specially engineered for smooth operation on cable reels
✔ All-Weather Performance – Resists oil, abrasion, and extreme temperatures
✔ Safety Certified – Complies with IEC and international standards
