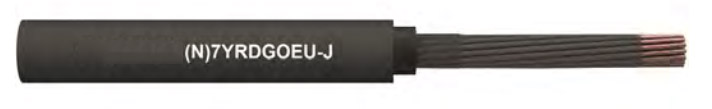

(N)7YRDGOEU Reeling Cable

The (N)7YRDGOEU reeling cable is a highly flexible, low-voltage trailing connection cable specifically designed for simple reeling applications. It is engineered primarily for mechanical systems that experience repeated pulling and winding, such as spring-driven cable reels

(N)7YRDGOEU Reeling Cable Design

Conductor：Bare electrolytic copper, very finely stranded, class FS
Insulation：ETFE for good mechanical and electrical characteristics (see also DIN VDE 0207)
Core identification：Black colored insulation with numbers printed in white, earth conductor green-yellow
Core arrangement：Laid-up in layers
Inner sheath：Basic material EPR, color: black
Outer sheath：Basic material EVA, color: black
Marking : EASYFLEX (N)7YRDGOEU-J (nr. of cores)x(cross-section) 0,6/1 kV

 (N)7YRDGOEU Reeling Cable Electrical Parameters

Rated voltage：0.6/1 kV (600/1000V) Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC：0.9/1.8 kV
AC Test Voltage：3.5 kV (5 Min.)
Current Carrying Capacity description：Acc. to DIN VDE 0298-4

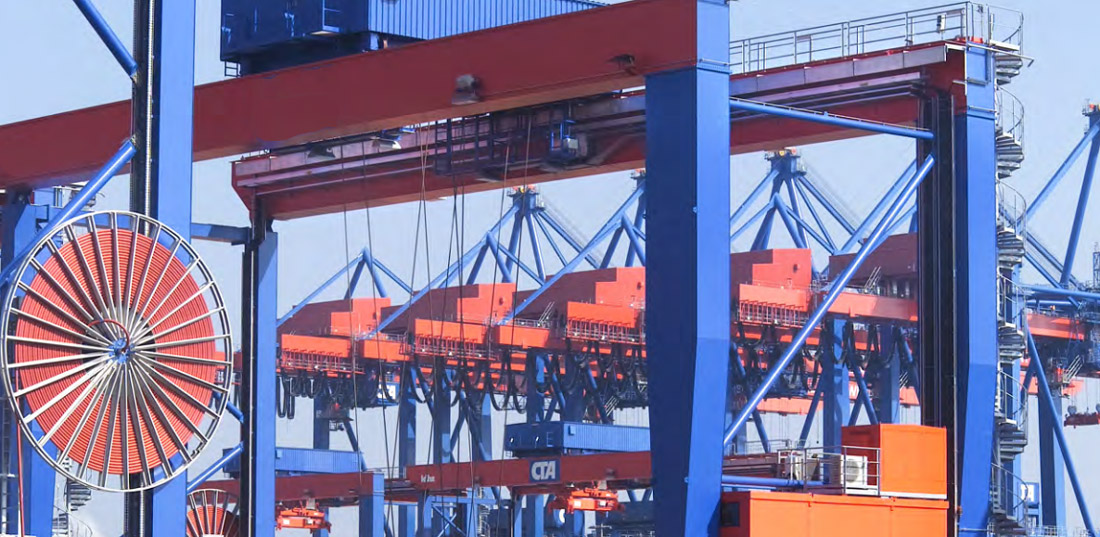

(N)7YRDGOEU Reeling Cable Application

The (N)7YRDGOEU reeling cable is specifically designed for spring-driven reel systems on wastewater treatment machinery (like clarifiers and aerators) and industrial hoists, reliably handling continuous winding and trailing at speeds up to 80 m/min and tensile loads up to 15 N/mm².

(N)7YRDGOEU Reeling Cable Spec

Number of cores x cross section	Conductor diameter max. mm	Outer diameter min. mm	Outer diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity (1)	Short Circuit Current (conduc- tor)
(N)7YRDGOEU-J Control cables
7×1,5	1.6	13.6	15	90	300	150	13.3	23	0.21
12×1,5	1.6	15.1	17.1	103	425	270	13.3	23	0.21
18×1,5	1.6	17.4	19.4	116	580	400	13.3	23	0.21
24×1,5	1.6	21.4	23.4	140	830	540	13.3	23	0.21
4×2,5	2	12	13.6	82	265	150	7.98	30	0.36
5×2,5	2	12.9	14.5	87	310	180	7.98	30	0.36
7×2,5	2	14.6	16.6	100	415	260	7.98	30	0.36
12×2,5	2	16.7	18.7	112	575	450	7.98	30	0.36
18×2,5	2	19.3	21.3	128	795	670	7.98	30	0.36
24×2,5	2	24.1	26.1	157	1115	900	7.98	30	0.36
(N)7YRDGOEU-J Power cables
4×4	3	14.3	16.3	98	360	240	4.95	41	0.57
5×4	3	15.4	17.4	104	435	300	4.95	41	0.57
4×6	3.6	15.7	17.7	106	470	360	3.3	53	0.86
5×6	3.6	16.9	18.9	113	555	450	3.3	53	0.86
4×10	4.6	18.1	20.1	121	690	600	1.91	74	1.43
5×10	4.6	19.7	21.7	130	820	750	1.91	74	1.43
4×16	5.6	21.9	23.9	143	1035	960	1.21	99	2.29
5×16	5.6	23.8	25.8	155	1240	1200	1.21	99	2.29
