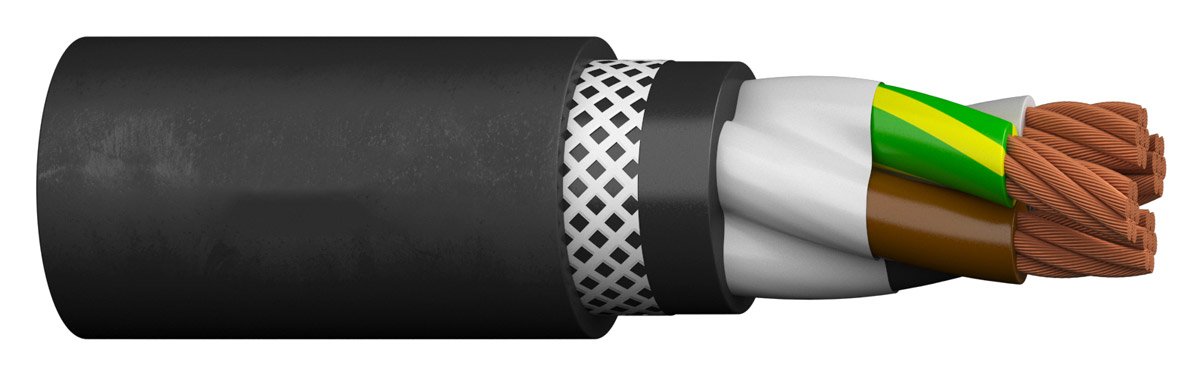

PUR-HF D12Y11YU11Y Reeling Cable

PUR-HF D12Y11YU11Y is a standardized VDE type designation for PUR-HF, a high-performance, low-voltage flexible reeling cable. D12Y11YU11Y cable is specifically engineered to handle intense mechanical stresses. It is widely deployed on motorized cable reels, heavy-duty hoisting gears, transport systems, and container cranes.

PUR-HF D12Y11YU11Y Reeling Cable Features

Conductor：Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation：Halogen free compound, based on polyester
Core identification：Up to 5 cores: colored in accordance with DIN VDE 0293-308 From 6 cores: natural color with black numbers
Core arrangement：Central textile carrier unit; cores twisted with short length of lay
Inner sheath：Polyurethan, halogen free, flame retardant
Reinforcement：Open braiding of support
Outer sheath：Polyurethane, halogen free, flame retardant, opaque; Colour: black
Marking White imprint: TROMMELFLEX PUR-HF -J/-O (number of cores) x (cross-section) (week/year)

PUR-HF D12Y11YU11Y Reeling Cable Mechanical Parameters

Max. tensile load on the conductor：25 N/mm²
Torsional stress：± 50 °/m
Min. bending radius：6 x D (Proved by flexing tests acc. to HD 22.2 part 3.1)
Travel speed：- Reeling operation: no restriction (for speed beyond 180 m/min please consult the manufacturer);
Festoon system: up to 180 m/min.

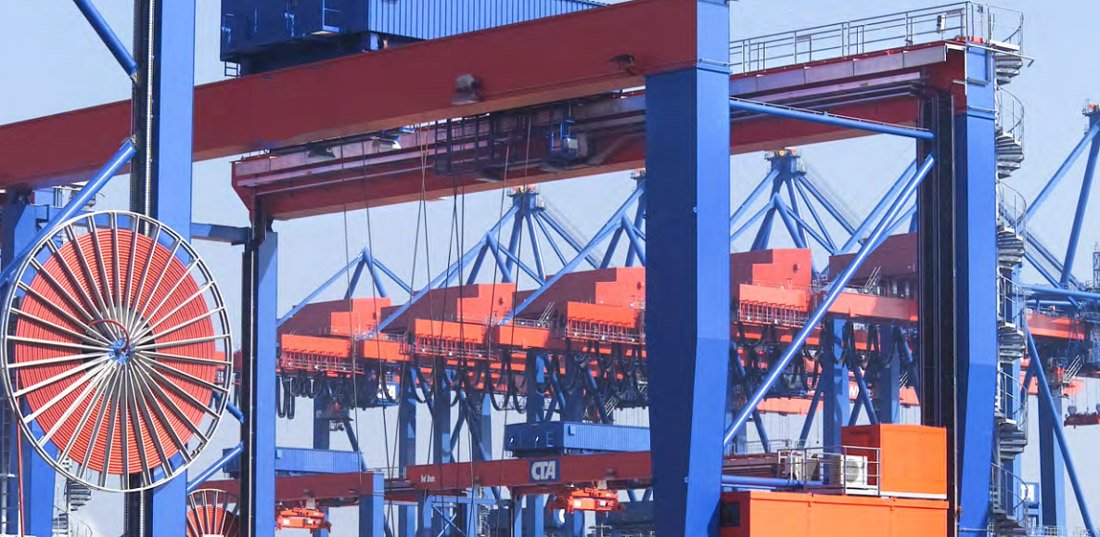

Where is the D12Y11YU11Y Cable Used?

The PUR-HF D12Y11YU11Y Reeling Cable is widely deployed across global industrial infrastructure for heavy equipment requiring rapid linear or vertical movement:

1. Ports & Container Terminals: Perfect for motorized cable reels on Ship-to-Shore (STS) cranes, Rail-Mounted Gantry (RMG) cranes, and Rubber-Tired Gantry (RTG) cranes.
2. Mining & Bulk Material Handling: Ideal for large stacker-reclaimers, bucket wheel excavators, and long-distance heavy conveyor drive systems.
3. Heavy Industry & Steel Mills: Deployed on overhead traveling cranes, scrap magnets, ladle cars, and spring-operated utility reels.
4. Civil & Environmental Engineering: Used on scraping bridges at sewage treatment plants and water lock gates.

PUR-HF D12Y11YU11Y Reeling Cable Spec

Number of cores x cross section	Conductor diameter max. mm	Outer diameter min. mm	Outer diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Conductor resistance at 20°C max.	Currentcarrying capacity	Short Circuit Current
PUR-HF D12Y11YU11Y-J Control cables
7×1,5	1.5	12	13.2	79	230	260	13.3	23	0.21
12×1,5	1.5	15.5	16.7	100	360	450	13.3	23	0.21
18×1,5	1.5	16.9	18.1	109	470	670	13.3	23	0.21
24×1,5	1.5	19	20.2	121	600	900	13.3	23	0.21
30×1,5	1.5	21.1	22.5	135	750	1120	13.3	23	0.21
7×2,5	2	13.5	14.7	88	310	430	7.98	30	0.36
12×2,5	2	18.9	20.1	121	550	750	7.98	30	0.36
18×2,5	2	19.2	20.4	122	670	1120	7.98	30	0.36
24×2,5	2	21.5	22.9	137	870	1500	7.98	30	0.36
30×2,5	2	24.4	26	156	1090	1870	7.98	30	0.36
36×2,5	2	27.4	29	174	1410	2250	7.98	30	0.36
PUR-HF D12Y11YU11Y-J power cables, four core
4×1,5	1.5	10	11.2	67	150	150	13.3	23	0.21
4×2,5	2	11.1	12.2	74	200	250	7.98	30	0.36
4×4	2.5	12.3	13.5	81	280	400	4.95	41	0.57
4×6	3.1	14.1	15.2	92	370	600	3.3	53	0.86
4×10	4.1	17.4	18.6	112	600	1000	1.91	74	1.43
4×16	5.1	20	21.4	128	850	1600	1.21	99	2.29
4×25	6.2	23.5	24.9	149	1230	2500	0.78	131	3.58
4×35	7.8	28.5	30.2	181	1760	3500	0.55	162	5.01
PUR-HF D12Y11YU11Y-J power cables, five core
5×1,5	1.5	10.6	11.7	71	170	180	13.3	23	0.21
5×2,5	2	11.8	13	78	230	310	7.98	30	0.36
5×4	2.5	13.3	14.5	87	330	500	4.95	41	0.57
5×6	3.1	16.4	17.6	106	480	750	3.3	53	0.86
5×10	4.1	18.7	19.9	119	720	1250	1.91	74	1.43
5×16	5.1	21.7	23	139	1030	2000	1.21	99	2.29
5×25	6.2	28.2	29.8	179	1500	3120	0.78	131	3.58
5×35	7.8	31	33	198	2140	4370	0.55	162	5.01

Looking for a Reliable D12Y11YU11Y Reeling Cable Supplier?

As a professional industrial cable provider, we supply the full spectrum of PUR-HF D12Y11YU11Y cables, including popular power cross-sections (4G16, 4G25, 4G35, 4G50) and multi-core control configurations (12G1.5, 18G2.5). All products conform to strict international quality standards, offering premium durability with competitive lead times.
