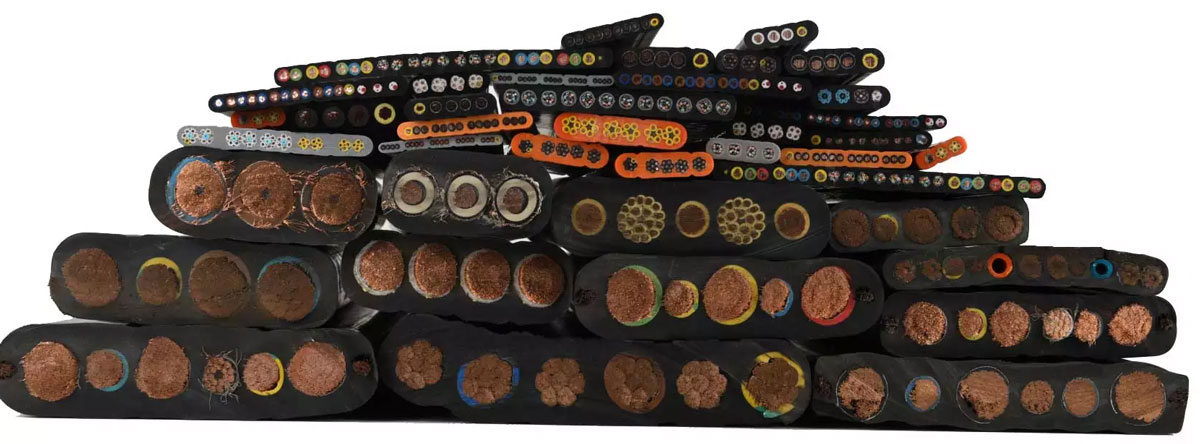

What is H07VVH6-F Flat Cable:
The H07VVH6-F flat cable is a harmonized, flexible PVC flat cable specifically designed for power and control in moving machinery. It is widely used in industrial "festoon" systems where cables must withstand continuous bending in a single plane
What makes this cable distinct is its flat design and PVC (Polyvinyl Chloride) insulation, which offers excellent mechanical flexibility. The flat structure allows for easy installation in tight spaces, particularly helpful where multiple cables need to be laid parallel or compactly routed. The cable is highly favored in automation, robotics, and other industrial sectors that require cables to endure repetitive bending and torsion.

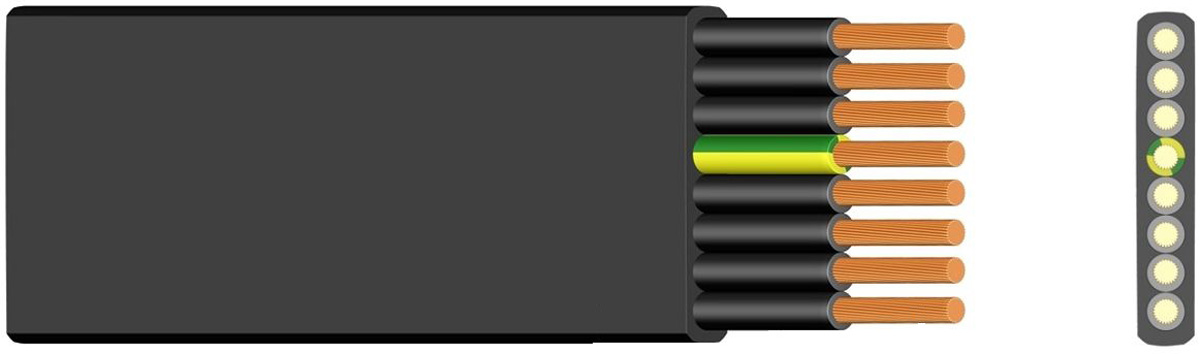

Construction & Technical Specifications
|
Conductors |
Class 5 flexible copper conductor |
|
Insulation |
PVC (Polyvinyl Chloride) |
|
Outer Sheath |
PVC (Polyvinyl Chloride) |
|
Voltage Rating Uo/U |
450/700V |
|
Temperature Rating |
Flexed: -5°C to +70°C |
|
Minimum Bending Radius |
Flexed: 8 x overall diameter |
|
Cores identification |
4 cores: black - grey - green/yellow - brown
5 cores: black - grey - green/yellow - brown - blue
From 6 cores: black with white printed numbers + green/yellow |
|
Sheath Colour |
Black |
H07VVH6-F Cable Designation Breakdown:
|
H |
Harmonized standard. |
|
07 |
450/700V rated voltage. |
|
V |
PVC core insulation. |
|
V |
PVC outer sheath. |
|
H6 |
Flat cable construction. |
|
-F |
Flexible fine-wire conductor (Class 5). |
H07VVH6-F Cable Specifications
|
Nb. of cores |
Cross section |
Approx. weight |
|
mm² |
kg/km |
|
4 |
1.5 |
150 |
|
4 |
1.5 |
150 |
|
4 |
2.5 |
210 |
|
4 |
2.5 |
210 |
|
4 |
4 |
300 |
|
4 |
4 |
300 |
|
4 |
6 |
390 |
|
4 |
6 |
390 |
|
4 |
10 |
620 |
|
4 |
10 |
620 |
|
4 |
16 |
990 |
|
4 |
16 |
990 |
|
4 |
25 |
1550 |
|
4 |
25 |
1550 |
|
4 |
35 |
2030 |
|
4 |
35 |
2030 |
|
4 |
50 |
2650 |
|
4 |
70 |
3650 |
|
4 |
95 |
4550 |
|
5 |
1.5 |
180 |
|
5 |
1.5 |
180 |
|
5 |
2.5 |
260 |
|
5 |
2.5 |
260 |
|
5 |
4 |
380 |
|
5 |
6 |
480 |
|
5 |
10 |
780 |
|
5 |
16 |
1200 |
|
7 |
1.5 |
260 |
|
7 |
1.5 |
260 |
|
7 |
2.5 |
380 |
|
7 |
2.5 |
380 |
|
7 |
4 |
550 |
|
7 |
6 |
700 |
|
8 |
1.5 |
300 |
|
8 |
1.5 |
300 |
|
8 |
2.5 |
405 |
|
8 |
2.5 |
405 |
|
10 |
1.5 |
360 |
|
12 |
1.5 |
420 |
|
12 |
1.5 |
420 |
|
12 |
2.5 |
620 |
|
12 |
2.5 |
620 |
|
12 |
4 |
880 |
|
14 |
1.5 |
490 |
|
16 |
1.5 |
560 |
|
16 |
1.5 |
560 |
|
18 |
1.5 |
620 |
|
18 |
1.5 |
620 |
H07VVH6-F Flat Cable Applications:
Cranes & Hoists: Used as trailing cables for overhead cranes and hoisting equipment.
Conveyor Systems: Ideal for floor conveyors and material handling lines.
Elevators: Often used as control cables in lift installations with suspension lengths typically up to
Machine Tools: Connecting movable parts in large industrial machines
Installation and Handling Recommendations
To ensure optimal performance and extend the service life of the H07VVH6-F flat cable, observe the following installation and maintenance best practices:
Bending Radius: Respect the minimum bending radius, approximately 7.5 times the cable diameter during installation and 15 times when installed as a fixed run.
Avoid Twisting: Due to the cable’s flat construction, avoid excessive twisting as it may degrade conductor integrity.
Secure Installation: Use cable clips and supports appropriate for flat cables to prevent sagging or mechanical wear.
Inspection: Periodically check for mechanical damage such as cuts or abrasions and replace cables showing signs of deterioration.
Clean Environment: Keep cables clear of sharp edges, solvents, and extreme temperatures to prolong lifespan.
Advantages of HuaDong Cable Group’s H07VVH6-F Flat Cable
Superior Mechanical Flexibility: Thanks to Class 5 fine-stranded copper conductors and carefully formulated PVC compounds, our cables endure high bending cycles, making them ideal for robotic installations and moving machinery components.
Longevity and Environmental Resistance: By using durable insulating and sheath materials, the H07VVH6-F cable reliably performs in damp, oily, and chemically aggressive environments. The cable maintains its structure and electrical properties over prolonged operational periods.
Efficient Installation: The flat design simplifies wiring layouts, increases space efficiency, and reduces installation times. This feature is particularly beneficial in complex control cabinets and conveyor systems with limited space.
Customization Services: At HuaDong Cable Group, we recognize that some industries require specific cable configurations. We offer tailored cable solutions including various conductor counts, lengths, and jacket colors to meet customer-specific needs.
Why Choose HuaDong Cable Group?
HuaDong Cable Group stands at the forefront of global cable manufacturing due to decades of experience combined with robust R&D capabilities. Our commitment to quality assurance processes, from raw material sourcing to final product testing, ensures that every meter of H07VVH6-F cable delivered meets or exceeds customer expectations.
