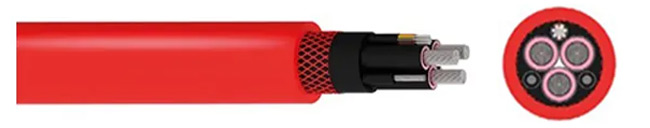

Round Medium Voltage (N)TSCGEWOEU Reeling Cable

(N)TSCGEWOEU cable is a standard German VDE-designated type of Medium Voltage  Flexible Rubber Reeling Cable. It is specifically engineered to handle extreme mechanical stresses, heavy-duty dynamic workloads, and continuous reeling/unreeling operations.

What does (N)TSCGEWOEU Meaning:

(N): Based on VDE standards (national type).
TS: Trailing cable.
C: Screen/shielding (semi-conductive layers over the conductor and insulation for electrical field control).
G: Rubber/EPR insulation.
E: Individual shield/screen on the protective conductor (Earth).
W: Outer sheath (chloroprene/rubber).
ÖU (OEU): Oil-resistant and flame-retardant polychloroprene (PCP) or synthetic rubber outer sheath.

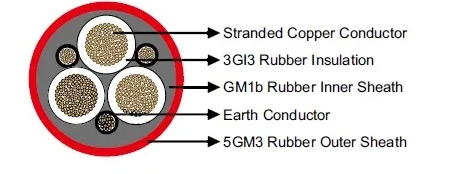

(N)TSCGEWOEU Reeling Cable Construction:

Conductor：Conductor and earth conductor made of electrolytic copper tinned, very finely stranded, class FS (refer also to DIN VDE 0295)
Insulation: High grade special compound based on high-quality EPR (at least 3GI3); improved mechanical and electrical characteristics (refer also to DIN VDE 0207, Part 20)
Electrical field control：Inner semiconductive layer of EPR, outer semiconductive layer of modified NBR, capable of being
stripped when cold and thus extremely easy to prepare (Easy Strip design)
Core identification：Natural coloured insulation with black semiconductive layer
Core arrangement：Three-core design, with earth conductor split into 3 parts positioned in the interstices
Double layer inner sheath: Compound based on EPR, quality at least 5GM3, served as water barrier, colour: redAnti-torsion Braid: Reinforced braid made of polyester threads, in a vulcanized bond between the sheaths, resulting in high strength of the sheath system;
Double layer outer sheath: A sheath system with a unique combination of flexibility and robustness has been achieved through the use of a new sandwich structure. Abrasion and tear-proof high grade rubber compounds based on PCP, quality at least 5GM5, colour: bright red/red.

(N)TSCGEWOEU Reeling Cable Electrical Parameters

Rated voltage ： 1.8/3 kV  3. 6/ 6 kV  6/ 10 kV  8. 7/ 15 kV   12/ 20 kV
Max. permissible operating voltage AC：2.1/3.6 kV    4. 2/ 7. 2 kV     6. 9/ 12 kV   10. 4/ 18 kV   13. 9/ 24 kV
Max. permissible operating voltage DC 2.7/5.4 kV 5. 4/ 10. 8 kV  9/ 18 kV   13. 5/ 27 kV   18/ 36 kV
AC test voltage:  6 kV 11 kV 17 kV 24 kV 29 kV
EMC：This design exhibits an extremely low interference level as a result of use of a symmetrical three- core design with very narrow manufacturing tolerances.

(N)TSCGEWOEU Reeling Cable Application

Flexible medium voltage reeling cable for application under high to extreme mechanical stresses, e.g. high travel speeds, dynamic tensile loads, multiple changes of direction into different planes, churning on running over rollers and torsional stresses. Mainly for mobile equipment, e.g. fast-moving container cranes and large moving equipment.

(N)TSCGEWOEU Reeling Cable Spec：

(N)TSCGEWOEU Reeling Cable Rated voltage 1. 8/ 3kV
Number of cores x cross section	Conductor diameter max. mm	Earth  conductor diameter max. mm	Outer diameter min. mm	Outer  diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Dynamic tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity (1)	Short Circuit Current (conduc- tor)
3×25+3×25/3	7.1	4.2	34.3	37.3	373	2110	1500	2250	0.8	131	3.58
3×35+3×25/3	8.3	4.2	43	46	460	3150	2100	3150	0.57	162	5.01
3×50+3×25/3	9.9	4.2	46.4	49.4	494	3840	3000	4500	0.39	202	7.15
3×70+3×35/3	11.8	5	45.9	48.9	489	4230	4200	6300	0.28	250	10.01
3×95+3×50/3	13.8	5.9	50.3	54.3	543	5440	5700	8550	0.21	301	13.59
3×120+3×70/3	15.4	7	63.8	67.8	678	8010	7200	10800	0.16	352	17.16
3×150+3×70/3	17.2	7	67.7	71.7	717	9240	9000	13500	0.13	404	21.45
3×185+3×95/3	19	8	71.6	75.6	756	10750	11100	16650	0.11	461	26.46
3×240+3×120/3	21.8	9	79.4	83.4	834	13640	14400	21600	0.08	540	34.32
3×300+3×150/3	24.4	10	84.7	89.7	897	16230	18000	27000	0.07	620	42.9
(N)TSCGEWOEU Reeling Cable Rated voltage 3. 6/6 kV
Number of cores x cross section	Conductor diameter max. mm	Earth  conductor diameter max. mm	Outer diameter min. mm	Outer  diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Dynamic tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity (1)	Short Circuit Current (conduc- tor)
3×25+3×25/3	7.1	4.2	35.5	38.5	385	2210	1500	2250	0.8	131	3.58
3×35+3×25/3	8.3	4.2	39	42	420	2720	2100	3150	0.57	162	5.01
3×50+3×25/3	9.9	4.2	42.4	45.4	454	3380	3000	4500	0.39	202	7.15
3×70+3×35/3	11.8	5	46.4	49.4	494	4310	4200	6300	0.28	250	10.01
3×95+3×50/3	13.8	5.9	51.4	55.5	555	5570	5700	8550	0.21	301	13.59
3×120+3×70/3	15.4	7	55	59	590	6700	7200	10800	0.16	352	17.16
3×150+3×70/3	17.2	7	58.8	62.8	628	7820	9000	13500	0.13	404	21.45
3×185+3×95/3	19	8	64	68	680	9530	11100	16650	0.11	461	26.46
3×240+3×120/3	21.8	9	72.5	76.5	765	12120	14400	21600	0.08	540	34.32
3×300+3×150/3	24.4	10	78.2	82.2	822	14580	18000	27000	0.07	620	42.9
(N)TSCGEWOEU Reeling Cable Rated voltage 6/10 kV
Number of cores x cross section	Conductor diameter max. mm	Earth  conductor diameter max. mm	Outer diameter min. mm	Outer  diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Dynamic tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity (1)	Short Circuit Current (conduc- tor)
3×25+3×25/3	7.1	4.2	37.8	40.8	408	2400	1500	2250	0.8	131	3.58
3×35+3×25/3	8.3	4.2	40.2	43.2	432	2830	2100	3150	0.57	162	5.01
3×35+3×35/3	8.3	5	40.2	43.2	432	2920	2100	3150	0.57	162	5.01
3×35+3×50/3	8.3	5.9	42.7	45.7	457	3280	2100	3150	0.57	162	5.01
3×50+3×25/3	9.9	4.2	43.7	46.7	467	3570	3000	4500	0.39	202	7.15
3×70+3×50/3	11.8	5.9	47.7	50.7	507	4570	4200	6300	0.28	250	10.01
3×95+3×50/3	13.8	5.9	52.8	56.8	568	5710	5700	8550	0.21	301	13.59
3×120+3×70/3	15.4	7	56.2	60.2	602	6840	7200	10800	0.16	352	17.16
3×150+3×70/3	17.2	7	61.5	65.5	655	8200	9000	13500	0.13	404	21.45
3×185+3×95/3	19	8	65.3	69.3	693	9690	11100	16650	0.11	461	26.46
3×240+3×120/3	21.8	9	73.8	77.8	778	12310	14400	21600	0.08	540	34.32
3×300+3×150/3	24.4	10	79.5	83.5	835	14780	18000	27000	0.07	620	42.9
(N)TSCGEWOEU Reeling Cable Rated voltage 8. 7/ 15 kV
Number of cores x cross section	Conductor diameter max. mm	Earth  conductor diameter max. mm	Outer diameter min. mm	Outer  diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Dynamic tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity (1)	Short Circuit Current (conduc- tor)
3×25+3×25/3	7.1	4.2	41.1	44.1	441	2680	1500	2250	0.8	139	3.58
3×35+3×25/3	8.3	4.2	43.7	46.7	467	3150	2100	3150	0.57	172	5.01
3×50+3×25/3	9.9	4.2	47.1	50.1	501	3840	3000	4500	0.39	215	7.15
3×70+3×35/3	11.8	5	52	56	560	5010	4200	6300	0.28	265	10.01
3×95+3×50/3	13.8	5.9	57.2	61.2	612	6070	5700	8550	0.21	319	13.59
3×120+3×70/3	15.4	7	62.1	66.1	661	7480	7200	10800	0.16	371	17.16
3×150+3×70/3	17.2	7	65.9	69.9	699	8630	9000	13500	0.13	428	21.45
3×185+3×95/3	19	8	69.8	73.8	738	10140	11100	16650	0.11	488	26.46
3×240+3×120/3	21.8	9	77.3	81.3	813	12860	14400	21600	0.08	574	34.32
3×300+3×150/3	24.4	10	84.2	89.2	892	15730	18000	27000	0.07	660	42.9
(N)TSCGEWOEU Reeling Cable Rated voltage 12/ 20 kV
Number of cores x cross section	Conductor diameter max. mm	Earth  conductor diameter max. mm	Outer diameter min. mm	Outer  diameter max. mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Dynamic tensile force max. N	Conductor resis- tance at 20°C max.	Current carrying capacity (1)	Short Circuit Current (conduc- tor)
3×25+3×25/3	7.1	4.2	44.1	47.1	471	2950	1500	2250	0.8	139	3.58
3×35+3×25/3	8.3	4.2	46.6	49.6	496	3440	2100	3150	0.57	172	5.01
3×50+3×25/3	9.9	4.2	51.8	55.8	558	4300	3000	4500	0.39	215	7.15
3×70+3×35/3	11.8	5	55	59	590	5350	4200	6300	0.28	265	10.01
3×95+3×50/3	13.8	5.9	61.6	65.6	656	6660	5700	8550	0.21	319	13.59
3×120+3×70/3	15.4	7	65.1	69.1	691	7870	7200	10800	0.16	371	17.16
3×150+3×70/3	17.2	7	69	73	730	9060	9000	13500	0.13	428	21.45
3×185+3×95/3	19	8	74.3	78.3	783	10850	11100	16650	0.11	488	26.46
3×240+3×120/3	21.8	9	80.3	84.3	843	13340	14400	21600	0.08	574	34.32
3×300+3×150/3	24.4	10	87.2	92.2	922	16250	18000	27000	0.07	660	42.9
