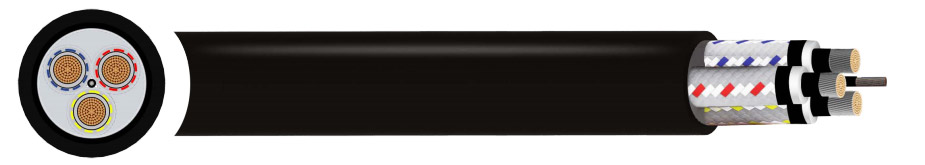

Type 209 mining cable is a flexible, trailing feeder cable designed for various mining applications, especially for mobile equipment like drills and pumps, and is manufactured to Australian and New Zealand standards (AS/NZS 1802). It features three tinned copper insulated power cores, a central pilot core for monitoring, and a heavy-duty, flame-retardant, oil-resistant Polychloroprene (PCP) sheath.
With options in voltages ranging from 1.1kV to 11kV (Type 209.1 - 1.1kV; Type 209.3 - 3.3kV; Type 209.6 - 6.6kV; Type 209.11 - 11kV), Type 209 mining cables are robust, water and UV resistant cables for use in both underground and open pittable mining operations.

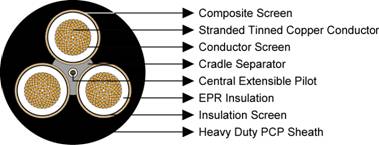

| Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV and above - polyester barrier tape and extruded semiconductive tape. |
| Insulation | EPR |
| Insulation Screen | Semiconductive tape |
| Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn |
| Cradle Separator | Semiconductive PCP |
| Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor |
| Sheath | Heavy duty PCP sheath |
| NO. CORES | NOMINAL CONDUCTOR AREA（mm2） | NUMBER NOMINAL DIAMETER WIRES n x mm | NOMINAL THICKNESS INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm2 | STRAND SIZE PILOT mm2 | NOMINAL THICKNESS PILOT COVERING mm | NOMINAL THICKNESS SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
| Type 209.1 - 1.1kV Mining Cable | |||||||||||
| 3 | 6 | 84x0.3 | 1.5 | 6.5 | 7/0.25 | 7.2 | 24/0.20 | 0.8 | 3.8 | 30 | 129 |
| 3 | 10 | 77x0.4 | 1.5 | 7.7 | 7/0.25 | 8.6 | 24/0.20 | 0.8 | 3.8 | 32.6 | 157 |
| 3 | 16 | 126x0.4 | 1.6 | 9 | 7/0.25 | 9.6 | 24/0.20 | 0.8 | 4 | 35.8 | 157 |
| 3 | 25 | 209x0.4 | 1.6 | 10.5 | 7/0.25 | 11.3 | 24/0.20 | 0.8 | 4.3 | 39.7 | 255 |
| 3 | 35 | 285x0.4 | 1.6 | 12.1 | 7/0.25 | 12.4 | 24/0.20 | 0.8 | 4.6 | 43.1 | 312 |
| 3 | 50 | 380x0.4 | 1.7 | 13.8 | 7/0.25 | 14.1 | 40/0.20 | 0.8 | 5 | 48.4 | 386 |
| 3 | 70 | 361x0.5 | 1.8 | 16.1 | 7/0.25 | 16.5 | 40/0.20 | 0.8 | 5.4 | 54 | 503 |
| 3 | 95 | 475x0.5 | 2 | 17.7 | 7/0.25 | 18.2 | 40/0.20 | 0.8 | 6 | 58.8 | 605 |
| 3 | 120 | 608x0.5 | 2.1 | 20 | 7/0.25 | 20.3 | 40/0.20 | 0.8 | 6.4 | 64.6 | 741 |
| 3 | 150 | 740x0.5 | 2.3 | 22.2 | 7/0.25 | 22.3 | 40/0.20 | 0.8 | 6.9 | 70.3 | 896 |
| 3 | 185 | 925x0.5 | 2.5 | 24.7 | 7/0.30 | 30.2 | 40/0.20 | 0.8 | 7.4 | 74.8 | 1107 |
| 3 | 240 | 1221x0.5 | 2.8 | 27.9 | 7/0.30 | 33.6 | 40/0.20 | 0.8 | 8.2 | 86.1 | 1365 |
| 3 | 300 | 1525x0.5 | 3 | 31 | 7/0.40 | 50.1 | 40/0.20 | 0.8 | 8.8 | 95.2 | 1715 |
| Type 209.3 - 3.3kV Mining Cable | |||||||||||
| 3 | 16 | 126x0.4 | 3 | 12.6 | 7/0.25 | 13.4 | 24/0.20 | 0.8 | 5.3 | 46.7 | 301 |
| 3 | 25 | 209x0.4 | 3 | 14.1 | 7/0.25 | 14.8 | 24/0.20 | 0.8 | 5.6 | 50.6 | 369 |
| 3 | 35 | 285x0.4 | 3 | 15.4 | 7/0.25 | 15.1 | 24/0.20 | 0.8 | 5.9 | 54 | 431 |
| 3 | 50 | 380x0.4 | 3 | 16.9 | 7/0.25 | 17.5 | 40/0.20 | 0.8 | 6.3 | 58.1 | 507 |
| 3 | 70 | 361x0.5 | 3 | 18.9 | 7/0.25 | 19.6 | 40/0.20 | 0.8 | 6.6 | 63 | 624 |
| 3 | 95 | 475x0.5 | 3 | 20.1 | 7/0.25 | 20.6 | 40/0.20 | 0.8 | 7.1 | 66.7 | 719 |
| 3 | 120 | 608x0.5 | 3 | 22.2 | 7/0.30 | 27.2 | 40/0.20 | 0.8 | 7.4 | 72.6 | 876 |
| 3 | 150 | 740x0.5 | 3 | 24 | 7/0.40 | 39.6 | 40/0.20 | 0.8 | 7.8 | 78.6 | 1072 |
| 3 | 185 | 925x0.5 | 3 | 26.1 | 7/0.40 | 43.1 | 40/0.20 | 0.8 | 8.2 | 83.8 | 1236 |
| 3 | 240 | 1221x0.5 | 3 | 28.1 | 7/0.40 | 46.6 | 40/0.20 | 0.8 | 8.8 | 90.8 | 1484 |
| Type 209.6 - 6.6kV Mining Cable | |||||||||||
| 3 | 16 | 126x0.4 | 5 | 16.6 | 7/0.25 | 17.2 | 24/0.20 | 0.8 | 6.4 | 57.9 | 435 |
| 3 | 25 | 209x0.4 | 5 | 18.1 | 7/0.25 | 18.9 | 24/0.20 | 0.8 | 6.7 | 61.7 | 512 |
| 3 | 35 | 285x0.4 | 5 | 19.4 | 7/0.25 | 19.9 | 24/0.20 | 0.8 | 7 | 65.2 | 582 |
| 3 | 50 | 380x0.4 | 5 | 20.9 | 7/0.25 | 21.6 | 40/0.20 | 0.8 | 7.3 | 69 | 668 |
| 3 | 70 | 361x0.5 | 5 | 22.9 | 7/0.25 | 23.4 | 40/0.20 | 0.8 | 7.7 | 74.3 | 799 |
| 3 | 95 | 475x0.5 | 5 | 24.1 | 7/0.30 | 29.7 | 40/0.20 | 0.8 | 8.1 | 78.3 | 876 |
| 3 | 120 | 608x0.5 | 5 | 25.2 | 7/0.30 | 32.2 | 40/0.20 | 0.8 | 8.5 | 83.5 | 1072 |
| 3 | 150 | 740x0.5 | 5 | 28 | 7/0.40 | 45.7 | 40/0.20 | 0.8 | 8.9 | 89.5 | 1290 |
| 3 | 185 | 925x0.5 | 5 | 30.1 | 7/0.40 | 49.3 | 40/0.20 | 0.8 | 9.3 | 95.1 | 1466 |
| 3 | 240 | 1221x0.5 | 5 | 32.7 | 7/0.40 | 52.8 | 40/0.20 | 0.8 | 9.9 | 101.8 | 1733 |
| Type 209.11 - 11kV Mining Cable | |||||||||||
| 3 | 25 | 209x0.4 | 7.6 | 23.5 | 7/0.25 | 24.1 | 24/0.20 | 0.8 | 8.1 | 76 | 742 |
| 3 | 35 | 285x0.4 | 7.6 | 24.8 | 7/0.30 | 30.2 | 24/0.20 | 0.8 | 8.4 | 80.1 | 847 |
| 3 | 50 | 380x0.4 | 7.6 | 26.2 | 7/0.30 | 32.2 | 40/0.20 | 0.8 | 8.7 | 84 | 943 |
| 3 | 70 | 361x0.5 | 7.6 | 28.2 | 7/0.30 | 34.6 | 40/0.20 | 0.8 | 9.1 | 89.1 | 1093 |
| 3 | 95 | 475x0.5 | 7.6 | 29.5 | 7/0.40 | 48.4 | 40/0.20 | 0.8 | 9.6 | 94.1 | 1267 |
| 3 | 120 | 608x0.5 | 7.6 | 31.5 | 7/0.40 | 51 | 40/0.20 | 0.8 | 9.9 | 99.9 | 1436 |
| 3 | 150 | 740x0.5 | 7.6 | 33.3 | 7/0.40 | 54.5 | 40/0.20 | 0.8 | 10.3 | 104 | 1614 |
Type 209 mining cables are widely used as proper flexible feeder cables throughout the Mining sector. The smaller-cross-sectional cables here are used with mobile hand-operated equipment such as drills but may also by used with equipment such as fans and pumps. Manufactured in accordance with Australian & New Zealand standards, they are specified the world over for large scale opencast mining operations.
