NHXH & NHXCH FE180/E90 Fire Resistant Cable

What is NHXCH and NHXH Cable?

The NHXH and NHXCH cable are for circuit integrity, developed to continue running for set lengths of time in the event of a fire. They are used for voice alarms, smoke alarms, and assistance for fire fighting and life saving efforts.
These Cables have fire resistant and non-corrosive (FRNC) homes that make them ideally suited for installation in public structures and for applications requiring a high degree of resistance to flame and offering reduced discharges of hazardous fumes in order to shield both human life and tools in case of a fire. They are produced to European Standard EN 60332-3-24 - the European Standard which replaced the conventional EN 50266-2-4 (taken out).

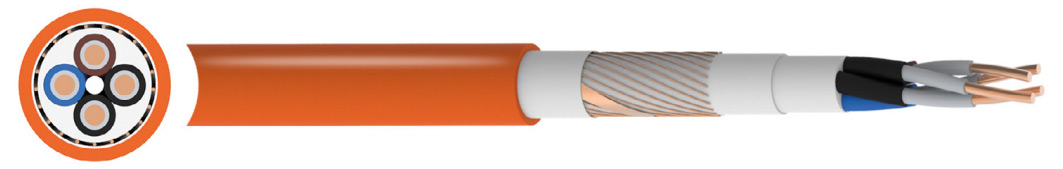

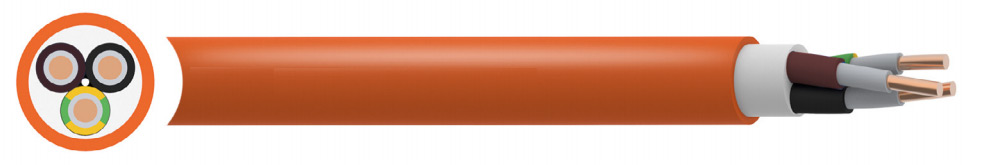

NHXCH and NHXH Cable Construction:



	NHXCH FE180-E90 Cable	NHXH FE180-E90 Cable
Voltage Rating Uo/U	0.6/1kV	0.6/1kV
Temperature Rating	-5°C to +90°C	-5°C to +90°C
Conductor	RE: Class 1 solid copper conductor  RM: Class 2 stranded copper conductor	RE: Class 1 solid copper conductor  RM: Class 2 stranded copper conductor
Insulation	LSZH (Low Smoke Zero Halogen)	LSZH (Low Smoke Zero Halogen)
Inner Sheath	LSZH (Low Smoke Zero Halogen)	LSZH (Low Smoke Zero Halogen)
Concentric Conductor	Copper wires with counter helix of copper tape	-
Outer Sheath	LSZH (Low Smoke Zero Halogen)	LSZH (Low Smoke Zero Halogen)
Core  Identification	2cores: Brown Blue 3cores: Brown Black Grey 4cores: Brown Black Grey Blue cores: Brown Black Grey Blue Black 7 core and above: Black with White numbers	2cores: Brown Blue 3cores: Brown Black Grey 4cores: Brown Black Grey Blue cores: Brown Black Grey Blue Black 7 core and above: Black with White numbers

What the deffient between NHXCH and NHXH Cable?

NHXCH and NHXH Cable are both premium, halogen-free, flame-retardant power line made for critical safety systems, sharing identical low-smoke residential properties and fire resistance rankings (FE180/E30-- E90). The fundamental difference lies in their structural engineering: NHXCH cable includes a concentric copper cable conductor layered underneath its external sheath, whereas NHXH lacks this component. Consequently, NHXH cable offers general emergency situation circuits like fire pumps, while NHXCH cable is mandated for environments calling for electro-magnetic disturbance (EMI) protecting, boosted physical security, or specialized grounding, such as data facilities and medical centers.

Cable Type	Concentric Conductor	Core Function	Fire Resistance (VDE)	Halogen-Free / LSZH	Primary Application
NHXH	None	Power transmission	FE180 / E30-E90	Yes	General emergency systems (Lighting, pumps)
NHXCH	Copper wire + tape screen	Power + EMI shielding	FE180 / E30-E90	Yes	Sensitive environments (Data centers, hospitals)



What does FE180 E90 meaning?

The FE180 E90 stand for European fire-resistance standards for electrical cables, separating efficiency into insulation integrity (FE) and system circuit integrity (E). FE180 suggests the cable's insulation alone can withstand direct fire direct exposure for 180 mins without short-circuiting. In contrast, the E scores (E30, E60, E90) test the whole installment system-- including clamps, trays, and supports-- inside a heating system. They guarantee the complete network maintains power and signals during a real structural fire for 30, 60, or 90 minutes respectively. Higher numbers determine survival times for vital life-safety and firefighting equipment.

Rating	Test Type	Duration	Target Component	Application Example
FE180	Flame Test	180 Minutes	Cable Insulation Only	Standard fire-retardant wiring
E30	System Test	30 Minutes	Complete System Setup	Alarm systems, emergency lighting
E60	System Test	60 Minutes	Complete System Setup	Smoke extraction, ventilation fans
E90	System Test	90 Minutes	Complete System Setup	Fire lifts, water pumps, hydrants

NHXCH FE180-E90 Cable Spec:

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR TYPE	CONCENTRIC CONDUCTOR	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2		mm	mm	kg/km
2	1.5	RE	1.5	16	300
2	2.5	RE	2.5	17	350
3	1.5	RE	1.5	16.8	363
3	2.5	RE	2.5	17.9	434
3	4	RE	4	19	434
3	6	RE	6	21	434
3	10	RE	10	24.1	949
3	16	RE	16	27.3	1340
3	25	RM	16	30.7	1766
3	35	RM	16	33.3	2172
3	50	RM	25	37.4	2857
3	70	RM	35	42.5	3839
3	95	RM	50	47.8	5082
3	120	RM	70	51.4	6204
3	150	RM	70	55.7	7340
3	185	RM	95	61.7	9142
3	240	RM	120	67.9	11582
4	1.5	RE	1.5	18	450
4	2.5	RE	2.5	19.2	505
4	4	RE	4	20.3	608
4	6	RE	6	22.5	777
4	10	RE	10	26.4	1153
4	16	RM	16	29.3	1584
4	25	RM	16	33.1	2120
4	35	RM	16	36	2634
4	50	RM	25	41.1	3524
4	70	RM	35	46.2	4695
4	95	RM	50	52	6242
4	120	RM	70	56	7622
4	150	RM	70	61	9096
4	185	RM	95	67.5	11307
4	240	RM	120	74.4	14359
7	1.5	RE	2.5	20.9	588
7	2.5	RE	2.5	22.1	696
12	1.5	RE	2.5	26.2	620
12	2.5	RE	2.5	28.2	1168
24	1.5	RE	6	37.6	1979
24	2.5	RE	2.5	41	2465

NHXH FE180-E90 Spec:

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR TYPE	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2		mm	kg/km
1	16	RM	10.5	250
1	25	RM	12.5	355
1	35	RM	13.5	460
1	50	RM	15	596
1	70	RM	16.5	810
1	95	RM	19	1100
1	120	RM	20.5	1350
1	150	RM	22.5	1650
1	185	RM	25	2050
1	240	RM	28	2650
1	300	RM	31	3275
2	1.5	RE	14.3	275
2	2.5	RE	14.9	320
3	1.5	RE	15	315
3	2.5	RE	15.9	371
3	4	RE	16.7	435
3	6	RE	17.8	526
3	10	RE	19.5	691
3	16	RM	22.3	982
3	25	RM	25.8	1392
3	35	RM	28.4	1778
3	35/16	RM	29.5	1964
3	50/25	RM	33.6	2633
3	70/35	RM	38.1	3563
3	95/50	RM	43.4	4768
3	120/70	RM	46.9	5856
4	1.5	RE	16.1	365
4	2.5	RE	17	429
4	4	RE	18	515
4	6	RE	19.2	628
4	10	RE	21.1	839
4	16	RE	24.3	1210
4	25	RM	28.1	1717
4	35	RM	31	2209
4	50	RM	35.1	2921
4	70	RM	40	3980
4	95	RM	45.2	5321
4	120	RM	49	6475
4	150	RM	53	7725
5	1.5	RE	17.4	429
5	2.5	RE	18.4	506
5	4	RE	19.5	612
5	6	RE	20.9	752
5	10	RE	23	1009
5	16	RM	26.6	1465
5	25	RM	30.9	2105
5	35	RM	36	2500
7	1.5	RE	18.6	497
7	2.5	RE	19.8	599
12	1.5	RE	23.5	744
