Type 440 Mining Cable

What is Type 440 Mining Cable?

Type 440 mining cables employ a 3+3+1 configuration – comprising three power conductors, three earth conductors, and one control conductor – and are available in multiple cross-sectional area specifications of stranded tinned copper wire. Rated voltages include 1.1kV (Type 440.1), 3.3kV (Type 440.3), 6.6kV (Type 440.6), 11kV (Type 440.11), and 22kV (Type 440.22), with an operating temperature range of -25°C to +90°C. Manufactured to Australian and New Zealand standards, these cables feature waterproof, flame-retardant, UV-resistant, sunlight-resistant and ozone-resistant properties, making them highly suitable for repeated dragging and winding demands on dynamic equipment in harsh environments.

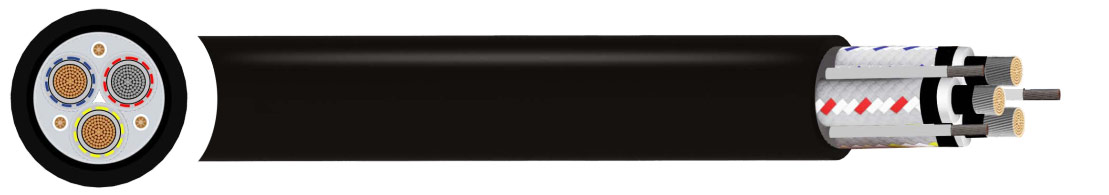

Type 440 Mining Cable Construction

Conductor	Tinned annealed copper wires
Separator/Screen	1.1kV: Paper separator For other nominal voltages semi-conductive tape+ thermosetting compound over conductors
Insulation	Ethylene propylene rubber type R-EP-90
Insulation Screen	1.1kV: Synthetic tape From 3.3kV: Semi-conductive thermosetting compound + tinned copper/polyamide braid
Cable Assembly	Three screened power and three pilot cores laid up with right hand direction on cradle separator
Sheath	Thermosetting compound HD-85-PCP - extra heavy duty, oil resistance and flame retardant
Sheath Colour	Black

Type 440 Mining Cable Specification

NOMINAL CONDUCTOR AREA	THICKNESS OF INSULATION	NUMBER AND NOMINAL DIAMETER OF WIRES	NOMINAL DIAMETER OVER INSULATION	CORE SCREEN SIZE	AREA OF SCREEN	PILOT COND. STRAND/ SIZE	THICKNESS EPR COVERING	NOMINAL THICKNESS OF SHEATH	NOMINAL DIAMETER	NOMINAL WEIGHT
mm2	mm2	n x mm	mm	mm	mm2	No/mm	mm	mm	mm	kg/100m
Type 440.1 - 1.1kV Mining Cable
6	1.5	84x0.3	6.5	7/0.25	7.2	18/0.3	1	3.8	30	135
10	1.5	77x0.4	7.7	7/0.25	8.6	27/0.3	1	3.8	32.6	166
16	1.6	126x0.4	9	7/0.25	9.6	42/0.3	1	4	35.8	204
25	1.6	209x0.4	10.5	7/0.25	11.3	66/0.3	1.2	4.3	39.7	269
35	1.6	285x0.4	12.1	7/0.25	12.4	90/0.3	1.2	4.6	43.8	324
50	1.7	380x0.4	13.8	7/0.25	14.4	120/0.3	1.2	5	48.4	403
70	1.8	361x0.5	16.1	7/0.25	16.5	110/0.4	1.2	5.4	54	539
95	2	475x0.5	17.7	7/0.30	21.8	110/0.4	1.2	6	59.4	659
120	2.1	608x0.5	20	7/0.30	24.7	135/0.4	1.4	6.4	65.2	802
150	2.3	740x0.5	22.2	7/0.40	36.9	152/0.4	1.4	6.9	72.2	1018
185	2.5	925x0.5	24.7	7/0.40	40.5	177/0.4	1.4	7.4	78.8	1198
240	2.8	1221x0.5	27.9	7/0.50	57.7	216/0.4	1.6	8.2	88.7	1549
Type 440.3 - 3.3kV Mining Cable
16	3	126x0.4	12.5	7/0.25	13.1	42/0.3	1.4	5.3	46.1	304
25	3	209x0.4	14	7/0.25	14.8	66/0.3	1.4	5.6	50	379
35	3	285x0.4	15.3	7/0.25	15.8	90/0.3	1.4	5.9	53.4	446
50	3	380x0.4	16.8	7/0.25	17.2	120/0.3	1.4	6.3	57.5	524
70	3	361x0.5	20	7/0.25	18.6	110/0.4	1.4	6.6	62.4	659
95	3	475x0.5	22.1	7/0.25	20.3	110/0.4	1.6	7.1	66.2	754
120	3	608x0.5	23.9	7/0.30	27.2	135/0.4	1.6	7.4	71.9	914
150	3	740x0.5	26	7/0.40	39.6	152/0.4	1.6	7.8	77.9	1119
185	3	925x0.5	28.6	7/0.40	42.2	177/0.4	1.6	8.2	83.4	1289
240	3	1221x0.5	31.2	7/0.40	46.6	216/0.4	1.6	8.8	90.2	1559
Type 440.6 - 6.6kV Mining Cable
16	5	126x0.4	16.5	7/0.25	17.2	42/0.3	1.4	6.4	57.3	444
25	5	209x0.4	18	7/0.25	18.6	66/0.3	1.6	6.7	61.2	523
35	5	285x0.4	19.3	7/0.25	18.6	90/0.3	1.6	7	64.6	599
50	5	380x0.4	20.8	7/0.25	21.3	120/0.3	1.8	7.3	68.5	689
70	5	361x0.5	22.8	7/0.25	23.4	110/0.4	1.8	7.7	73.7	834
95	5	475x0.5	24	7/0.30	29.2	110/0.4	1.8	8.1	77.8	964
120	5	608x0.5	26.1	7/0.30	31.7	135/0.4	1.8	8.5	83.1	1119
150	5	740x0.5	27.9	7/0.40	45.7	152/0.4	1.8	8.9	89.1	1349
185	5	925x0.5	30	7/0.40	48.4	177/0.4	1.8	9.3	94.5	1529
Type 440.11 - 11kV Mining Cable
25	7.6	209x0.4	23.4	7/0.25	23.7	66/0.3	2	8.1	75.6	759
35	7.6	285x0.4	24.7	7/0.30	30.2	90/0.3	2	8.4	79.6	869
50	7.6	380x0.4	26.2	7/0.30	31.7	120/0.3	2	8.7	83.5	974
70	7.6	361x0.5	28.2	7/0.30	34.1	110/0.4	2	9.1	88.7	1139
95	7.6	475x0.5	29.4	7/0.40	47.5	110/0.4	2.2	9.6	93.6	1319
120	7.6	608x0.5	31.5	7/0.40	51	135x0.4	2.2	9.9	98.7	1489
150	7.6	740x0.5	33.3	7/0.40	53.7	152/0.4	2.2	10.3	103.4	1679
Type 440.22 - 22kV Mining Cable
35	10.5	285x0.4	32.6	7/0.40	55.4	90/0.3	2.5	10	104.9	1429
50	10.5	380x0.4	34.1	7/0.40	58.1	120/0.3	2.5	10.3	108.8	1549

Type 440 Mining Cable Application:

Type 440 mining cable is used to provide power to heavy mining machinery and equipment, such as draglines, shovels, and drills, particularly in open-cast mining applications. Other industrial applications include:
Powering machinery: Primarily used to supply power to large mobile machinery such as draglines, excavators, and large drilling rigs.
Control and signal transmission: The cable's construction includes a guide core for control and signal transmission, relaying equipment data and process information back to the control unit.
General industrial equipment: Beyond mining, smaller gauge Type 440 cables can also be employed for various industrial equipment and handheld tools.
