MV 105 Cable 5kV 15kV 25kV

MV-105 Cable Description:

MV-105 cable is approved for temperatures up to 105°C and voltages voltages up to 5kV 15kV 25kV and 35kV. MV-105 cable uses class B stranded copper with extruded semi-conductor shield, insulated with heat and moisture resistant EPR (5kV rated - 133% insulation level; 8kV rated - 100% insulation level) with conductor jacket. MV-105 cable is primarily used for power circuits in commercial, industrial, refinery and petro-chemical plants; utility power generation and substations. The cable can be installed in wet or dry applications and is for use in aerial, conduit, open tray, and underground duct installations. It can be used in direct burial if installed with a ground conductor in close proximity.

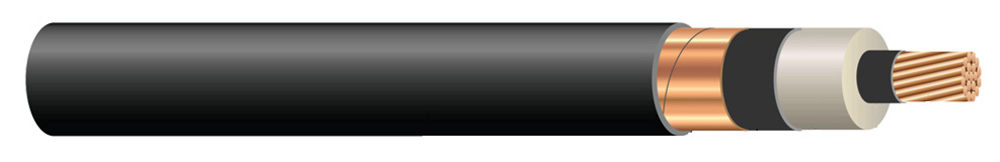

MV-105 Cable Construction:

Conductors	Class B annealed compact bare copper per ASTM
Conductor Shield	Extruded thermoset semi-conducting stress-control layer over conductor
Insulation	High dielectric strength lead-free EPR insulation, contrasting in color to the black semi-conducting shield layers
Insulation Shield	Extruded thermoset semi-conducting polymeric layer free stripping from insulation
Metallic Shield	Helically applied 5 mil annealed copper tape over the insulation shield with an overlap of 25%
Jacket	Black low-friction, lead-free, flame-retardant, moisture and sunlight resistant polyvinyl chloride (PVC) jacket tightly applied over the copper tape

MV-105 Cable Specifications:

Voltage	Conductor Size	Conductor Diameter	Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Cable Weight	Ampacity
								Conduit in Air		Underground Duct		Tray
	AWG/kcmil	inches	mils	inches	inches	inches	lbs/kft	90°C	105°C	90°C	105°C	90°C	105°C
MV-105 5kV 133% Insulation	1/0	0.34	115	0.62	0.06	0.82	623	195	215	200	215	195	220
	2/0	0.38	115	0.66	0.06	0.86	728	225	255	230	245	225	250
	4/0	0.48	115	0.76	0.08	1	1053	295	330	295	315	300	335
	250	0.53	115	0.81	0.08	1.05	1199	330	365	325	345	335	370
	350	0.62	115	0.91	0.08	1.14	1559	395	440	390	415	415	460
	500	0.74	115	1.03	0.08	1.27	2088	480	535	465	500	515	575
	750	0.91	115	1.21	0.08	1.45	2962	585	655	565	610	665	745
	1000	1.06	115	1.37	0.08	1.6	3815	675	755	640	690	795	890
MV-105 15kV 133% Insulation	2	0.268	0.22	0.76	0.08	1.01	580	115	130	120	130	-	-
	1/0	0.336	0.22	0.83	0.08	1.08	670	150	170	155	165	150	170
	2/0	0.376	0.22	0.87	0.08	1.12	728	175	200	175	190	175	195
	4/0	0.475	0.22	0.97	0.08	1.22	886	230	260	230	245	235	265
	250	0.53	0.22	1.01	0.08	1.25	869	255	290	250	270	260	290
	350	0.616	0.22	1.1	0.08	1.36	1149	310	350	305	330	325	360
	500	0.736	0.22	1.23	0.08	1.49	1366	385	430	370	400	400	450
	750	0.908	0.22	1.41	0.08	1.67	1745	485	540	455	490	515	585
	1000	1.06	0.22	1.57	0.11	1.86	2068	565	640	525	565	620	705
MV-105 25kV 100% Insulation	1/0	0.336	0.26	0.94	0.08	1.2	738	150	170	155	165	150	170
	4/0	0.475	0.26	1.08	0.08	1.34	950	175	200	175	190	175	195
	500	0.736	0.26	1.34	0.08	1.6	1426	230	260	230	245	235	265
MV-105 35kV 100% Insulation	1/0	0.34	345	1.08	0.08	1.31	1090	195	215	200	215	195	220
	4/0	0.48	345	1.21	0.08	1.45	1547	295	330	295	315	295	335
	350	0.62	345	1.36	0.08	1.6	2108	395	440	390	415	410	455
	500	0.74	345	1.48	0.08	1.72	2650	480	535	465	500	510	565
	750	0.91	345	1.67	0.11	1.96	3733	585	655	565	610	655	730
	1000	1.06	345	1.82	0.11	2.1	4651	675	755	640	690	780	870

MV-105 Cable Why Choose Huadong:

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium MV-105 Cable that meet the highest industry standards.
✔ High-Temperature Endurance – Rated for continuous operation at 105°C
✔ XLPE Insulation Superiority – Cross-linked polyethylene for enhanced dielectric strength
✔ Oil & Chemical Resistant – Special compound sheath for harsh environments
✔ Flexible Construction – Fine-stranded copper conductors for easier installation
