15kV URD Cable 133% Insulation

15kV URD Cable Description:

Aluminum or copper conductor 15KV URD cable is primary used forunderground distribution, in direct burial or installed in conduit.15KV URD cable is suitable for use in wet or dry locations. URD cable is to be used at 15,000 volts or less and not to exceed 90°C temperature in normal use.

15kV URD Cable Construction:

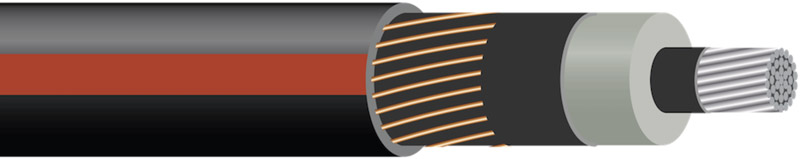

	Aluminum Conductor 15KV URD Cable TR-XLP 133%	Copper Conductor 15KV URD CABLE EPR 133%
Conductor	Aluminum alloy 1350 class B concentric compressed strand	Soft-annealed copper Class B stranding
Conductor Shield	Semiconducting extruded thermosetting insulation shield with controlled adhesion to the Insulation	Semi-conducting Cross-Linked Polyethylene (XLPE)
Insulation	Natural unfilled high dielectric strength tree retardant cross-linked Polyethylene (TR-XLP) insulation 133% insulation level	Thermoset Ethylene Propylene Rubber (EPR)
Concentric Neutral	Soft-annealed solid copper wires
Jacket	Black sunlight linear low density polyethylene encapsulating the neutral wires The outer jacket shall have three extruded red stripes (120 degrees apart) for identification	lack, sunlight resistant, linear low density Polyethylene (LDPE) encapsulating the neutral wires Outer jacket has three extruded red stripes for identification purposes

15kV URD Cable Specifications:

Conductor	Conductor Size	Insulation Thickness	Conductor Diameter	Insulation Diameter	Insulation Shield Diameter	Overall Jacket Diameter	Net Weight
	AWG/kcmil	mils	inches	inches	inches	inches	lbs/kft
Aluminum Conductor 15KV 133% URD CABLE	2	220	0.258	0.74	0.81	1.05	466
	1	220	0.324	0.81	0.88	1.12	521
	1/0	220	0.364	0.85	0.92	1.16	563
	2/0	220	0.408	0.89	0.96	1.2	624
	3/0	220	0.458	0.94	1.01	1.25	707
	4/0	220	0.515	1	1.07	1.31	803
	250	220	0.561	1.06	1.14	1.38	917
	350	220	0.664	1.16	1.25	1.48	1130
	500	220	0.794	1.29	1.38	1.71	1534
	750	220	0.974	1.48	1.56	1.9	2043
	1000	220	1.124	1.63	1.74	2.12	2626
Copper Conductor 15KV 133% URD CABLE	2	220	0.284	0.77	0.84	1.08	742
	1	220	0.324	0.81	0.88	1.15	893
	1/0	220	0.364	0.85	0.92	1.19	1039
	2/0	220	0.408	0.89	0.96	1.28	1266
	3/0	220	0.458	0.94	1.01	1.33	1490
	4/0	220	0.515	1	1.07	1.41	1803
