RH5Z1-OL | RH5Z1-2OL Cable

RH5Z1 Cable Description:

RH5Z1 cable is medium voltage aluminium cable with  XLPE insulation  and halogen free outer sheath. Longitudinal aluminium screen provides additional water protection .panish specification Medium Voltage RH5Z1 Cables are available for power distribution projects in voltages 12/20kV and 18/30kV. The cables are manufactured in accordance with HD620 10E2 and UNE 21120:2020

What does RH5Z1 Cable Meaning

RH5Z1 cable range has cross-linked Polyethylene (XLPE) insulation, a halogen-free Polyolefin outer sheath, waterblocking tape over the conductor and longitudinal waterblocking measures (RH5Z1-OL & RH5Z1-2OL). The specification differs ('H5') with an Aluminium tape applied just below the outer sheath, which provides the dual function of moisture blocking and protective screening

R	XLPE (Cross-linked Polyethylene) Insulation
H5	Metallic screen Aluminium
Z1	Polyolefin compound
OL	Longitudinal watertightness over the insulation screen only
2OL	Longitudinal watertightness in conductor and over insulation screen

RH5Z1 Cable Characteristics

Voltage Rating Uo/U	12/20 (24)kV 18/30 (36)kV
Maximum conductor operating temperture	90℃
Initial temperature at S.C.C for metallic scree	80℃
Maximum conductor temperature during S.C	250℃
Minimum Bending Radius	20 x overall diameter

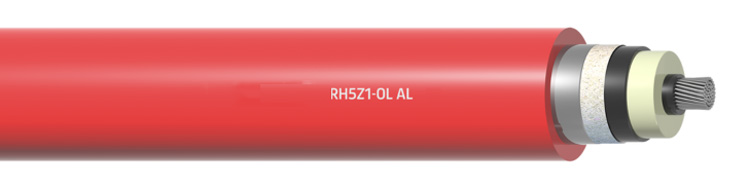

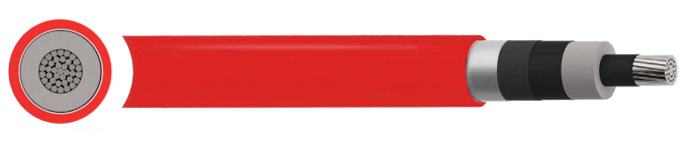

RH5Z1 Cable Construction

Conductor	Class 2 stranded Aluminium
Tape	Water blocking Tape Over Conductor
Conductor Screen	Extruded Inner Semi Conductor
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Extruded Outer Semi Conductor (Strippable Type)
Tape	Semi Conductive water blocking Tape
Aluminium Tape	Applied Longitudinally
Sheath	PO (DMZ1 in accordance with HD 620)
Sheath Colour	Red

RH5Z1 Cable Specifications

Voltage	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
12/20KV	1	50	4.9	2.75	29.3	782
	1	95	4.9	2.75	32.4	1007
	1	150	4.9	2.75	36	1278
	1	185	4.9	2.75	36.9	1398
	1	240	4.9	2.75	39.3	1626
	1	400	4.9	2.75	44.2	2205
	1	630	4.9	2.75	52.1	3208
18/30KV	1	50	7.25	2.75	34.3	1025
	1	95	7.25	2.75	37.4	1272
	1	150	7.25	2.75	41	1571
	1	185	7.25	2.75	41.9	1701
	1	240	7.25	2.75	44.3	1941
	1	400	7.25	2.75	49.2	2561
	1	630	7.25	2.75	57.1	3620

RH5Z1 Cable Why Choose Haudong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium RH5Z1 Cable that meet the highest industry standards. ✔ Superior Fire Survival – Maintains circuit integrity for 180+ minutes (IEC 60331 certified)
✔ Extreme Flexibility – Fine-stranded conductors allow tight bending radii
✔ Enhanced Safety – LSZH (Low Smoke Zero Halogen) with flame-retardant properties
✔ Oil & Chemical Resistant – Special elastomer jacket for industrial environments
