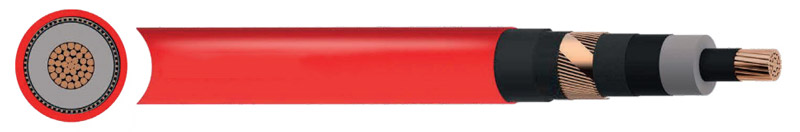

N2XS(F)H N2XS(FL)H cable

N2XS(F)H N2XS(FL)H Cable Description:

N2XS(F)H cable is longitudinally waterblocking cable and N2XS(FL)H cable is dual longitudinal and radial waterblocking cable. The voltage is 10kV, 15kV, 20kV, and 30kV. These cables are commonly installed in cable ducts, providing them with additional mechanical protection. Where the N2XS(F)H and N2XS(FL)H versions are particularly important is in the event the ducts become waterlogged. The single and dual waterblocked layers are commonly a water-swellable tape and an additional water-swellable powder, unless destined for clean environments where powder-free cable construction is stipulated and when two tapes are used. These additional layers prevent any ingress of water from reaching the insulation layer and potentially impeding the performance of the underlying conductor.

N2XS(F)H N2XS(FL)H Cable Characteristics

Voltage Rating Uo/U (Um)	6/10 (12)kV	8.7/15 (17.5) kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (15 mins)	30kV AC 50Hz (5 mins)	42kV AC 50Hz (5 mins)	63kV AC 50Hz (15 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

N2XS(F)H N2XS(FL)H Cable Construction

	N2XS(F)H Cable	N2XS(FL)H Cable
CONDUCTOR	Class 2 stranded copper
INSULATION	XLPE (Cross-linked Polyethylene)
SCREEN	Copper wires and tape
WATER-BLOCKING	Longitudinal Water-swellable tape either side of the screen	Layer 1 - Longitudinal Water-swellable tape either side of screen Layer 2 - Radial Waterblocking Al/PET bonded to sheath
OUTER SHEATH	LSZH (Low Smoke Zero Halogen)

N2XS(F)H N2XS(FL)H Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER mm		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATION mm
	Conductor	Screen			INNER	OUTER
1	35	16	6.9	7 x 2.62	0.5	0.4	5.5	4.85	19.1
1	50	16	8.1	10 x 2.62	0.5	0.4	5.5	4.85	20.3
1	70	16	9.7	14 x 2.62	0.5	0.4	5.5	4.85	21.9
1	95	16	11.4	19 x 2.62	0.5	0.4	5.5	4.85	23.6
1	120	16	12.7	19 x 2.97	0.5	0.4	5.5	4.85	24.9
1	150	25	14.5	19 x 3.20	0.5	0.4	5.5	4.85	26.7
1	185	25	15.9	27 x 2.62	0.5	0.4	5.5	4.85	28.1
1	240	25	18.6	48 x 2.62	0.5	0.4	5.5	4.85	30.8
1	300	25	20.7	61 x 2.62	0.5	0.4	5.5	4.85	32.9
1	400	35	23.5	61 x 2.97	0.5	0.4	5.5	4.85	35.7
1	500	35	26.5	61 x 3.29	0.5	0.4	5.5	4.85	38.7
1	630	35	30.2	61 x 3.80	0.5	0.4	5.5	4.85	42.9
