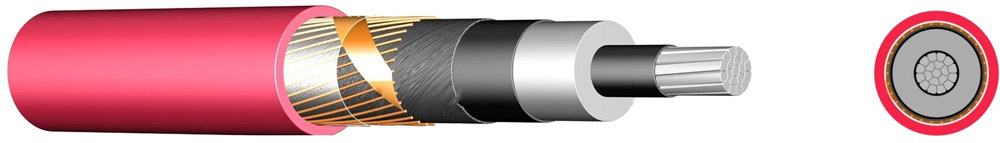

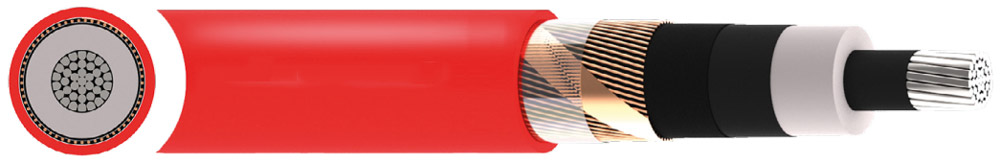

NA2XSY Cable Decsription:
NA2XSY cable has a single core aluminium stranded class 2 conductor with cross-linked polyethylene (XLPE) insulation, copper wire metallic screen, and a red polyvinyl chloride (PVC) oversheath. NA2XSY cable is CPR Compliant, making it suitable for installation in buildings and constructions across Europe. Suitable for installation mostly for power supply stations, in indoors and in cable ducts, outdoor with protected laying, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.Due to the good laying characteristic, NA2XSY cable can also be laid easily in difficult line guideways. The inner conducting layer between the conductor and the XLPE insulation and the firmly bonded outer conducting layer on the XLPE insulation assures a construction free of partial discharges with high operational reliability.
NA2XSY cable provides long-term operational reliability due to a low dielectric loss factor and the strong XLPE insulation. Nevertheless, it should be used in fixed installations to avoid mechanical or tensile strain. If the installation is wholly external it may be preferably to consider the MDPE sheathed NA2XS2Y (with additional waterblocking also available); and where run predominantly internally in high risk environments, the NA2XSH LSZH sheathing may be a suitable option.
NA2XSY Cable Voltage Rating:
The available current ratings for this range of medium voltage cable are as follows, with key sizes available direct from stock or on short manufacturing lead times for extended requirements:
6/10 (12)kV – Test Voltage 21kV
8.7/15 (17.5)kV – Test Voltage 30.45kV
12/20 (24)kV – Test Voltage 42kV
18/30 (36)kV – Test Voltage 63kV
NA2XSY Cable Characteristics:
|
Voltage Rating Uo/U (Um) |
6/10 (12)kV |
12/20 (24)kV |
18/30 (36)kV |
|
Temperature Rating |
Fixed: -20°C to +90°C |
Fixed: -20°C to +70°C
Flexed: -5°C to +70°C |
Fixed: -20°C to +90°C |
|
Minimum Bending Radius |
15 x overall diameter |
NA2XSY Cable Construction:
|
Conductor |
Class 2 stranded aluminium conductor |
|
Conductor Screen |
Semi-conductive material |
|
Insulation |
XLPE (Cross-Linked Polyethylene) |
|
Insulation Screen |
Semi-conductive material |
|
Screen |
Copper wires |
|
Sheath |
PVC (Polyvinyl e)Chlorid |
|
Sheath Colour |
Red |
NA2XSY Cable Specifications:
|
|
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
|
Conductor |
Copper Wire Screen |
|
NA2XSY 6/10 (12)kV Cable |
1 |
35 |
16 |
28 |
700 |
|
1 |
50 |
16 |
29 |
750 |
|
1 |
70 |
16 |
31 |
850 |
|
1 |
95 |
16 |
32 |
950 |
|
1 |
120 |
16 |
34 |
1050 |
|
1 |
150 |
25 |
35 |
1300 |
|
1 |
185 |
25 |
37 |
1400 |
|
1 |
240 |
25 |
39 |
1650 |
|
1 |
300 |
25 |
40 |
1850 |
|
1 |
400 |
35 |
45 |
2300 |
|
NA2XSY 12/20 (24)kV Cable |
1 |
50 |
16 |
33 |
950 |
|
1 |
70 |
16 |
35 |
1050 |
|
1 |
95 |
16 |
36 |
1150 |
|
1 |
120 |
16 |
38 |
1300 |
|
1 |
150 |
25 |
39 |
1500 |
|
1 |
185 |
25 |
41 |
1650 |
|
1 |
240 |
25 |
44 |
1850 |
|
1 |
300 |
25 |
46 |
2100 |
|
1 |
400 |
35 |
49 |
2550 |
|
NA2XSY 18/30 (36)kV Cable |
1 |
50 |
16 |
41 |
1190 |
|
1 |
70 |
16 |
42 |
1315 |
|
1 |
95 |
16 |
43 |
1450 |
|
1 |
120 |
16 |
45 |
1580 |
|
1 |
150 |
25 |
47 |
1800 |
|
1 |
185 |
25 |
49 |
1965 |
|
1 |
240 |
25 |
51 |
2230 |
|
1 |
300 |
25 |
53 |
2470 |
|
1 |
400 |
35 |
56 |
2920 |
NA2XSY Cable Why Choose Huadong:
As a professional cable manufacturer with decades of experience, Huadong Cable produces premium NA2XSY Cable that meet the highest industry standards.
✔ Ultimate Fire Safety – LSZH (Low Smoke Zero Halogen) with 180+ minutes circuit integrity (IEC 60331 certified)
✔ Medium Voltage Excellence – XLPE insulation for superior dielectric strength (12/20kV, 18/30kV ratings)
✔ Armored Durability – Corrosion-resistant steel tape armor for underground & harsh environments
✔ Low Toxicity – Minimal smoke emission for safer evacuation routes
