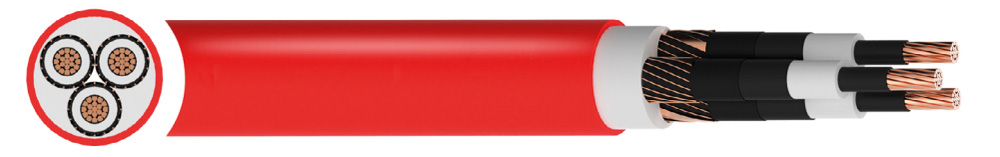

N2XSEY Cable

N2XSEY Cable Description:

N2XSEY cable is the three-core variants of the cable N2XSY where the 'E' in the designation refers to each of the three cores being individually screened. N2XSEY cables are available in voltages including: 6/10kV, 8.7/15kV, 12/20kV and 18/30kV. N2XSEY have a cross-linked polyethylene (XLPE) insulation, copper wire screen, and a polyvinyl chloride (PVC) oversheath, which makes them particular easy to lay even in difficult line guideways and in temperatures as low as -5°C. They are widely used in the building and construction, renewable energy, and power transmission industries where the cables can be laid directly into the ground or cable ducts.



N2XSEY Cable Characteristics:

Voltage Rating Uo/U (Um)	6/10 (12)kV | 8.7/15 (17.5)kV | 12/20 (24)kV | 18/30 (36)kV
Maximum conductor operating temperature	90°C
Initial temperature at S.C.C for metallic screen	80°C
Maximum conductor temperature during S.C	250°C
Minimum Bending Radius	10 x overall diameter



N2XSEY Cable Construction:

Conductor	Class 2 Stranded copper conductor
Inner Layer	Extruded Inner Semi Conductor (Bonded Type)
Insulation	XLPE (Cross-Linked Polyethylene)
Outer Layer	Extruded Outer Semi Conductor (Strippable Type)
Screen	Copper wires with Open Helix Copper Tape Screen
Outer Sheath	PVC (Polyvinyl Chloride)
Sheath Colour	Red Black



N2XSEY Cable Specifications:

Voltage	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL SCREEN CROSS SECTIONAL AREA mm2	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
N2XSEY 6/10 (12)kV	3	50	16	3.4	2.4	43.8	2752
	3	70	16	3.4	2.5	47.9	3513
	3	95	16	3.4	2.7	51.1	4399
	3	120	16	3.4	2.8	54.3	5241
	3	150	25	3.4	2.9	58	6300
	3	185	25	3.4	3	61.4	7440
	3	240	25	3.4	3.2	66.8	9359
	3	300	25	3.4	3.3	72.2	11267
	3	400	35	3.4	3.6	78.4	14127
	3	500	35	3.4	3.8	86.2	17513
N2XSEY 8.7/15 (17.5)kV	3	50	16	4.5	2.6	48.5	3092
	3	70	16	4.5	2.7	52.6	3882
	3	95	16	4.5	2.8	55.6	4764
	3	120	16	4.5	2.9	58.9	5637
	3	150	25	4.5	3.1	62.5	6712
	3	185	25	4.5	3.2	65.9	7877
	3	240	25	4.5	3.3	71.3	9832
	3	300	25	4.5	3.5	76.9	11814
	3	400	35	4.5	3.7	82.9	14682
	3	500	35	4.5	3.9	90.7	18123
N2XSEY 12/20 (24)kV	3	50	16	5.5	2.8	53.3	3474
	3	70	16	5.5	2.9	57.3	4288
	3	95	16	5.5	3	59.9	5173
	3	120	16	5.5	3.1	62.9	6028
	3	150	25	5.5	3.2	67	7155
	3	185	25	5.5	3.3	70.5	8352
	3	240	25	5.5	3.5	76.1	10383
	3	300	25	5.5	3.6	81.4	12356
	3	400	35	5.5	3.9	87.7	15322
	3	500	35	5.5	4.1	95.2	18760
N2XSEY 18/30 (36)kV	3	50	16	8	3.1	64.5	4471
	3	70	16	8	3.2	68.1	5332
	3	95	16	8	3.4	71.3	6324
	3	120	16	8	3.5	74.5	7265
	3	150	25	8	3.6	78.6	8463
	3	185	25	8	3.7	82.1	9720
	3	240	25	8	3.9	87.7	11853
	3	300	25	8	4	93	13919
	3	400	35	8	4.3	99.1	16960
	3	500	35	8	4.5	106.8	20577



N2XSEY Cable Why Choose Huadong

As a leading cable manufacturer with 30+ years of industry expertise, Huadong Cable delivers premium N2XSEY cables engineered for reliability in critical medium-voltage applications, featuring superior XLPE insulation, copper tape shielding, and robust construction that meets stringent international standards including IEC 60502 and GB/T 12706 for optimal performance in power distribution networks, industrial plants, and renewable energy projects.
