N2XS2Y Cable

N2XS2Y Cable Description:

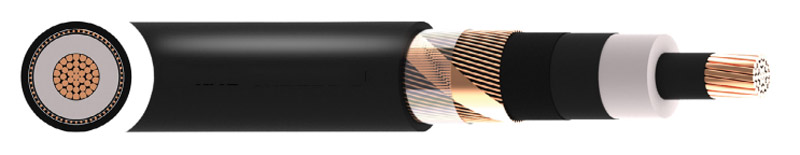

N2XS2Y cable is single core copper conductor XLPE-insulated medium voltage cables with a medium density polyethylene (MDPE) or in some cases a high density Polyethylene (HDPE) oversheath.

N2XS2Y cable is similar to N2XSY cable equivalent which have PVC oversheathing, the high durability of MDPE (Medium Density Polyethylene) gives the N2XS2Y cable a much greater degree of resistance to mechanical stress and abrasion both during the installation and during operation. Additionally, the inherent water resistance of PE offers valuable protection for external installations.

N2XS2Y Cable Characteristics

Voltage Rating Uo/U (Um)	6/10 (12)kV	8.7/15 (17.5)kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (5 mins)	-	42kV AC 50Hz (5 mins)	63kV AC 50Hz (5 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

N2XS2Y Cable Construction

Conductor	Class 2 Stranded Copper
Conductor Screen	Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Semi-conductive material (bonded)
Screen	Copper wires and copper tape
Outer Sheath	MDPE (Medium Density Polyethylene)
Sheath Colour	Red Black

N2XS2Y Cable Specifications

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS	NOMINAL INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATION
		Conductor	Screen			INNER	OUTER
N2XS2Y 6/10 (12)kV Cable	1	50	16	8.1	10 x 2.62	0.5	0.4	3.4	2.96	16.3
	1	70	16	9.7	14 x 2.62	0.5	0.4	3.4	2.96	17.9
	1	95	16	11.4	19 x 2.62	0.5	0.4	3.4	2.96	19.6
	1	120	16	12.7	19 x 2.97	0.5	0.4	3.4	2.96	20.9
	1	150	25	14.5	19 x 3.20	0.5	0.4	3.4	2.96	22.7
	1	185	25	15.9	27 x 2.62	0.5	0.4	3.4	2.96	24.1
	1	240	25	18.6	48 x 2.62	0.5	0.4	3.4	2.96	26.8
	1	300	25	20.7	61 x 2.62	0.5	0.4	3.4	2.96	28.9
	1	400	35	23.5	61 x 2.97	0.5	0.4	3.4	2.96	31.7
	1	500	35	26.5	61 x 3.29	0.5	0.4	3.4	2.96	34.7
	1	630	35	30.2	61 x 3.80	0.5	0.4	3.4	2.96	38.9
N2XS2Y 12/20 (24)kV Cable	1	50	16	8.1	10 x 2.62	0.5	0.4	5.5	4.85	20.3
	1	70	16	9.7	14 x 2.62	0.5	0.4	5.5	4.85	21.9
	1	95	16	11.4	19 x 2.62	0.5	0.4	5.5	4.85	23.6
	1	120	16	12.7	19 x 2.97	0.5	0.4	5.5	4.85	24.9
	1	150	25	14.5	19 x 3.20	0.5	0.4	5.5	4.85	26.7
	1	185	25	15.9	27 x 2.62	0.5	0.4	5.5	4.85	28.1
	1	240	25	18.6	48 x 2.62	0.5	0.4	5.5	4.85	30.8
	1	300	25	20.7	61 x 2.62	0.5	0.4	5.5	4.85	32.9
	1	400	35	23.5	61 x 2.97	0.5	0.4	5.5	4.85	35.7
	1	500	35	26.5	61 x 3.29	0.5	0.4	5.5	4.85	38.7
	1	630	35	30.2	61 x 3.80	0.5	0.4	5.5	4.85	42.9
N2XS2Y 18/30 (36)kV Cable	1	50	16	8.1	10 x 2.62	0.5	0.4	8	7.1	25.1
	1	70	16	9.7	14 x 2.62	0.5	0.4	8	7.1	26.7
	1	95	16	11.4	19 x 2.62	0.5	0.4	8	7.1	28.4
	1	120	16	12.7	19 x 2.97	0.5	0.4	8	7.1	29.7
	1	150	25	14.5	19 x 3.20	0.5	0.4	8	7.1	31.5
	1	185	25	15.9	27 x 2.62	0.5	0.4	8	7.1	32.9
	1	240	25	18.6	48 x 2.62	0.5	0.4	8	7.1	35.6
	1	300	25	20.7	61 x 2.62	0.5	0.4	8	7.1	37.7
	1	400	35	23.5	61 x 2.97	0.5	0.4	8	7.1	40.5
	1	500	35	26.5	61 x 3.29	0.5	0.4	8	7.1	43.5
	1	630	35	30.2	61 x 3.80	0.5	0.4	8	7.1	47.7

N2XS2Y Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium N2XS2Y Cable that meet the highest industry standards.
? High Voltage Reliability – Rated up to 18/30 (36)kV with superior dielectric strength
? Moisture-Resistant Design – Impervious radial water barrier (HDPE sheath)
? EMI Protection – Copper tape screen + aluminum laminate for interference-free operation
? Corrosion-Resistant – Special outer sheath for underground/direct burial use
