YMz1Krvasdlwd Cable

YMz1Krvasdlwd Cable Description:

YMz1Krvasdlwd cable is medium-voltage copper conductor cables available in voltage ratings of 8.7/15kV, 12/20kV and 18/30kV, suitable for an operating temperature range of 0°C to +90°C. Designed for installation in the Netherlands, with compliance to NEN-3620. YMz1Krvasdlwd cable availables as single or 3-core multicore variants. The YMz1Krvasdlwd cables are suitable for installation direct in the ground, or into cable ducting. Where the cable ducts risks being waterlogged, these cables are manufactured with both a radial and longitudinal waterblocking tape to give additional protection to the underlying insulation and conductors.

YMz1Krvasdlwd Cable Characteristics:

Voltage Rating Uo/U	8.7/15kV | 12/20kV | 18/30kV
Fixed Temperature Rating	0°C to +90°C
Maximum Conductor Short-Circuit Temp up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

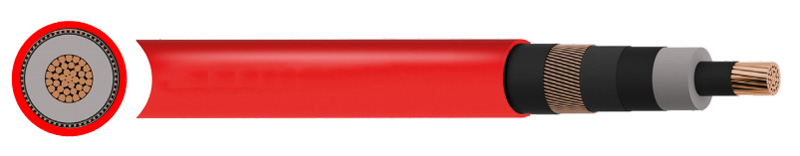

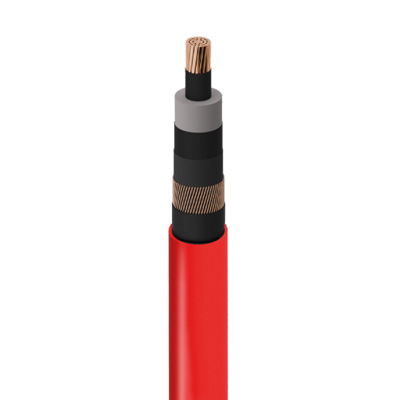

YMz1Krvasdlwd Cable Construction:

Conductor	Class 2 Stranded Copper
Inner Semi-Conductive Layer	Semi-Conductive Material
Insulation	XLPE (Cross-Linked Polyethylene)
Outer Semi-Conductive Layer	Semi-Conductive Material
Screen	Copper wires and tape
Tape	Longitudinal and Radial Water Blocking
Outer Sheath	LSZH (Low Smoke Zero Halogen) UV Resistant
Sheath Colour	Red

YMz1Krvasdlwd Cable Specifications:

Voltage	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL CROSS SECTIONAL AREA OF SCREEN	NOMINAL DIAMETER OVER CONDUCTOR	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm		NOMINAL THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
		mm²	mm²	mm	mm	Inner	Outer	mm	mm	kg/km
YMz1Krvasdlwd 8.7/15kV Cable	1	50	25	8.1	4.5	0.5	0.40(fully bonded)	2.5	28	1250
	1	70	25	9.7	4.5	0.5	0.40(fully bonded)	2.5	29	1500
	1	95	25	11.4	4.5	0.5	0.40(fully bonded)	2.5	31	1800
	1	120	25	12.65	4.5	0.5	0.40(fully bonded)	2.5	32	2000
	1	150	25	14.4	4.5	0.5	0.40(fully bonded)	2.5	34	2300
	1	185	25	15.75	4.5	0.5	0.40(fully bonded)	2.5	35	2700
	1	240	25	18.2	4.5	0.5	0.40(fully bonded)	2.5	38	3300
	1	300	25	20.5	4.5	0.5	0.40(fully bonded)	2.5	40	4000
	1	400	50	23	4.5	0.5	0.40(fully bonded)	2.5	43	5000
	1	500	50	26	4.5	0.5	0.40(fully bonded)	2.5	47	6100
	1	630	50	29.7	4.5	0.5	0.40(fully bonded)	2.5	51	7400
YMz1Krvasdlwd 12/20kV Cable	1	50	25	8.1	5.5	0.5	0.40(fully bonded)	2.5	30	1300
	1	70	25	9.7	5.5	0.5	0.40(fully bonded)	2.5	31	1600
	1	95	25	11.4	5.5	0.5	0.40(fully bonded)	2.5	33	1900
	1	120	25	12.65	5.5	0.5	0.40(fully bonded)	2.5	34	2200
	1	150	25	14.4	5.5	0.5	0.40(fully bonded)	2.5	36	2500
	1	185	25	15.75	5.5	0.5	0.40(fully bonded)	2.5	37	2800
	1	240	25	18.2	5.5	0.5	0.40(fully bonded)	2.5	40	3500
	1	300	25	20.5	5.5	0.5	0.40(fully bonded)	2.5	42	4000
	1	400	50	23	5.5	0.5	0.40(fully bonded)	2.5	45	5100
	1	500	50	26	5.5	0.5	0.40(fully bonded)	2.5	48	6250
	1	630	50	29.7	5.5	0.5	0.40(fully bonded)	2.5	52	7500
YMz1Krvasdlwd 18/30kV Cable	1	50	25	8.1	8	0.5	0.40(fully bonded)	2.5	35	1600
	1	70	25	9.7	8	0.5	0.40(fully bonded)	2.5	36	1800
	1	95	25	11.4	8	0.5	0.40(fully bonded)	2.5	38	2200
	1	120	25	12.65	8	0.5	0.40(fully bonded)	2.5	39	2400
	1	150	25	14.4	8	0.5	0.40(fully bonded)	2.5	41	2750
	1	185	25	15.75	8	0.5	0.40(fully bonded)	2.5	42	3100
	1	240	25	18.2	8	0.5	0.40(fully bonded)	2.5	45	3750
	1	300	25	20.5	8	0.5	0.40(fully bonded)	2.5	47	4400
	1	400	50	23	8	0.5	0.40(fully bonded)	2.5	50	5500
	1	500	50	26	8	0.5	0.40(fully bonded)	2.5	54	6600
	1	630	50	29.7	8	0.5	0.40(fully bonded)	2.5	58	8000
