MV Cable
NA2XSH Cable medium voltage cable, along with the multicore variants designated NA2XSEH, are low smoke zero halogen (LSZH) insulated and sheathed cables. This cable is the aluminium conductor equivalent of the N2XSH cables, typically selected where space constraints in installation are not a consideration, as aluminium cables are significantly larger than the equivalent current carrying capacity sized copper cables.
NA2XSH cable is specified with a voltage rating of 12/20kV. And NA2XSH cable is also available in other voltage ratings, including 6/10kV, 8.7/15kV and 18/30kV. Like these copper cables, the NA2XSH 6/10kV, 12/20kV and 18/30kV cables are also available with additional waterblocking layers, either single - NA2XS(F)H - or dual - NA2XS(FL)H. This provides a longitudinal and radial layer of protection for the conductor in the event that the cables are installed in places subject to intermittent flooding or waterlogging, such as cable ducts.
| Voltage Rating Uo/U (Um) | 12/20 (24)kV |
| Test Voltage | 42kV AC 50Hz (5 mins) |
| Temperature Rating | -20°C to +60°C |
| Permissible Conductor Operating Temperature | +90°C |
| Permissible Short Circuit Temperature up to 5 sec | 250°C |
| Minimum Bending Radius | 15 x overall diameter |

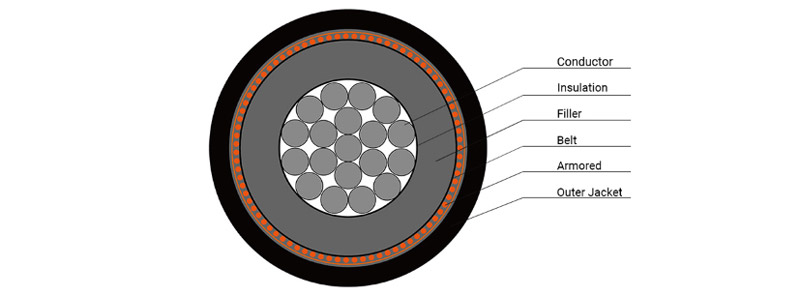

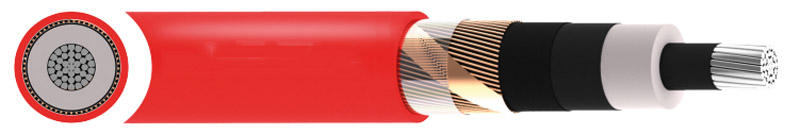

| NA2XSH 12/20 (24)kV Cable | NA2XS(F)H 12/20 (24)kV Cable | NA2XS(FL)H 12/20 (24)kV Cable | |
| Conductor | Class 2 Stranded Aluminium | ||
| Conductor Screen | Semi-conductive material | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||
| Insulation Screen | Semi-conductive material (bonded) | ||
| Longitudinal Waterblocking | Semi-conductive swellable tape | ||
| Screen | Copper wires and copper tape | ||
| Longitudinal Waterblocking | - | Swellable Tapes | |
| Radial Waterblocking | - | Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath | |
| Outer Sheath | LSZH (Low Smoke Zero Halogen) | ||
| Sheath Colour | Red | Red Black | |
|
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER mm | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm | ||
| Conductor | Screen | INNER | OUTER | ||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 20.4 |
| 1 | 70 | 16 | 9.7 | 19 x 2.18 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.65 | 19 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 5.5 | 4.85 | 26.6 |
| 1 | 185 | 25 | 15.75 | 37 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 28.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 30.9 |
| 1 | 300 | 25 | 20.5 | 61 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 33.2 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26 | 61 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
As a professional cable manufacturer with decades of experience, Huadong Cable produces premium NA2XSH cable that meet the highest industry standards.
✔ Ultimate Fire Safety – LSZH (Low Smoke Zero Halogen) with 180+ minutes circuit integrity (IEC 60331 certified)
✔ Medium Voltage Reliability – XLPE insulation for superior dielectric strength (12/20kV, 18/30kV)
✔ Armored Durability – Steel wire armor for mechanical & rodent protection
✔ Corrosion-Resistant – Special sheathing for harsh/damp environments
For the NA2XSH NA2XS(F)H NA2XS(FL)H Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
