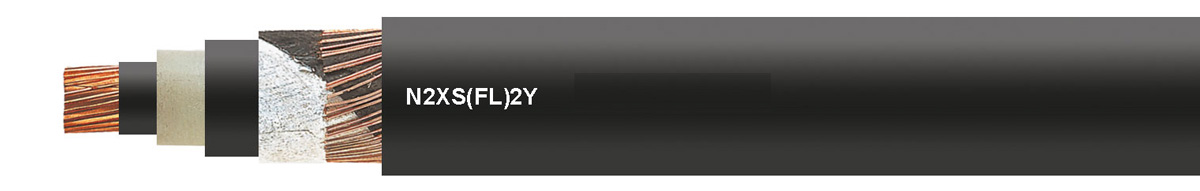

N2XS(FL)2Y Cable

N2XS(FL)2Y Cable Description:

N2XS(FL)2Y Cable is longitudinally and transversely water-tight PE medium voltage cable with copper conductor. PE sheath secures increased mechanical resistance during and after laying. Swellable tape blocks water spreading within the cable.Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. N2XS(FL)2Y cable medium voltage power cables suitable for distribution networks and generation units, laid in residental or industrial areas, underground or in ducts.

N2XS(FL)2Y Cable Voltage Rating:

The standard voltage rating for this range is as follows:
6/10 (12)kV – Test Voltage 21kV
8.7/15 (17.5)kV – Test Voltage 30.45kV
12/20 (24)kV – Test Voltage 42kV
18/30 (36)kV – Test Voltage 63kV

N2XS(FL)2Y Cable Characteristics

Voltage Rating Uo/U	6/10 (12)kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (5 mins)	42kV AC 50Hz (5 mins)	63kV AC 50Hz (5 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

N2XS(FL)2Y Cable Construction

Conductor	Class 2 Stranded Copper
Conductor Screen	Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Semi-conductive material (bonded)
Longitudinal Waterblocking	Semi-conductive swellable tape
Screen	Copper wires and copper tape
Longitudinal Waterblocking	Swellable Tapes
Radial Waterblocking	Al/PET (Aluminium/Polyester) Tape bonded to sheath
Outer Sheath	MDPE (Medium Density Polyethylene)
Sheath Colour	Red Black

N2XS(FL)2Y Cable Specifications

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER mm		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
		Conductor	Screen			INNER	OUTER
N2XS(FL)2Y 6/10 (12)kV Cable	1	50	16	8.1	10 x 2.62	0.5	0.4	3.4	2.96	16.3
	1	70	16	9.7	14 x 2.62	0.5	0.4	3.4	2.96	17.9
	1	95	16	11.4	19 x 2.62	0.5	0.4	3.4	2.96	19.6
	1	120	16	12.7	19 x 2.97	0.5	0.4	3.4	2.96	20.9
	1	150	25	14.5	19 x 3.20	0.5	0.4	3.4	2.96	22.7
	1	185	25	15.9	27 x 2.62	0.5	0.4	3.4	2.96	24.1
	1	240	25	18.6	48 x 2.62	0.5	0.4	3.4	2.96	26.8
	1	300	25	20.7	61 x 2.62	0.5	0.4	3.4	2.96	28.9
	1	400	35	23.5	61 x 2.97	0.5	0.4	3.4	2.96	31.7
	1	500	35	26.5	61 x 3.29	0.5	0.4	3.4	2.96	34.7
	1	630	35	30.2	61 x 3.80	0.5	0.4	3.4	2.96	38.9
N2XS(FL)2Y 12/20 (24)kV Cable	1	50	16	8.1	10 x 2.62	0.5	0.4	5.5	4.85	20.3
	1	70	16	9.7	14 x 2.62	0.5	0.4	5.5	4.85	21.9
	1	95	16	11.4	19 x 2.62	0.5	0.4	5.5	4.85	23.6
	1	120	16	12.7	19 x 2.97	0.5	0.4	5.5	4.85	24.9
	1	150	25	14.5	19 x 3.20	0.5	0.4	5.5	4.85	26.7
	1	185	25	15.9	27 x 2.62	0.5	0.4	5.5	4.85	28.1
	1	240	25	18.6	48 x 2.62	0.5	0.4	5.5	4.85	30.8
	1	300	25	20.7	61 x 2.62	0.5	0.4	5.5	4.85	32.9
	1	400	35	23.5	61 x 2.97	0.5	0.4	5.5	4.85	35.7
	1	500	35	26.5	61 x 3.29	0.5	0.4	5.5	4.85	38.7
	1	630	35	30.2	61 x 3.80	0.5	0.4	5.5	4.85	42.9
N2XS(FL)2Y 18/30 (36)kV Cable	1	50	16	8.1	10 x 2.62	0.5	0.4	8	7.1	25.1
	1	70	16	9.7	14 x 2.62	0.5	0.4	8	7.1	26.7
	1	95	16	11.4	19 x 2.62	0.5	0.4	8	7.1	28.4
	1	120	16	12.7	19 x 2.97	0.5	0.4	8	7.1	29.7
	1	150	25	14.5	19 x 3.20	0.5	0.4	8	7.1	31.5
	1	185	25	15.9	27 x 2.62	0.5	0.4	8	7.1	32.9
	1	240	25	18.6	48 x 2.62	0.5	0.4	8	7.1	35.6
	1	300	25	20.7	61 x 2.62	0.5	0.4	8	7.1	37.7
	1	400	35	23.5	61 x 2.97	0.5	0.4	8	7.1	40.5
	1	500	35	26.5	61 x 3.29	0.5	0.4	8	7.1	43.5
	1	630	35	30.2	61 x 3.80	0.5	0.4	8	7.1	47.7

N2XS(FL)2Y Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium N2XS(FL)2Y Cable that meet the highest industry standards. ✔ Exceptional Fire Performance – LSZH (Low Smoke Zero Halogen) with flame-retardant properties (IEC 60332-3 Cat A)
✔ High Voltage Reliability – Rated for 18/30 (36)kV with superior dielectric strength
✔ Advanced Moisture Barrier – Triple-layer radial water blocking system
✔ EMI/RFI Protection – Dual copper screen + aluminum laminate construction
✔ Corrosion-Resistant – Special HDPE outer sheath for harsh environments
