MV 90 Cable

MV 90 Cable Description:

MV-90 cable's rated temperature is 90°C, suitable for general industrial and environmental environments with relatively low temperatures. MV-90 medium voltage cables are usually made up of several wires or groups of wires twisted together, with each group of wires insulated from each other and twisted around a center. MV-90 cable is composed of a moisture-blocked reverse lay, compressed stranded soft-drawn copper covered by a semi-conducting cross-linked polyethylene strand shield, a tree-retardant cross-linked polyethylene primary insulation, and a semi-conducting cross-linked polyethylene insulation shield. MV-90 cable conductors are available with a 133% insulation level. A concentric neutral of bare copper wires and a sunlight-resistant, -40°C-rated, insulating linear low-density polyethylene jacket are applied over the insulation shield.

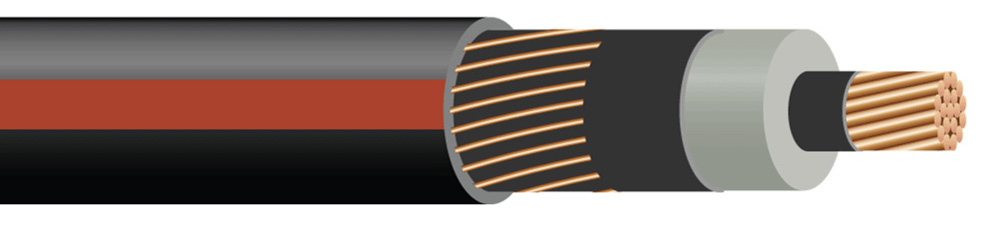

MV 90 Cable Construction:

Conductors	Stranded Bare Copper
Conductor Shield	Extruded Semi-Conducting Strand Shield
Insulation	XLPE Insulation
Insulation Shield	Extruded Semi-Conducting Insulation Shield
Metallic Shield	Bare Copper Wire Shield
Jacket	Sunlight Resistant PVC Jacket

MV 90 Cable Specifications:

	SIZE AWG OR KCMIL	STRANDING	NOMINAL CONDUCTOR DIAMETER INCHES	NOMINAL INSULATION DIAMETER INCHES	NOMINAL INSUL. SHLD. DIAMETER INCHES	MIN. AVG. JACKET THICKNESS INCHES	APPROX. O.D.	APPROX. NET WGHT LBS./M FT.	AMPS1
5kV MV-90 CABLE 100% or 133% Insulation
	8 AWG	7/.0486	0.143	0.39	0.47	0.06	0.64	195	55
	6 AWG	7/.0612	0.18	0.425	0.505	0.06	0.675	244	75
	4 AWG	7/.0772	0.227	0.475	0.555	0.06	0.725	309	97
	2 AWG	7/.0974	0.285	0.53	0.61	0.06	0.78	409	130
	1 AWG	19/.0745	0.325	0.57	0.65	0.06	0.82	475	150
	1/0 AWG	19/.0745	0.365	0.61	0.69	0.08	0.9	559	180
	2/0 AWG	19/.0837	0.409	0.655	0.735	0.08	0.945	661	205
	4/0 AWG	19/.1055	0.516	0.765	0.845	0.08	1.055	983	280
	250 KCMIL	37/.0822	0.562	0.82	0.9	0.08	1.12	1127	315
	350 KCMIL	37/.0973	0.666	0.925	1.005	0.08	1.225	1482	385
	500 KCMIL	37/.1162	0.795	1.055	1.155	0.08	1.375	2069	475
750 KCMIL	61/.1109	0.975	1.255	1.355	0.08	1.575	2940	600
15kV MV-90 CABLE 100% or 133% Insulation	2 AWG	7/.0974	0.285	0.79	0.87	0.08	1.09	609	150
	1 AWG	19/.0664	0.325	0.825	0.905	0.08	1.12	682	170
	1/0 AWG	19/.0745	0.365	0.865	0.945	0.08	1.16	774	195
	2/0 AWG	19/.0837	0.409	0.91	0.99	0.08	1.205	886	225
	4/0 AWG	19/.1055	0.516	1.015	1.11	0.08	1.325	1255	295
	250 KCMIL	37/.0822	0.562	1.075	1.175	0.08	1.39	1411	330
	350 KCMIL	37/.0973	0.666	1.18	1.28	0.08	1.495	1791	395
	500 KCMIL	37/.1162	0.795	1.31	1.41	0.08	1.625	2339	480
	750 KCMIL	61/.1109	0.975	1.5	1.61	0.11	1.885	3341	585

MV 90 Cable Why Choose Huadong:

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium MV 90 Cable that meet the highest industry standards.
✔ Optimized Thermal Performance – Rated for continuous operation at 90°C
✔ Superior XLPE Insulation – Excellent dielectric strength for 5kV to 35kV applications
✔ Moisture Resistant – Triple-layer design prevents water ingress
✔ Flexible & Durable – Annealed copper conductors with HDPE outer sheath
