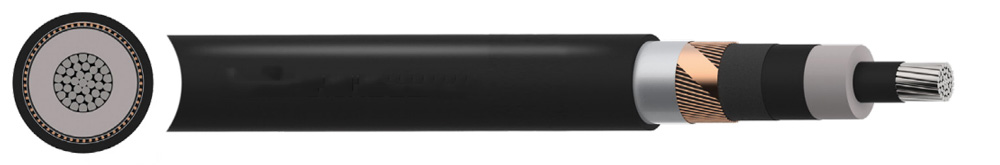

NA2XS(FL)2Y Cable

NA2XS(FL)2Y Cable Description:

NA2XS(FL)2Y cable is single core aluminium medium voltage cable with cross-linked polyethylene (XLPE) insulation, copper wire screen, and a polyethylene (PE) oversheath. NA2XS(FL)2Y cable voltage rating is 6/10kV, 12/20kV, or 18/30kV , With single and double layer water blocking tapes for additional water resistance. NA2XS(FL)2Y cable used for distribution networks and generation units, suitable for external installation including in buried cable ducts.

NA2XS(FL)2Y Cable Characteristics:

Voltage Rating Uo/U (Um)	6/10 (12)kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (5 mins)	42kV AC 50Hz (5 mins)	63kV AC 50Hz (5 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

NA2XS(FL)2Y Cable Construction:

Conductor	Class 2 stranded Aluminium
Conductor Screen	Semi-conductive  material
Insulation	XLPE  (Cross-linked Polyethylene)
Insulation Screen	Semi-conductive material (bonded)
Longitudinal Waterblock	Semi-conductive water swelling tape
Metallic Screen	Copper Wires and Tape
Longitudinal Waterblock	Swellable Tapes
Radial  Waterblocking	Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
Sheath	MOPE (Medium Density Polyethylene)
Sheath Colour	Red / Black

NA2XS(FL)2Y Cable Specifications:

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER mm		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
		Conductor	Screen			INNER	OUTER
NA2XS(FL)2Y 6/10 (12)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
	1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
	1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
	1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
	1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	22.6
	1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
	1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
	1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
	1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
	1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
	1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9
NA2XS(FL)2Y 12/20 (24)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	5.5	4.85	20.4
	1	70	16	9.7	19 x 2.18	0.5	0.4	5.5	4.85	21.9
	1	95	16	11.4	19 x 2.55	0.5	0.4	5.5	4.85	23.6
	1	120	16	12.65	19 x 2.90	0.5	0.4	5.5	4.85	24.9
	1	150	25	14.4	19 x 3.16	0.5	0.4	5.5	4.85	26.6
	1	185	25	15.75	37 x 2.55	0.5	0.4	5.5	4.85	28.4
	1	240	25	18.2	37 x 2.90	0.5	0.4	5.5	4.85	30.9
	1	300	25	20.5	61 x 2.55	0.5	0.4	5.5	4.85	33.2
	1	400	35	23	61 x 2.90	0.5	0.4	5.5	4.85	35.7
	1	500	35	26	61 x 3.20	0.5	0.4	5.5	4.85	38.7
	1	630	35	30.2	61 x 3.65	0.5	0.4	5.5	4.85	42.9
NA2XS(FL)2Y 18/30 (36)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
	1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
	1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
	1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
	1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
	1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
	1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
	1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38
	1	400	35	23	61 x 2.90	0.5	0.4	8	7.1	40.5
	1	500	35	26	61 x 3.20	0.5	0.4	8	7.1	43.5
	1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7
