N2XSY Cable

Brand Name: HuaDong Cable
Product Name：N2XSY Cable
Insulation: XLPE
Voltage: 1-35KV
Email: huadong@hdcablegroup.com
Discount Price

N2XSY Cable Description:

N2XSY cable is a single core cable with a stranded copper conductor, XLPE insulation, and PVC oversheath. N2XSY cable is red and should be protected against sunlight and UV radiation according to HD605 S2:2008 2.4.23. It can be manipulated and installed in ambient temperatures rangingen -5°C and +70°C.

N2XSY cable is similar in construction to NA2XSY cable, which has an aluminium conductor and which can sometimes be used as a cost-efficient alternative. Specified for power distribution networks, transformer stations, switching blocks and power plants, including in the renewable energy sector, the N2XSY offers a robust construction and low factor of dielectric loss for high operational reliability.

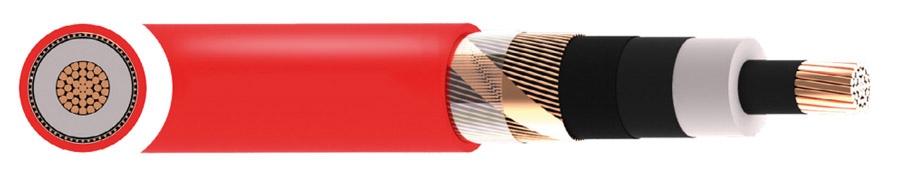

N2XSY Cable

N2XSY Cable Voltage Rating:

With the broad scope for applications and installations, the N2XSY cable is available with the following voltage ratings:
6/10 (12)kV – Test Voltage 21kV
12/20 (24)kV – Test Voltage 42kV
18/30 (36)kV – Test Voltage 63kV

N2XSY Cable Characteristics:

Voltage Rating (Uo/U)(Um)	6/10 (12)kV \| 12/20 (24)kV \| 18/30 (36)kV
Maximum conductor operating temperature	90°C
Initial temperature at S.C.C for metallic screen:	80°C
Maximum conductor temperature during S.C	250°C
Minimum Bending Radius	15 x overall diameter

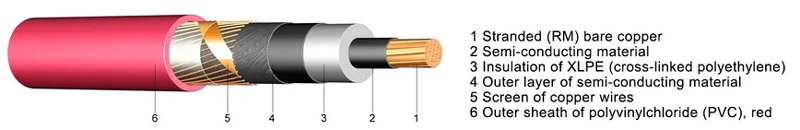

N2XSY Cable Construction

N2XSY Cable Construction:

Conductor	Class 2 Stranded copper conductor
Conductor Screen	Semi-conductive material (Bonded Type)
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Semi-conductive material (Strippable Type)
Screen	Copper wires with Open Helix Copper Tape Screen
Sheath	PVC (Polyvinyl Chloride)
Sheath Colour	Red Black

N2XSY Cable Specifications:

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL SCREEN CROSS SECTIONAL AREA mm2	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
N2XSY 6/10 (12)kV Cable	1	50	16	3.4	1.7	21.8	897
	1	70	16	3.4	1.7	23.6	1117
	1	95	16	3.4	1.8	25.1	1387
	1	120	16	3.4	1.8	26.5	1636
	1	150	25	3.4	1.9	28.5	2020
	1	185	25	3.4	1.9	30	2361
	1	240	25	3.4	2	32.6	2952
	1	300	25	3.4	2.1	35	3521
	1	400	35	3.4	2.2	38	4450
	1	500	35	3.4	2.3	41.6	5457
	1	630	35	3.4	2.4	46.5	6893
	1	800	35	3.4	2.5	50.8	8694
N2XSY 12/20 (24)kV Cable	1	50	16	5.5	1.8	26	1056
	1	70	16	5.5	1.9	28	1301
	1	95	16	5.5	1.9	29.3	1567
	1	120	16	5.5	2	30.9	1840
	1	150	25	5.5	2	32.7	2221
	1	185	25	5.5	2.1	34.2	2572
	1	240	25	5.5	2.2	36.8	3182
	1	300	25	5.5	2.2	39.2	3764
	1	400	35	5.5	2.3	42.2	4715
	1	500	35	5.5	2.4	45.8	5748
	1	630	35	5.5	2.5	50.7	7215
	1	800	35	5.5	2.7	55.2	9072
N2XSY 18/30 (36)kV Cable	1	50	16	8	2	31.4	1304
	1	70	16	8	2	33.2	1550
	1	95	16	8	2.1	34.5	1827
	1	120	16	8	2.1	35.9	2095
	1	150	25	8	2.2	37.9	2506
	1	185	25	8	2.2	39.4	2870
	1	240	25	8	2.3	42	3501
	1	300	25	8	2.4	44.6	4128
	1	400	35	8	2.5	47.6	5105
	1	500	35	8	2.6	51.2	6167
	1	630	35	8	2.7	56.1	7677
	1	800	35	8	2.8	60.4	9543

N2XSY Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium N2XSY Cable that meet the highest industry standards.

✔ Enhanced Safety – LSZH (Low Smoke Zero Halogen) construction with flame-retardant properties (IEC 60332)
✔ High Voltage Reliability – XLPE insulation for superior dielectric strength (rated up to 30kV)
✔ Moisture & Chemical Resistant – Ideal for underground, tunnels, and industrial plants
✔ Armored Protection – Steel tape armor for mechanical durability and rodent resistance

For the N2XSY Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
