NF C 33-226 AL-XLPE-MDPE Cable

NF C33-226 AL-XLPE-MDPE Cable Description:

NF C 33-226 AL cable refers to a standard for medium voltage cables, specifically those designed for public power distribution networks, with aluminum conductors. These cables are typically used for voltages of 12/20 kV and 18/30(36) kV. FR-N20XA8E-AR cables (aluminium conductor) are manufactured in accordance with NF C 33-226-a commonly specified French Normes cable designed for primary and secondary power distribution. The medium cables listed (also referenced as HTA cables in France) have a rated voltage of 12/20 kV. The cables with a rated voltage of 18/30 kV are referenced with the prefix FR-N30.

With the aluminium conductor variants of NF C 33-226 al cables available as both a single core cable and 3x1 (trefoil/triplex) cable, the FR-N20XA8E-AR MV cables at 12/20kV and the FR-N30XA8E-AR MV cables at 18/30 kV can be installed in ducts, buried directly, or in free air.



NF C 33-226 AL-XLPE-MDPE cables are insulated with XLPE to provide a maximum conductor operating temperature of +90°C. There is an aluminum tape metallic screen, with water-blocking tape wrapped underneath to prevent water ingress. The polyethylene sheathing offers a robust outer layer of environmental protection, resilient against tearing and abrasions and offering good water resistance.

NF C33-226 AL-XLPE-MDPE Cable Characteristics:

	FR-N20XA8E-AR 12/20kV Cable NF C 33-226 - AL/XLPE/MDPE	FR-N20XA8E-AR Triplex 12/20kV Cable NF C 33-226 - AL/XLPE/MDPE	FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - AL/XLPE/MDPE	FR-N20XA8E-AR Triplex 18/30kV Cable NF C 33-226 - AL/XLPE/MDPE
Voltage Rating Uo/U	12/20 (24)kV		18/30 (36)kV
Maximum conductor operating temperature	90°C
Initial temperature at S.C.C for metallic screen	80°C
Maximum conductor temperature during S.C	250°C
Minimum Bending Radius	20 x overall diameter

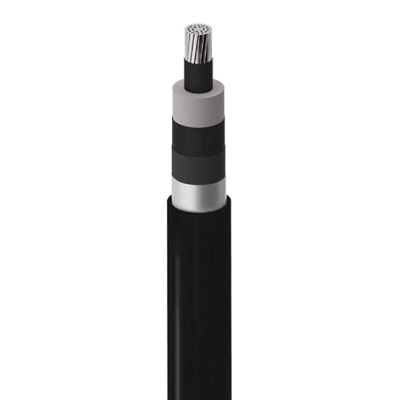

NF C33-226 AL-XLPE-MDPE Cable Construction:

Conductor	Class 2 stranded Aluminium
Conductor Screen	Extruded Inner Semi Conductor (Bonded Type)
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Scree	Extruded Inner Semi Conductor (Strippable Type)
Waterblocking	Semi Conductive Longitudinal Waterblocking  Tape
Aluminium Tape	Applied Longitudinally
Sheath	MDPE (Medium Density Polyethylene)
Sheath Colour	Black

NF C33-226 AL-XLPE-MDPE Cable Specifications:

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL SCREEN CROSS SECTIONAL AREA	NOMINAL CONDUCTOR SCREEN THICKNESS	NOMINAL INSULATION THICKNESS	NOMINAL INSULATION SCREEN THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
		mm2	mm2	mm	mm	mm	mm	mm	kg/km
NF C 33-226 AL/XLPE/MDPE 12/20kV Cable	1	50	15	0.6	4.5	0.7	1.7	25.8	614
	1	70	17	0.6	4.5	0.7	1.8	27.6	731
	1	95	18	0.6	4.5	0.7	1.8	29.1	833
	1	120	19	0.6	4.5	0.7	1.9	30.7	953
	1	150	20	0.6	4.5	0.7	1.9	32.9	1090
	1	185	21	0.6	4.5	0.7	2	34	1212
	1	240	22	0.6	4.5	0.7	2.1	36.6	1440
	1	300	24	0.6	4.5	0.7	2.1	39	1674
	1	400	26	0.6	4.5	0.7	2.3	41.9	2027
	1	500	28	0.6	4.5	0.7	2.4	45.1	2411
	1	630	31	0.7	4.5	0.7	2.5	50	3010
	1	800	34	0.7	4.5	0.7	2.6	55	3718

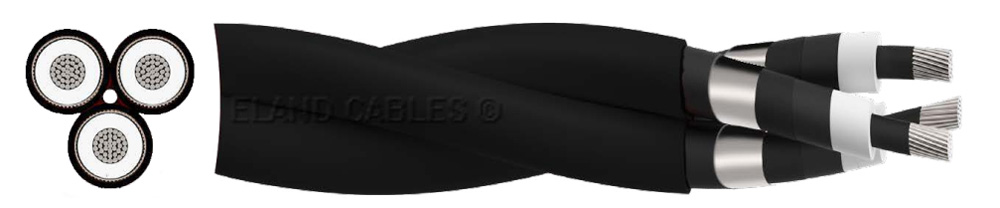

NF C 33-226 AL/XLPE/MDPE Triplex 12/20kV Cable	3x1	50	15	0.6	4.5	0.7	2.1	55.7	1845
	3x1	70	17	0.6	4.5	0.7	1.8	59.6	2197
	3x1	95	18	0.6	4.5	0.7	1.8	62.9	2509
	3x1	120	19	0.6	4.5	0.7	1.9	66.3	2872
	3x1	150	20	0.6	4.5	0.7	1.9	71.1	3287
	3x1	185	21	0.6	4.5	0.7	2	73.4	3659
	3x1	240	22	0.6	4.5	0.7	2.1	79.1	4349
	3x1	300	24	0.6	4.5	0.7	2.1	84.2	5057
	3x1	400	26	0.6	4.5	0.7	2.3	90.5	6132
NF C 33-226 AL/XLPE/MDPE 18/30kV Cable	1	50	18	0.6	6.7	0.7	1.9	30.6	819
	1	70	20	0.6	6.7	0.7	1.9	32.2	939
	1	95	21	0.6	6.7	0.7	2	33.9	1062
	1	120	22	0.6	6.7	0.7	2.1	35.5	1193
	1	150	23	0.6	6.7	0.7	2.1	37.7	1345
	1	185	24	0.6	6.7	0.7	2.2	38.8	1477
	1	240	25	0.6	6.7	0.7	2.2	41.2	1709
	1	300	27	0.6	6.7	0.7	2.3	43.8	1972
	1	400	29	0.6	6.7	0.7	2.4	46.5	2334
	1	500	31	0.6	6.7	0.7	2.5	49.7	2741
	1	630	34	0.7	6.7	0.7	2.6	54.6	3372
	1	800	37	0.7	6.7	0.7	2.8	59.8	4132
NF C 33-226 AL/XLPE/MDPE Triplex 18/30kV Cable	3x1	50	18	0.6	6.7	0.7	1.9	66.1	2469
	3x1	70	20	0.6	6.7	0.7	1.9	69.6	2829
	3x1	95	21	0.6	6.7	0.7	2	73.2	3203
	3x1	120	22	0.6	6.7	0.7	2.1	76.7	3602
	3x1	150	23	0.6	6.7	0.7	2.1	81.4	4064
	3x1	185	24	0.6	6.7	0.7	2.2	83.8	4459
	3x1	240	25	0.6	6.7	0.7	2.2	89	5166
	3x1	300	27	0.6	6.7	0.7	2.3	94.6	5965
	3x1	400	29	0.6	6.7	0.7	2.4	100.4	7063
