FHLR91XC13X & FHLR4GC13X Cable

FHLR91XC13X and FHLR4GC13X Cable Description:

FHLR91XC13X and FHLR4GC13X battery cables commonly used in conjunction with e-Mobility and EV applications, these cables have a voltage rating of 1000V AC and 1500V DC, alongside an extended operating temperature range of -40°C to +150°C. Distinguished by their conductor cross-sectional area size, the cables have different insulation materials. The FHLR91XC13X ranging from 2.52 to 6mm2 inclusive and using a cross-linked irradiated Polyolefin (XLPO), whilst the FHLR4GC13X range in conductor sizing from 8mm2 up to 150mm2 and use EVA, Ethylene Vinyl Acetate as insulation. Both cables have a tinned copper wire braid to screen for EMC interference and a thermoplastic Elastomer sheathing (TPE-E) designated by the reference code 13X.

FHLR91XC13X and FHLR4GC13X Cable Characteristics

Voltage Rating	U0: 1000V AC V0: 1500V DC
Test Voltage 50 Hz, 5 min	10kV AC
Temperature Range(3000h)	-40°C to + 150°C
Minimum Bending Radius	Fixed: 4x Overall diameter Flexing: 6x Overall diameter

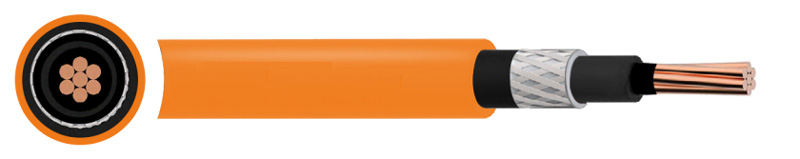

FHLR91XC13X and FHLR4GC13X Cable Construction

Conductor	Bare Copper
Insulation	91X: XLPO (Cross-linked irradiation Polyolefin) for cables <6 mm2 4G: EVA (Ethylene Vinyl Acetate) for cables >6 mm2
Screen	TCWB (Tinned copper wire braid)
Wrapping	Tape
Sheath	TPE-E (Vulcanised Thermoplastic Elastomer 13X)
Sheath Colour	Orange

FHLR91XC13X and FHLR4GC13X Cable Specifications

	NOMINAL CROSS SECTIONAL AREA mm2	CONDUCTOR			CABLE
		NUMBER OF INDIVIDUAL WIRES	NOMINAL DIAMETER OF INDIVIDUAL WIRES mm	NOMINAL DIAMETER mm	NOMINAL DIAMETER OF INSULATION mm	NOMINAL DIAMETER OF SCREEN mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/100m
FHLR91XC13X	2.5	50	0.26	2	2.85	3.3	5	4.9
	4	56	0.31	2.5	3.55	4	5.8	7
	6	84	0.31	3	4.15	4.7	6.6	9.8
FHLR4GC13X	8	60	0.41	3.8	5.05	5.6	7.6	12.5
	10	78	0.41	4.3	5.75	6.3	8.4	15.8
	12	92	0.41	4.7	6.1	6.7	8.9	17.9
	16	126	0.41	5.4	6.9	7.5	9.7	23
	20	154	0.41	6.2	7.6	8.3	10.6	28.2
	25	189	0.41	6.7	8.2	8.9	11.2	32.8
	30	224	0.41	7.4	9.1	9.8	12.1	38.5
	35	273	0.41	7.9	9.7	10.4	12.7	44.7
	40	301	0.41	8.5	10.4	11.3	13.6	51.3
	50	385	0.41	9.4	11.5	12.6	14.9	64.2
	60	294	0.51	10.6	12.6	13.5	15.9	73.1
	70	360	0.51	11.6	13.7	14.6	17	85.8
	95	480	0.51	13.5	16.2	17.3	19.9	115.3
	120	589	0.51	15.1	18	19.1	22.6	145.5
	150	741	0.51	17	20	21.3	24.9	177.4
