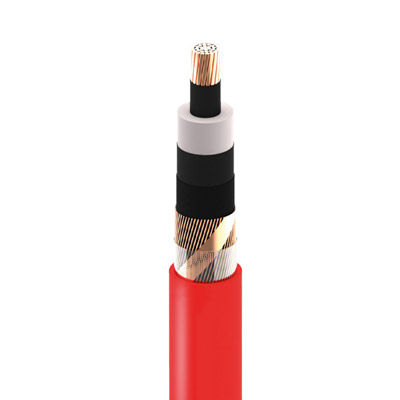

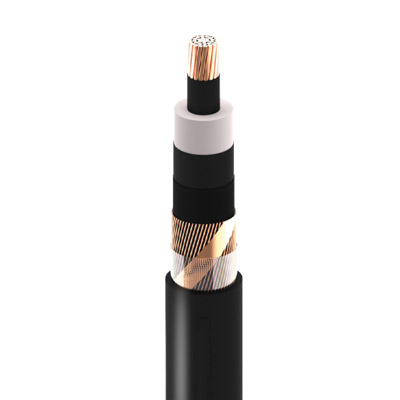

N2XS(F)2Y Cable

N2XS(F)2Y Cable Description:

N2XS(F)2Y cable is single core copper conductor XLPE-insulated medium voltage cables, the voltage include 6/10kV 12 / 20 kV and 18 / 30 kV. N2XS(F)2Y cable is used for installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The high mechanical durability of the PE-sheath permits strong mechanical stress during installation or during operation. The water blocking tape avoids water propagation inside the cable.

N2XS(F)2Y Cable Characteristics:

Voltage Rating Uo/U (Um)	6/10 (12)kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (5 mins)	42kV AC 50Hz (5 mins)	63kV AC 50Hz (5 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

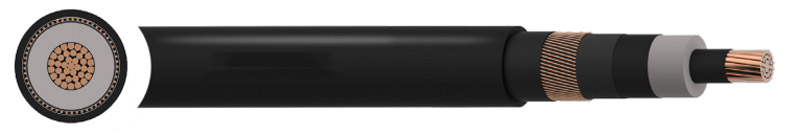

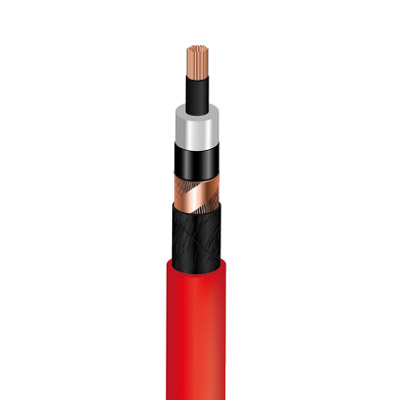

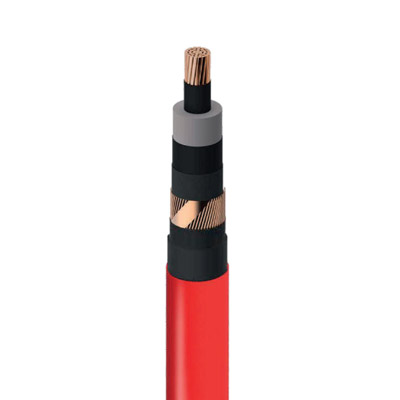

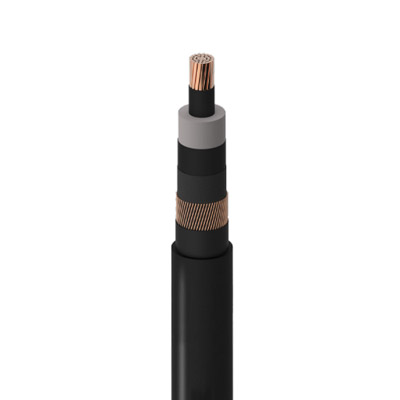

N2XS(F)2Y Cable Construction:

Conductor	Class 2 Stranded Copper
Conductor Screen	Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Insulation Screen	Semi-conductive material (bonded)
Longitudinal Waterblocking	Semi-conductive swellable tape
Screen	Copper wires and copper tape
Longitudinal Waterblocking	Swellable Tapes
Outer Sheath	MDPE (Medium Density Polyethylene)
Sheath Colour	Red Black

N2XS(F)2Y Cable Specifications:

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER mm		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
		Conductor	Screen			INNER	OUTER
N2XS(F)2Y 6/10 (12)kV	1	50	16	8.1	10 x 2.62	0.5	0.4	3.4	2.96	16.3
	1	70	16	9.7	14 x 2.62	0.5	0.4	3.4	2.96	17.9
	1	95	16	11.4	19 x 2.62	0.5	0.4	3.4	2.96	19.6
	1	120	16	12.7	19 x 2.97	0.5	0.4	3.4	2.96	20.9
	1	150	25	14.5	19 x 3.20	0.5	0.4	3.4	2.96	22.7
	1	185	25	15.9	27 x 2.62	0.5	0.4	3.4	2.96	24.1
	1	240	25	18.6	48 x 2.62	0.5	0.4	3.4	2.96	26.8
	1	300	25	20.7	61 x 2.62	0.5	0.4	3.4	2.96	28.9
	1	400	35	23.5	61 x 2.97	0.5	0.4	3.4	2.96	31.7
	1	500	35	26.5	61 x 3.29	0.5	0.4	3.4	2.96	34.7
	1	630	35	30.2	61 x 3.80	0.5	0.4	3.4	2.96	38.9
N2XS(F)2Y 12/20 (24)kV	1	50	16	8.1	10 x 2.62	0.5	0.4	5.5	4.85	20.3
	1	70	16	9.7	14 x 2.62	0.5	0.4	5.5	4.85	21.9
	1	95	16	11.4	19 x 2.62	0.5	0.4	5.5	4.85	23.6
	1	120	16	12.7	19 x 2.97	0.5	0.4	5.5	4.85	24.9
	1	150	25	14.5	19 x 3.20	0.5	0.4	5.5	4.85	26.7
	1	185	25	15.9	27 x 2.62	0.5	0.4	5.5	4.85	28.1
	1	240	25	18.6	48 x 2.62	0.5	0.4	5.5	4.85	30.8
	1	300	25	20.7	61 x 2.62	0.5	0.4	5.5	4.85	32.9
	1	400	35	23.5	61 x 2.97	0.5	0.4	5.5	4.85	35.7
	1	500	35	26.5	61 x 3.29	0.5	0.4	5.5	4.85	38.7
	1	630	35	30.2	61 x 3.80	0.5	0.4	5.5	4.85	42.9
N2XS(F)2Y 18/30 (36)kV	1	50	16	8.1	10 x 2.62	0.5	0.4	8	7.1	25.1
	1	70	16	9.7	14 x 2.62	0.5	0.4	8	7.1	26.7
	1	95	16	11.4	19 x 2.62	0.5	0.4	8	7.1	28.4
	1	120	16	12.7	19 x 2.97	0.5	0.4	8	7.1	29.7
	1	150	25	14.5	19 x 3.20	0.5	0.4	8	7.1	31.5
	1	185	25	15.9	27 x 2.62	0.5	0.4	8	7.1	32.9
	1	240	25	18.6	48 x 2.62	0.5	0.4	8	7.1	35.6
	1	300	25	20.7	61 x 2.62	0.5	0.4	8	7.1	37.7
	1	400	35	23.5	61 x 2.97	0.5	0.4	8	7.1	40.5
	1	500	35	26.5	61 x 3.29	0.5	0.4	8	7.1	43.5
	1	630	35	30.2	61 x 3.80	0.5	0.4	8	7.1	47.7

N2XS(F)2Y Cable Why Choose Huadong

As a professional cable manufacturer with decades of experience, Huadong Cable produces premium N2XS(F)2Y Cable that meet the highest industry standards. √ Exceptional Dielectric Strength – Rated for 18/30 (36)kV applications with superior insulation

√ Advanced Moisture Barrier – Triple-layer radial water blocking system
√ EMI/RFI Protection – Dual copper screen + aluminum laminate construction
√ Corrosion-Resistant – Special MDPE outer sheath for harsh environments
