NA2XS(F)2Y Cable

Brand Name: HuaDong Cable
Product Name：NA2XS(F)2Y Cable
Insulation: XLPE
Voltage: 1-35KV
Email: huadong@hdcablegroup.com
Discount Price

NA2XS(F)2Y Cable Description：

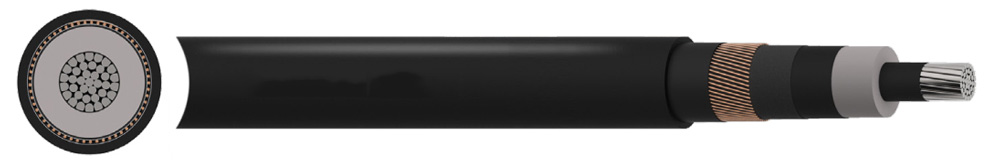

NA2XS(F)2Y cable with aluminium conductor, longitudinally watertight, is a single core aluminium medium voltage cable with cross-linked polyethylene (XLPE) insulation, copper wire screen, and a polyethylene (PE) oversheath. The robust and UV-resistant oversheath makes this cable ideally suited for fixed outdoor installations where there may be an element of mechanical stress and sunlight exposure. Its properties allow the laying of this cable in winter conditions as cold as -20°C.
NA2XS(F)2Y cable uses the German designations - most commonly referenced in Europe - but countries will have their own nomenclature too. For example: NA2XS(F)2Y is referenced as LXHIOE(be) in Portugal, and as RH5Z1-OL AL in Spain.

NA2XS(F)2Y Cable Characteristics：

Voltage Rating Uo/U (Um)	6/10 (12)kV	8.7/15 (17.5) kV	12/20 (24)kV	18/30 (36)kV
Test Voltage	21kV AC 50Hz (5 mins)	31kV AC 50Hz (5 mins)	42kV AC 50Hz (5 mins)	63kV AC 50Hz (5 mins)
Temperature Rating	-20°C to +60°C
Permissible Conductor Operating Temperature	+90°C
Permissible Short Circuit Temperature up to 5 sec	250°C
Minimum Bending Radius	15 x overall diameter

NA2XS(F)2Y Cable Construction：

Conductor	Class 2 stranded Aluminium
Conductor Screen	Semi-conductive extruded XLPE (Cross-linked Polyethylene)
Insulation	XLPE (Cross-linked Polyethylene)
Insulation Screen	Semi-conductive extruded XLPE (Cross-linked Polyethylene)
Longitudinal Waterblock	Semi-conductive water swelling tape
Metallic Screen	Copper Wires and Tape
Longitudinal Waterblock	Non-conductive water swelling tape
Sheath	MOPE (Medium Density Polyethylene)
Sheath Colour	Red / Black

NA2XS(F)2Y Cable Specifications：

	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER mm		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
	NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER	OUTER	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NA2XS(F)2Y 6/10 (12)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
	1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
	1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
	1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
	1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	22.6
	1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
	1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
	1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
	1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
	1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
	1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9
NA2XS(F)2Y 12/20 (24)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	5.5	4.85	20.4
	1	70	16	9.7	19 x 2.18	0.5	0.4	5.5	4.85	21.9
	1	95	16	11.4	19 x 2.55	0.5	0.4	5.5	4.85	23.6
	1	120	16	12.65	19 x 2.90	0.5	0.4	5.5	4.85	24.9
	1	150	25	14.4	19 x 3.16	0.5	0.4	5.5	4.85	26.6
	1	185	25	15.75	37 x 2.55	0.5	0.4	5.5	4.85	28.4
	1	240	25	18.2	37 x 2.90	0.5	0.4	5.5	4.85	30.9
	1	300	25	20.5	61 x 2.55	0.5	0.4	5.5	4.85	33.2
	1	400	35	23	61 x 2.90	0.5	0.4	5.5	4.85	35.7
	1	500	35	26	61 x 3.20	0.5	0.4	5.5	4.85	38.7
	1	630	35	30.2	61 x 3.65	0.5	0.4	5.5	4.85	42.9
NA2XS(F)2Y 18/30 (36)kV Cable	1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
	1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
	1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
	1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
	1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
	1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
	1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
	1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38
	1	400	35	23	61 x 2.90	0.5	0.4	8	7.1	40.5
	1	500	35	26	61 x 3.20	0.5	0.4	8	7.1	43.5
	1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7
