RZ1-K RZ1-K(AS) Cable

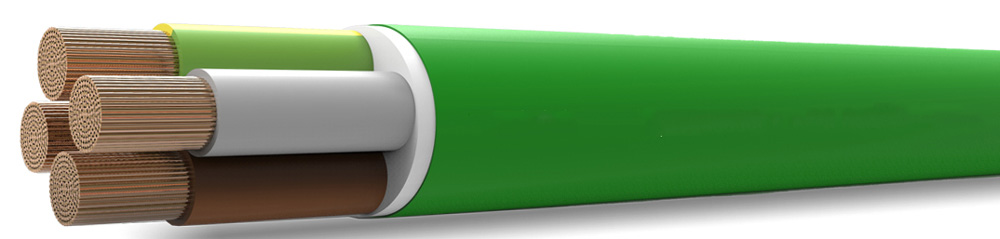

RZ1-K Cable Description:

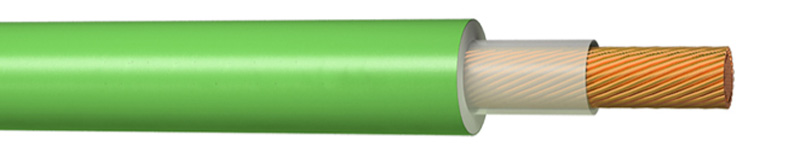

RZ1-K cable indicates a halogen-free, flexible cable with cross-linked polyethylene (XLPE) insulation and a halogen-free polyolefin outer sheath, designed for indoor fixed applications with a voltage rating is 0.6/1kV and 1.8/3kV.  RZ1-K cables include the 2-core, 3-core, 4-core and 5-core variations, with and without earth. In RZ1-K (AS) cable the (AS) references the flame retardant properties of the cable, meeting not only the single vertical flame test of IEC 60332-1-2 (as RZ1-K), but also the bunched cables fire test of IEC 60332-3-24. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc. This cable generally has a green outersheath which is UV stable and suitable for direct exposure to sunlight. It is also available with black sheathing.

RZ1-K Cable Characteristics

	1.8/3kV RZ1-K(AS) Cable	0.6/1kV RZ1-K Cable
Voltage Rating Uo/U (Um)	1.8/3 kV	0.6/1kV
Voltage Test	Alternating Current: 6,5 kV Direct Current: 15 kV	-
Temperature Rating	-30°C to +60°C	-15°C to +90°C
Maximum conductor temperatures	90°C
Short circuit	250° C (t≤ 5s)
Minimum Bending Radius	5 x overall diameter (25≤ D≤ 50) 6x overall diameter (D>50)	5 x overall diameter

RZ1-K Cable Construction

Conductor	Class 5 flexible copper conductor
Insulation	XLPE (Cross-Linked Polyethylene)
Sheath	LSZH (Low Smoke Zero Halogen)
Sheath Colour	Green / Black

RZ1-K(AS) Cable Meaning

R	XLPE insulation
Z1	Halogen free thermoplastic Polyolefin
K	Flexible conductor
AS	the flame retardant properties of the cable

RZ1-K Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	2.5	0.7	5.2	45
1	4	0.7	5.8	61
1	6	0.7	6.35	80
1	10	0.7	7.25	120
1	16	0.7	8.3	174
1	25	0.9	9.95	258
1	35	0.9	11.15	349
1	50	1	12.75	484
1	70	1.1	14.8	676
1	95	1.1	16.9	885
1	120	1.2	18.9	1124
1	150	1.4	20.95	1393
1	185	1.6	23.9	1655
1	240	1.7	26.2	2214
1	300	1.8	28.3	2697
1	400	2	31.4	3389
1	500	2.2	37.4	4776
1	630	2.4	42.7	6276
2	1.5	0.7	8.2	94
2	2.5	0.7	9.2	122
2	4	0.7	10.3	165
2	6	0.7	11.3	216
2	10	0.7	13.2	319
2	16	0.7	16.4	503
3+E	1.5	0.7	8.6	108
3+E	2.5	0.7	9.5	144
3+E	4	0.7	10.7	198
3+E	6	0.7	12	263
3+E	10	0.7	13.8	405
3	16	0.7	17.3	638
3	25	0.9	20.9	938
3	35	0.9	23.5	1255
3	50	1	31.5	1730
3	70	1.1	35.7	2422
4+E	1.5	0.7	9.3	129
4+E	2.5	0.7	10.3	175
4+E	4	0.7	11.7	243
4+E	6	0.7	13	328
4+E	10	0.7	15.2	498
4	16	0.7	19.7	783
4	25	0.9	23.2	1168
4	35	0.9	26.2	1573
4	50	1	31.2	2178
4	70	1.1	34.8	3055
4	95	1.1	39.7	3985
4	120	1.2	44.6	5086
4	150	1.4	49.8	6294
4	185	1.6	54.9	7534
4	240	1.7	62.3	10034
5	1.5	0.7	12	150
5	2.5	0.7	13.15	204
5	4	0.7	14.5	286
5	6	0.7	16.1	387
5	10	0.7	18.1	598
5	16	0.7	21.3	931
5	25	0.9	25.4	1407
5	35	0.9	28.4	1091
5	50	1	34.3	2654

RZ1-K(AS) Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OUTER SHEATH DIAMETER mm	NOMINAL WEIGHT kg/km	MINIMUM BENDING RADIUS mm
								During installation	After installation
1	95	11.8	2	15.8	1.6	19	993	190	152
1	120	13.8	2	17.8	1.7	21.2	1216	212	170
1	150	15	2	19	1.7	22.4	1485	224	179
1	185	16.5	2	20.5	1.8	24.1	1796	241	193
1	240	19.1	2	23.1	1.9	26.9	2315	269	215
1	300	21.6	2	25.6	2	29.6	2859	294	235
1	400	26.6	2	30.6	2.1	34.8	3643	348	278

RZ1-K Cable Core Identification

3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
7 core: Black with White numbers
