CCS Cable

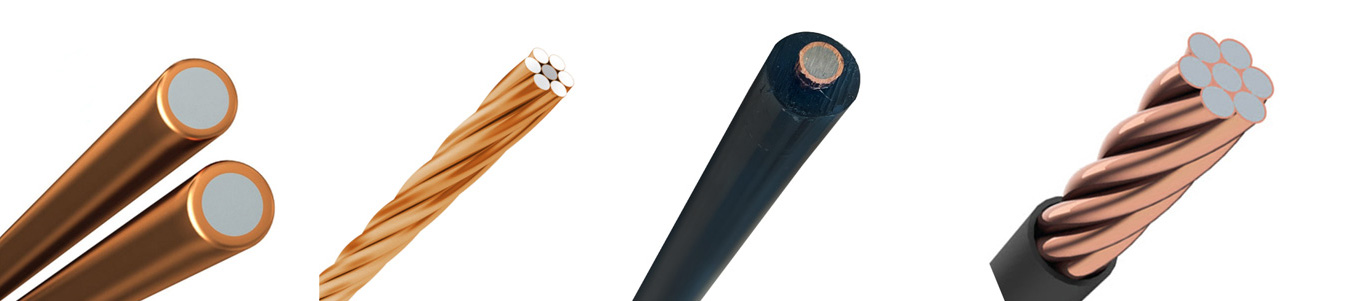

What is CCS Cable?

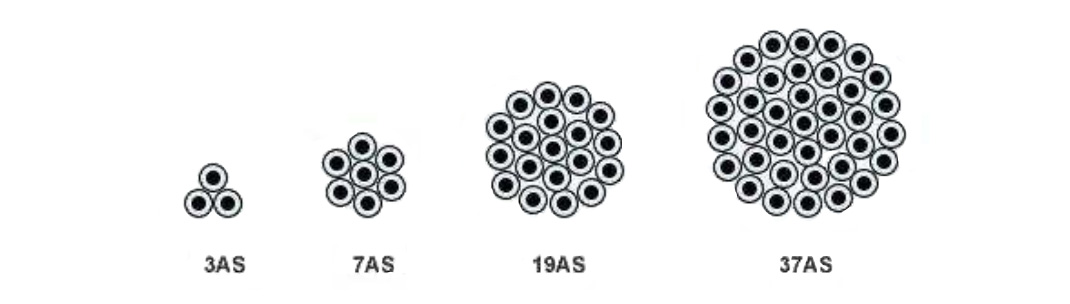

CCS Cable also called copper-clad steel cable, comprise copper-clad steel wires, available in solid or concentric stranded configurations. Utilising high-tensile steel wires with a copper cladding thickness accounting for 25% of the cross-sectional area, they deliver superior electrical conductivity, robust corrosion resistance, and thermal stability. Primarily employed within the cable industry, they combine the high mechanical strength and rigidity of steel with the corrosion resistance and conductivity of copper. Copper-clad steel wire is a composite material produced through pressure rolling, bonding copper metallurgy to a steel core.

CCS Cable Main Standards:

ASTM B227 – Standard Specification for Hard-Drawn Copperclad Steel Wire
ASTM B228 – Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors
ASTM B910 – Standard Specification for Annealed Copperclad Steel Wire

CCS Cable Specification ASTM-B228：

No./size of strands	Structure No./mm	Cross-section mm2	Rated strength kN			DC Resistance   Ω/km		Approx. weight kg/km
			Grade 40 HS	Grade 30 HS	Grade 30 EHS	Grade 40	Grade 30	Grade 30	Grade 40
3 No. 5	3/4.62	50.32	37.3	41.2	52.8	0.881	1.174	413.41	417.73
3 No.6	3/4.11	39.8	30.9	34	43.4	1.111	1.481	327.84	331.26
3 No. 7	3/3.67	31.65	25.5	28	35.3	1.401	1.867	259.39	262.66
3 No. 8	3/3.26	25.1	21.1	23	27.95	1.766	2.354	206.11	208.34
3 No. 9	3/2.91	19.9	17.1	18.9	22.8	2.227	2.969	163.55	165.19
3 No.10	3/2.59	15.78	14.3	15.6	18.5	2.808	3.744	129.62	130.99
3 No. 12	3/2.05	9.9	7.6	…	…	4.465	…	81.551	82.414
7 No. 4	7/5.19	148.1	99.3	110.3	130.9	0.3	0.4	1218.7	1231.5
7 No.5	7/4.62	117.4	82.4	91.1	109.7	0.378	0.504	966.41	976.53
7 No.6	7/4.11	93.1	68.2	75.2	91	0.477	0.636	766.25	774.29
7 No. 7	7/3.67	73.87	56.4	61.9	75.2	0.601	0.802	608.06	614.46
7 No.8	7/3.26	58.56	46.6	50.9	61.8	0.759	1.011	482.02	487.07
7 No. 9	7/2.91	46.44	38.4	41.2	50.2	0.956	1.275	382.16	386.18
7 No. 10	7/2.59	36.83	30.9	34	40.9	1.206	1.6	303.14	306.26
19 No. 5	19/4.62	318.7	223.5	247.2	297.6	0.14	0.187	2634	2660.8
19 No. 6	19/4.11	252.7	185.1	203.9	247	0.176	0.176	2087.9	2110.2
19 No. 7	19/3.67	200.4	153	167.9	204	0.222	0.297	1656.3	1674.2
19 No. 8	19/3.26	158.9	126.3	138.1	167.7	0.281	0.374	1313.6	1327.2
19 No. 9	19/2.91	12610	104.1	113.5	136.2	0.354	0.471	1041.7	1052.6

CCS Cable Why Choose Huadong

At Huadong Cable, we specialise in manufacturing high-performance insulated copper-clad steel cables designed to meet the most demanding application requirements. Our copper-clad steel cables combine the conductivity of copper with the strength of steel, delivering unparalleled durability and reliability. Available with PE or PVC sheathing, the insulation effectively resists environmental factors, making them ideal for telecommunications, power transmission, and grounding systems. As a leading manufacturer of copper-clad steel cables, Huadong Cable adheres to stringent quality standards, ensuring optimal performance and longevity for every cable.
